7. Alarm List
Alarm
No.

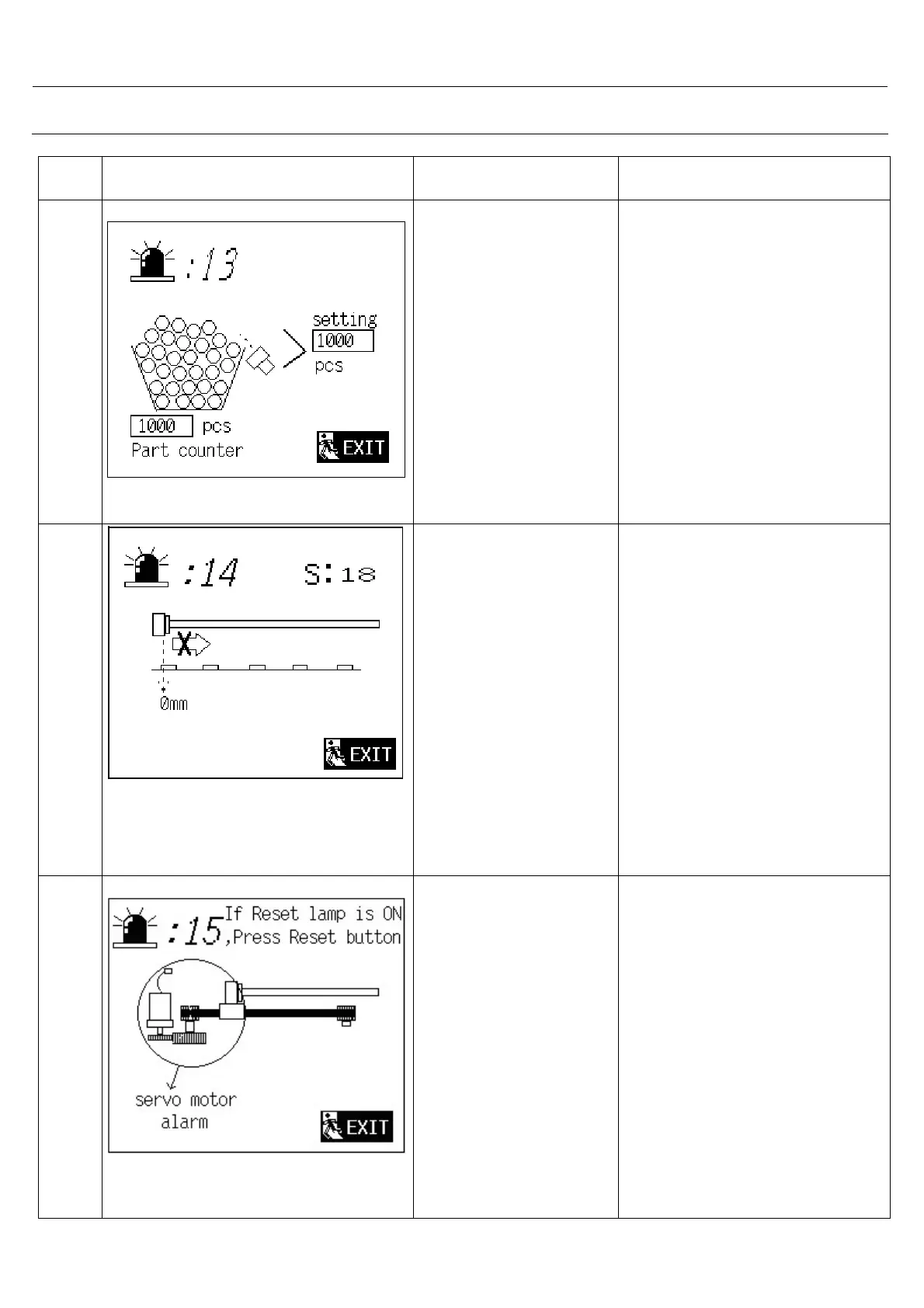

Alarm Picture Cause Action
13
Bar feeder reached part value.
Setting part value and
part counter are the
same.
(1) Set a larger value in
(3-11-3 ) Or
(2) “ off “ the piece counter in
(3-11-3 ) Or
(3) Set (2-4) piece counter to
zero.
14
Pushrod can not move in zero point.
Something keeps the
pushrod in zero point,
so it can’t go forward.
Check the locking mechanism
of pushrod.
See 11-1 Mechanism Drawing
Item8 : locking Pin (Drawing
NO : T04202-000X)
Note:
S18: happen on bar check.
S25: happen on pushrod push
to first feeding position.
S34: happen on pushing profile
bar to first feeding position.
S29: happen on feeding to
work piece position.
15
Servo motor can not move.
For barfeeder safety
circuit , when safety
circuit is open, the
servo motor will cut off
and the Reset lamp will
be ON as well, and
when safety circuit is
closed , to reconnect
the servo motor
power , press the reset
button.
-Press the reset button.
-If there is still the same
Alarm , check display message
of the servo amplifier
To Next Page
