5-15: Machine Maintenance

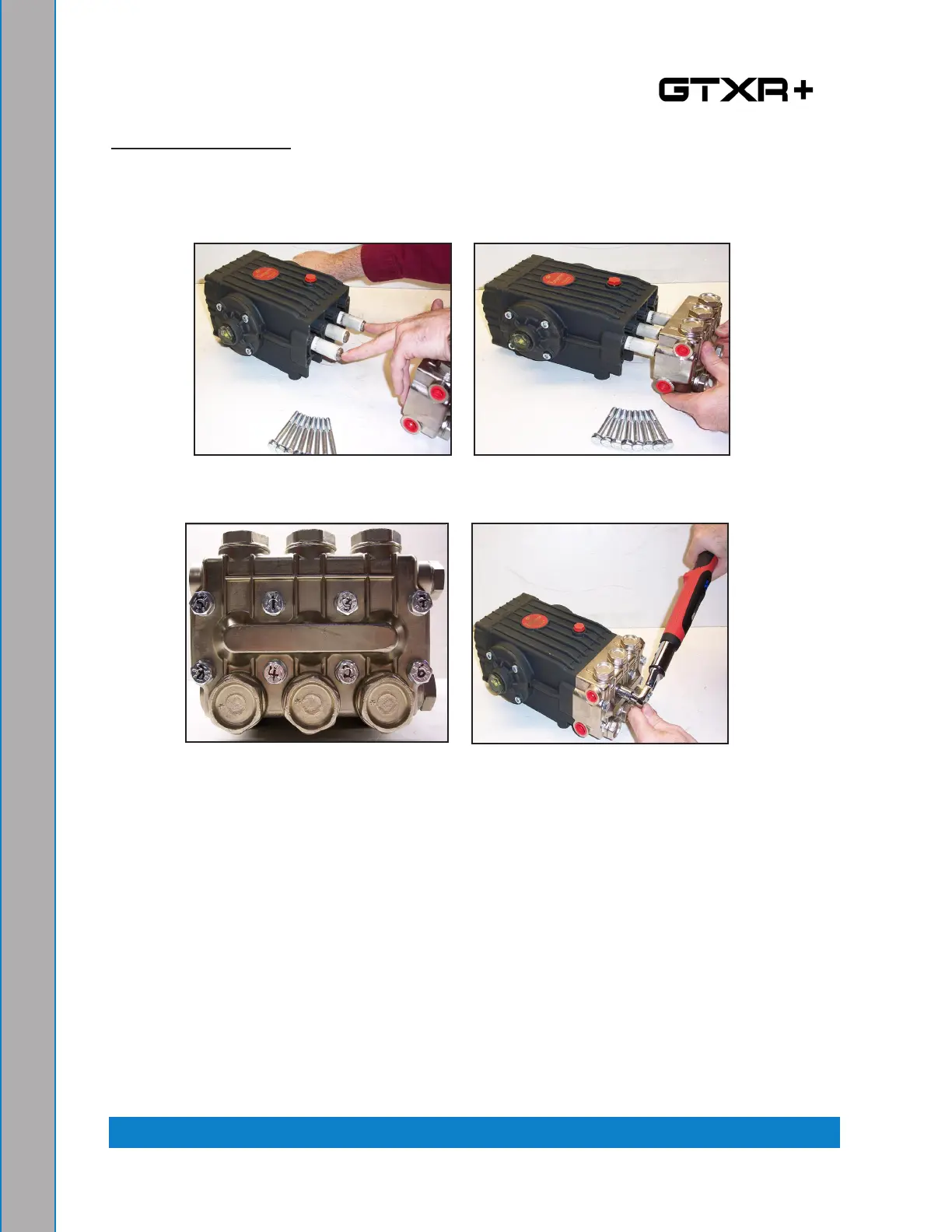

Re-Installing Manifold
1. Position the outer plungers at the same position (see Figure 5-16).
2. Re-install manifold and torque the fasteners in an “X” pattern to 50% of specication
and then retorque to 100% specication (see Figure 5-17 and Figure 5-18).
1
3
4
2
5
8
7
6
1
3
4
2
5
8
7
6
Figure 8-16. Re-install Manifold and Torque Fasteners
Figure 8-17. Torque Sequence
in “X” Pattern
Figure 8-18. Torque Bolts to
22 ft. lbs
