Machine Maintenance: 5-14
To install the intermediate retainers and the low pressure seals:
1. Insert the brass intermediate retainer into the cavity.
2. Press the new low pressure seal into the brass low pressure seal retainer and install
a new O-ring on the outside (see Figure 5-14).
3. Press the low pressure seal assembly into the cavity (see Figure 5-15).

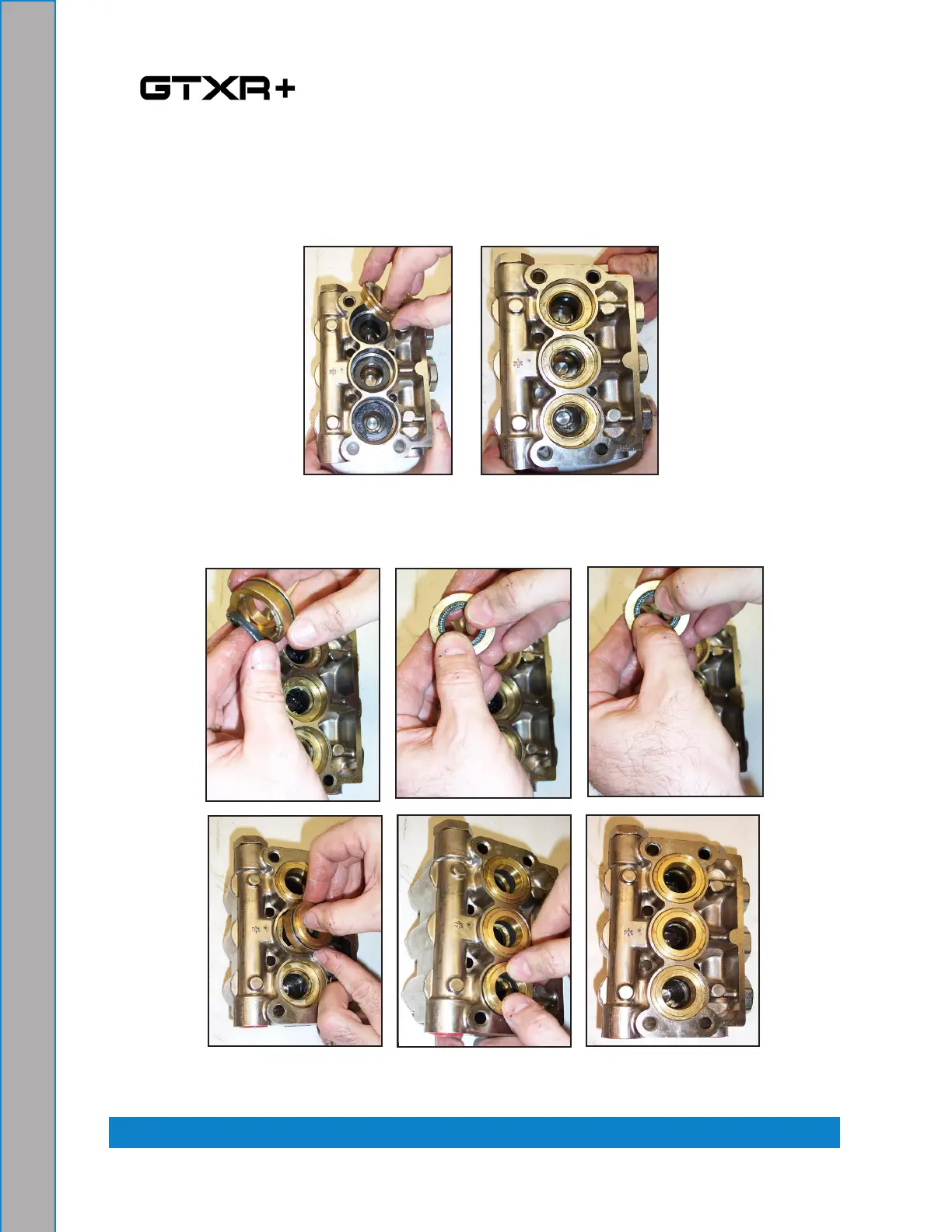

Figure 8-14. Install Retainers into Cavities
Figure 8-15. Press Low Pressure Seal Assembly into Cavity
