Page 1-64 MAXX 450D/470/Diesel
HydraMaster Corporation

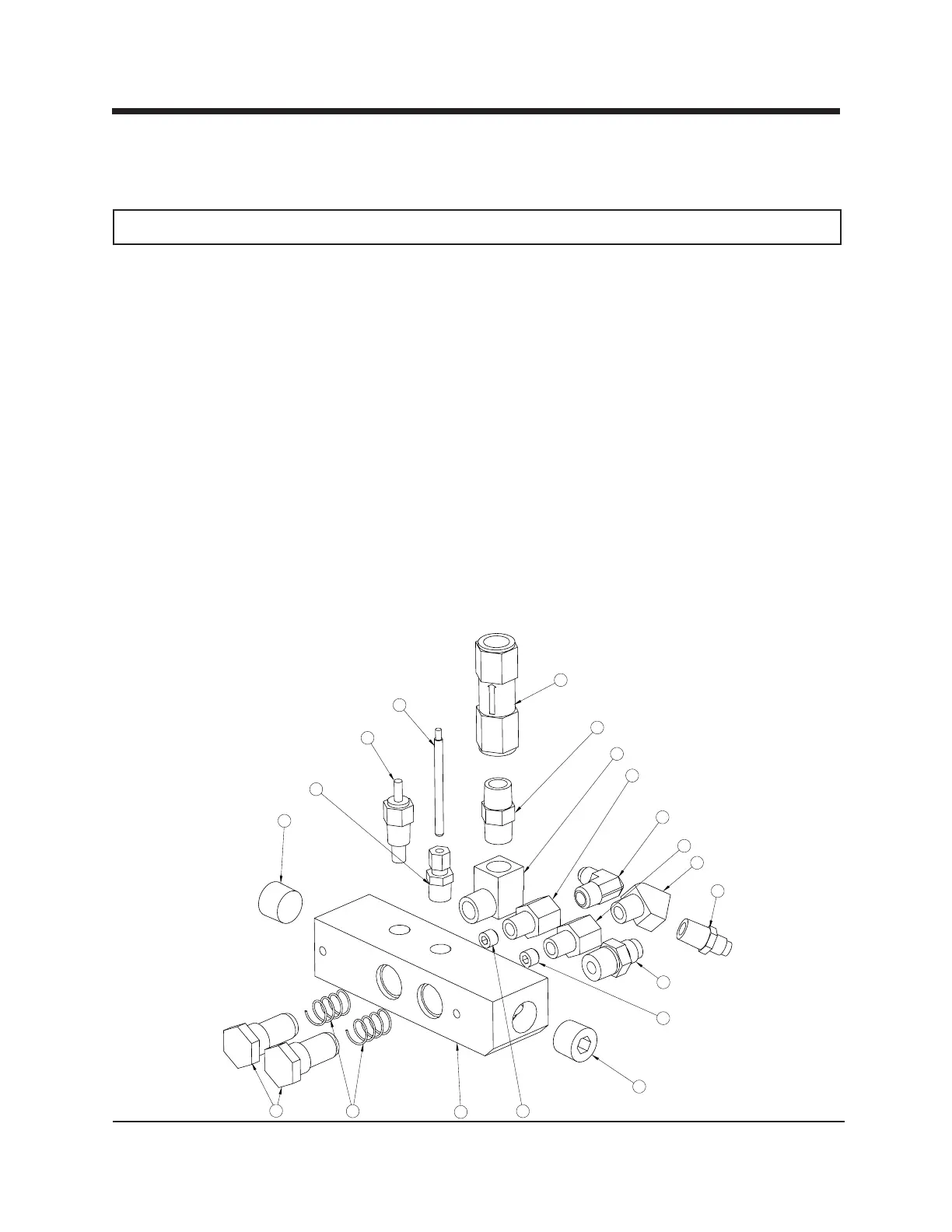

Figure 1-29 Hi-PSI Manifold Assembly
C-4565 Rev E
Exhaust Assembly Parts List
Item Part Number Description Qty
31 000-041-387 Cover, Exhaust - Maxx 450D/470D 1
32 000-041-390 Cover, Exhaust Side - Maxx 450D/470D 1
33 000-052-507 Nipple, 3/8" NPT x 9/16"-18 37° JIC 2
34 000-141-033 Rod, Heat Exchanger Strap - Retainer 2
35 000-033-122 Clamp, Exhaust Support Mounting - Maxx 450D/470D 1
36 000-143-092 Screw, 5/16"-18UNC x 2.25" Lg. Hex Head 1
37 000-052-711 Bushing, 3/8" Inverted Flair 1
38 000-174-019 Washer, 1/4" Lock 7
39 000-143-001 Screw, 1/4"-20UNC x 0.75" Lg. Hex Head 7
40 000-105-181 Flange, Exhaust Donut 1
41 000-125-179 Tube, Air Pump Spacer - Maxx 450/470 1
10
4
4
9
8
5
2
3
15
12
1
7
6
16
14
13
17
11
12
