Hypertherm Command THC User Manual

HPR SETUP
CommandTHC for X-Y Table Instruction Manual 3i-7
Ohmic Contact Wire
Shield cap with IHS tab
P/N 220173

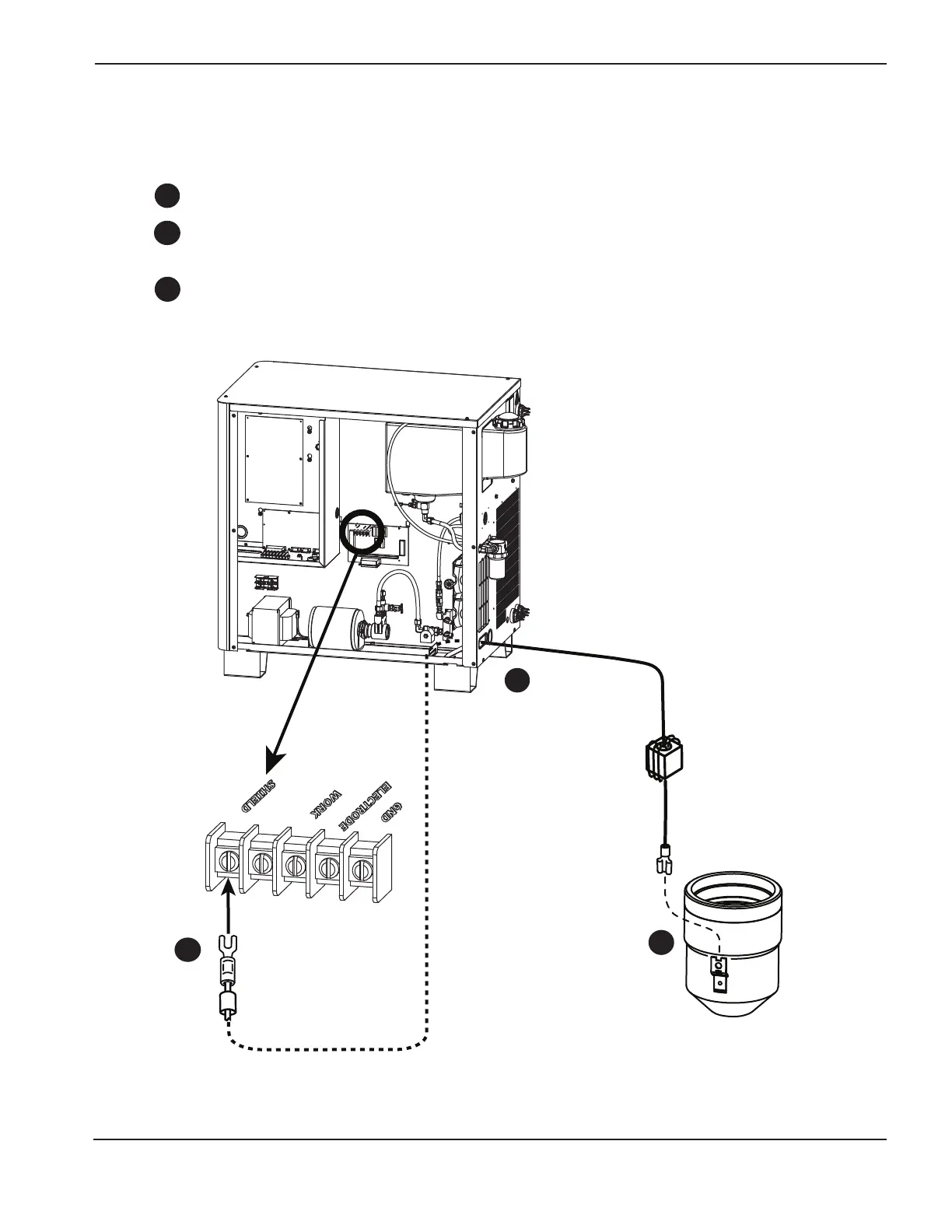

Figure 3i-8 Ohmic contact wire connection
Ohmic contact wire
See Figure 3i-8.
Install the ohmic contact wire through the strain relief of the power supply.
Install appropriate size fork terminal on the wire end and attach the wire to the terminal labeled SHIELD
on the plasma interface PC board.
Install the other end of the ohmic contact wire to the IHS tab on the torch retaining cap.
C
B
A
A
B
C
11
