HSD130 SETUP
CommandTHC for X-Y Table Instruction Manual 3j-5
11
Ohmic Contact Wire
Shield Cap with IHS Tab
P/N 220578

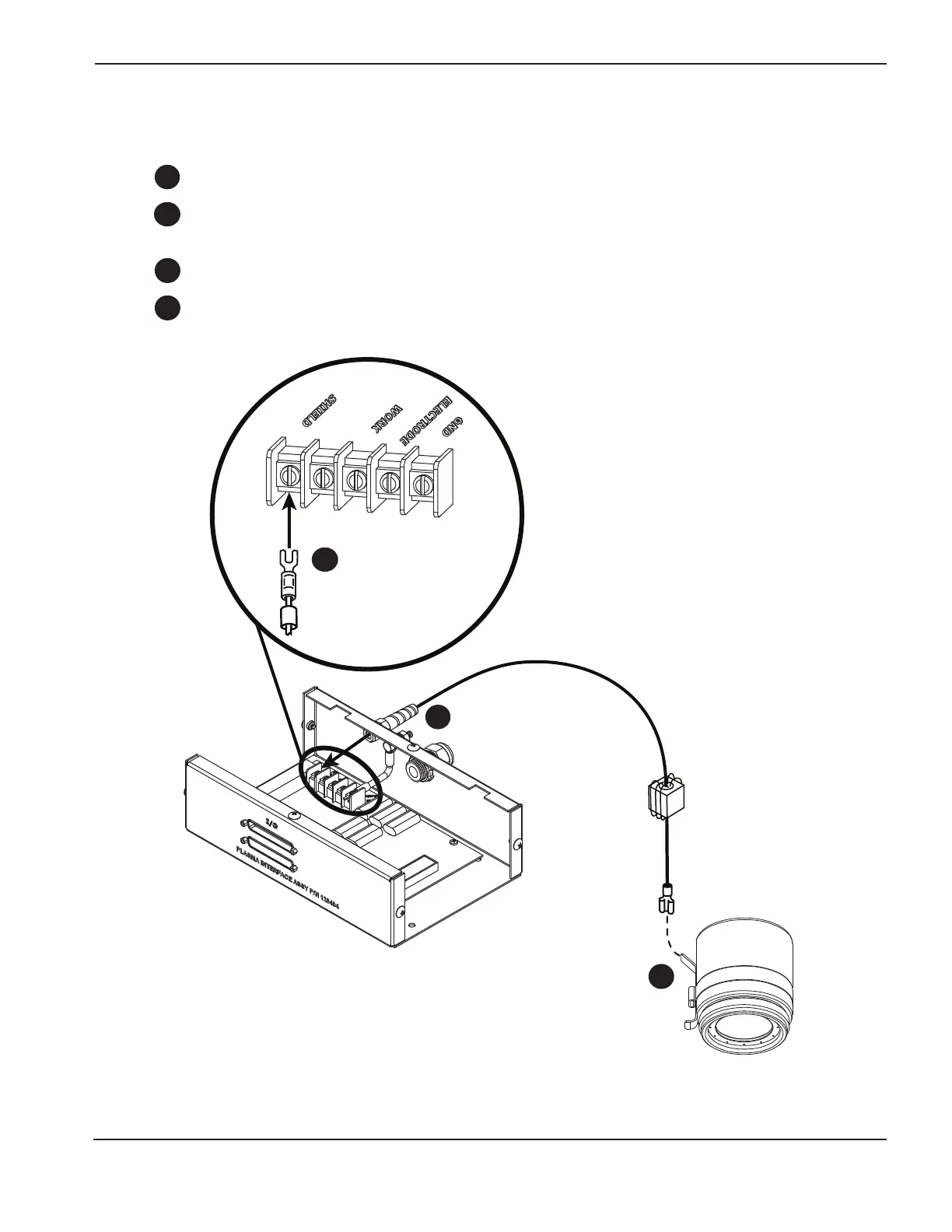

Ohmic contact wire
Install the ohmic contact wire through the strain relief of the plasma interface assembly.
Install the appropriate size fork terminal on the wire end and attach the wire to the terminal labeled
SHIELD on the plasma interface PC board.
Install the other end of the ohmic contact wire to the IHS tab on the torch retaining cap.
Reinstall the cover onto the plasma interface assembly.
D
C
B
A
A
B
C
