HD3070 SETUP
CommandTHC for X-Y Table Instruction Manual 3a-5
5

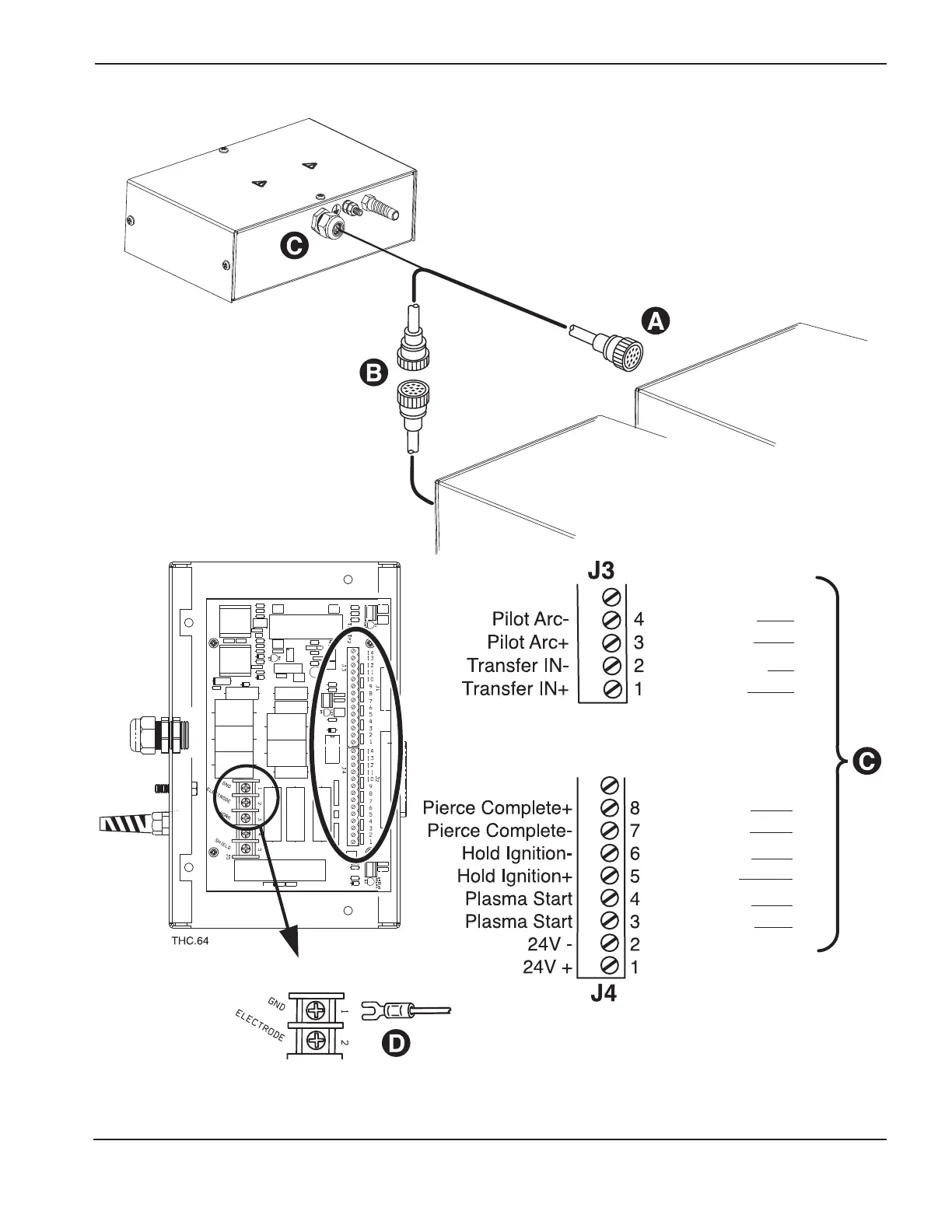

Figure 3a-2 HD3070 Power supply interface cable connections
Plasma interface
assembly
Plasma Interface assembly
Power supply
CNC
Green wire
Black wire
Orange wire
Black wire
Black wire
White wire
Black wire
Red wire
Black wire
Yellow wire
