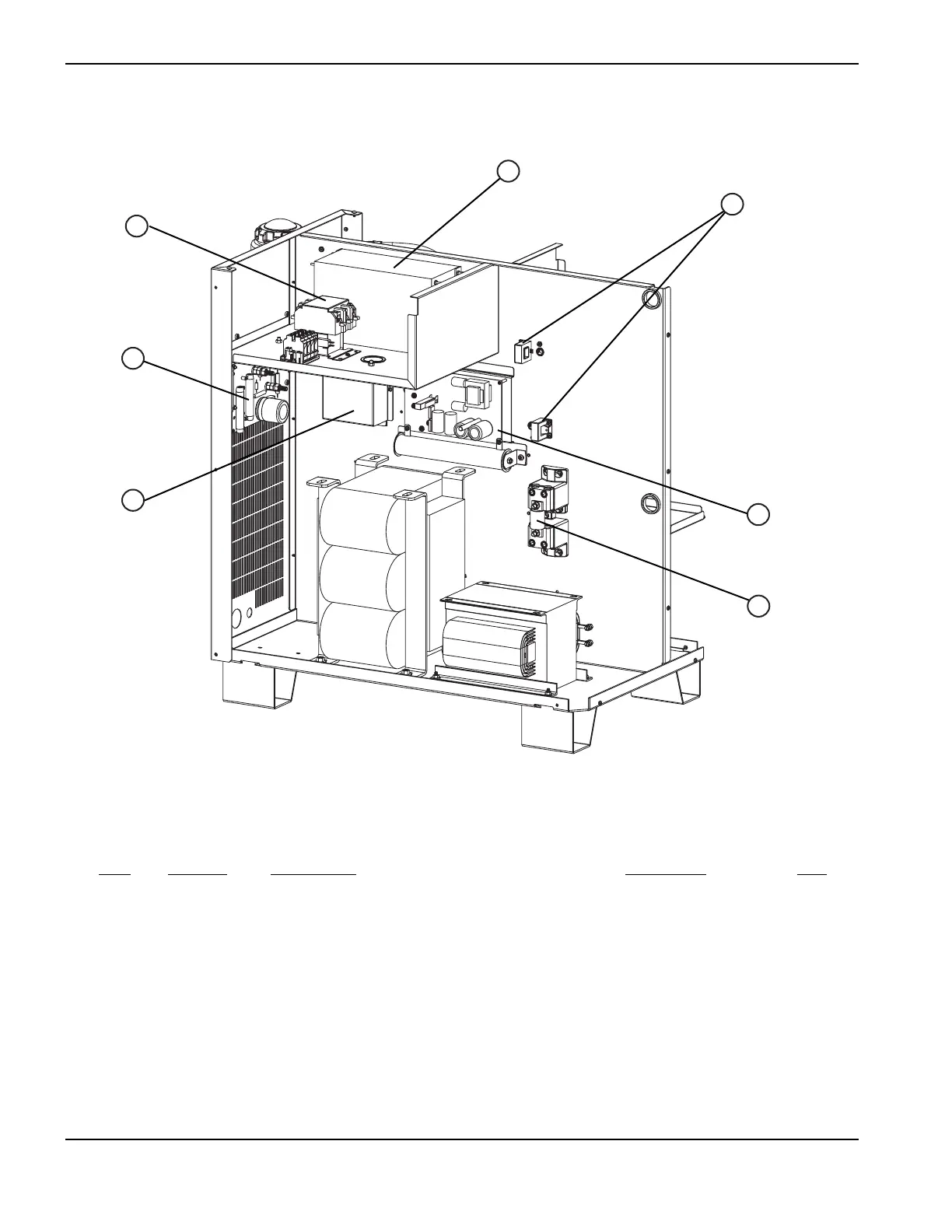

PARTS LIST
0
6-4 HPR130 Manual Gas Instruction Manual
Power supply
Part
Item Number Description Designator Qty.
1 003149 Relay: pilot arc, 120 VAC CR1 1
2 041837 PCB: I/O 1
3 003139 Contactor CON1 1
4 109036* EMI filter: 60 amp, 440 VAC 3PH 1
5 109004 Current sensor: hall 100 amp, 4 volt 2
6 129791 Start circuit assembly PCB1 1
7 108263 Fuse: 150 amp, 250 volt F3 1
* 400 volt power supply only
