Hypertherm HPR130 Manual Gas User Manual

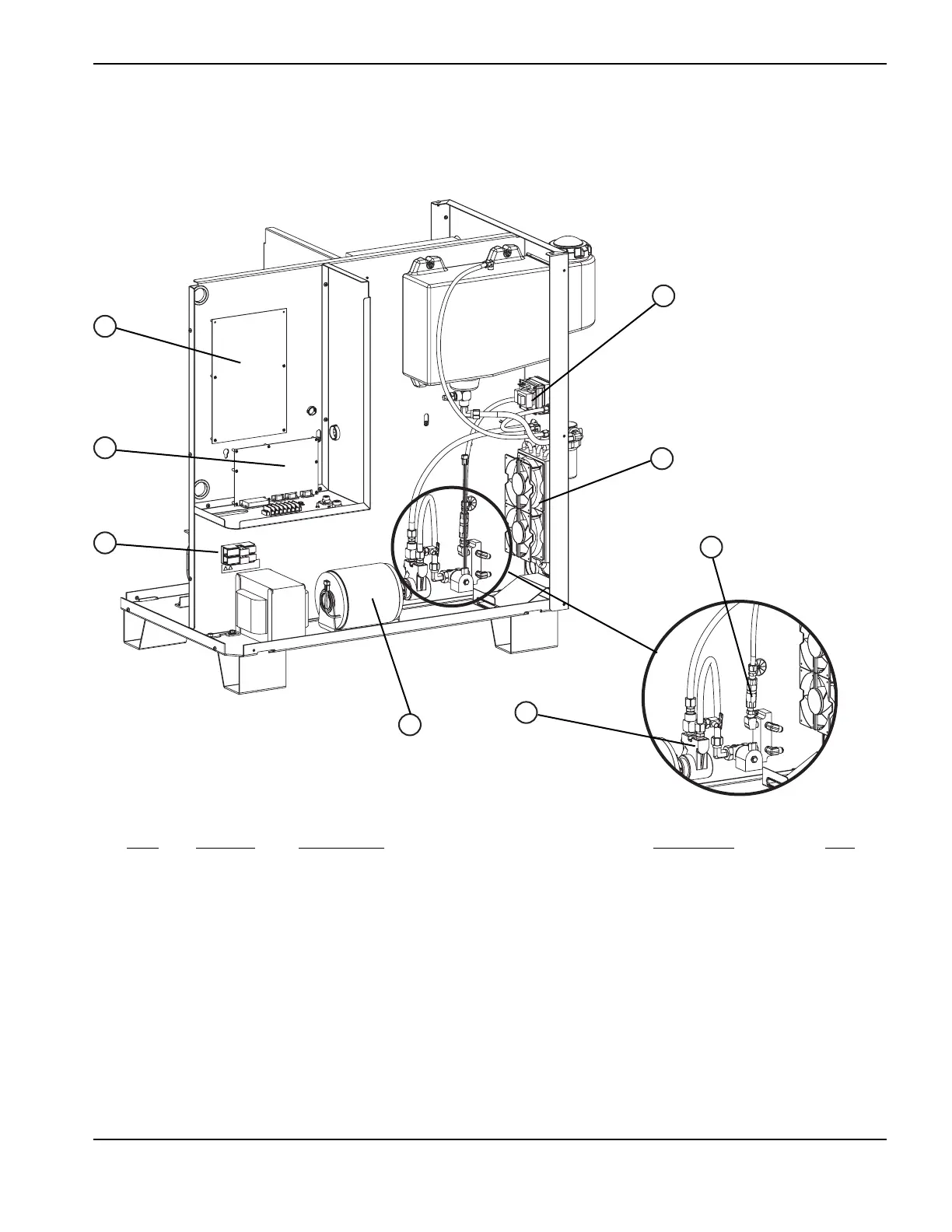

PARTS LIST
5
HPR130 Manual Gas Instruction Manual 6-5
Part
Item Number Description Designator Qty.
1 008551* Fuse: 7.5 amp, 600 volt F1, F2 2
008709** Fuse: 20 amp, 500 volt F1, F2 2
2 041909 Control PCB PCB3 1
3 041802 Power distribution PCB PCB2 1
4 129793 Flow switch assembly FLS 1
5 027978 Heat exchanger assembly 1
027185 4" fan 2
6 006075 Check valve: 1/4" FPT 1
129995 Solenoid valve assembly CLT SOL 1
7 129994 Pump assembly: 70 gpm, 200 psi 1
8 031113 Motor: 1/3 HP, 240 volt, 50-60 HZ 1
* 400, 440, 480 and 600 volt power supplies
** 200/208 and 240 volt power supplies
Power supply
1
2
3
4
5
6
7
8
