OPERATION
4-20 HySpeed HT2000LHF Instruction Manual
7
Shield Arc Approx.
Material
Plasma Gas Flow Rate %
Gas (Air) Torch-to-work Initial Torch Voltage Motion
Thickness Preflow Cutflow Pressure Distance Piercing Height Setting Travel Speed Delay Time
(inches) (mm) (N
2
%) (N
2
%) (psi) (inches) (mm) (inches) (mm) (volts) (ipm) (mm/min.) (sec)
Shield Arc Approx.
Material
Plasma Gas Flow Rate %
Gas (Air) Torch-to-work Initial Torch Voltage Motion
Thickness Preflow Cutflow Pressure Distance Piercing Height Setting Travel Speed Delay Time
(inches) (mm) (N
2
%) (N
2
%) (psi) (inches) (mm) (inches) (mm) (volts) (ipm) (mm/min.) (sec)
3/16 5 50 60 60 1/8 3 1/4 5 125 135 3430
1/4 6 (66.4 (79.6 (270 1/8 3 1/4 6 130 120 3050 0.5
3/8 10 SCFH) SCFH) SCFH) 1/8 3 1/4 6 130 100 2540 1.0
1/2 12 1/8 3 1/4 6 135 75 1900 2.0
5/8 15 .157 4 .314 8 140 60 1520 2.0
3/4 20 3/16 5 3/8 10 140 45 1140 2.5
7/8 22 1/4 6 1/2 12 145 35 890 2.5
1 25 1/4 6 150 20 510
1-1/4 32 ` 1/4 6 160 15 380
1-1/2 38 1/4 6 160 10 250
Stainless Steel
200 amps • N
2
Plasma / Air Shield
This gas combination is used when cut edge quality, surface nitriding and surface oxidation of alloying elements
are less important. Electrode life is extended when this combination is used.
Notes: Set nitrogen plasma gas inlet pressure to 120 psi (8.3 bar)
Set air shield gas inlet pressure to 90 psi (6.2 bar)
Production cutting above 7/8" (22 mm) not recommended
Above Water
3/16 5 50 60 70 1/8 3 1/4 6 125 130 3250
1/4 6 (66.4 (79.6 (280 1/8 3 1/4 6 130 110 2750 0.5
3/8 10 SCFH) SCFH) SCFH) 1/8 3 1/4 6 135 85 2160 1.0
1/2 12 1/8 3 1/4 6 140 60 1520 2.0
5/8 15 .157 4 .314 8 145 45 1140 2.0
3/4 20 3/16 5 3/8 10 145 30 800 2.5
3" Under Water

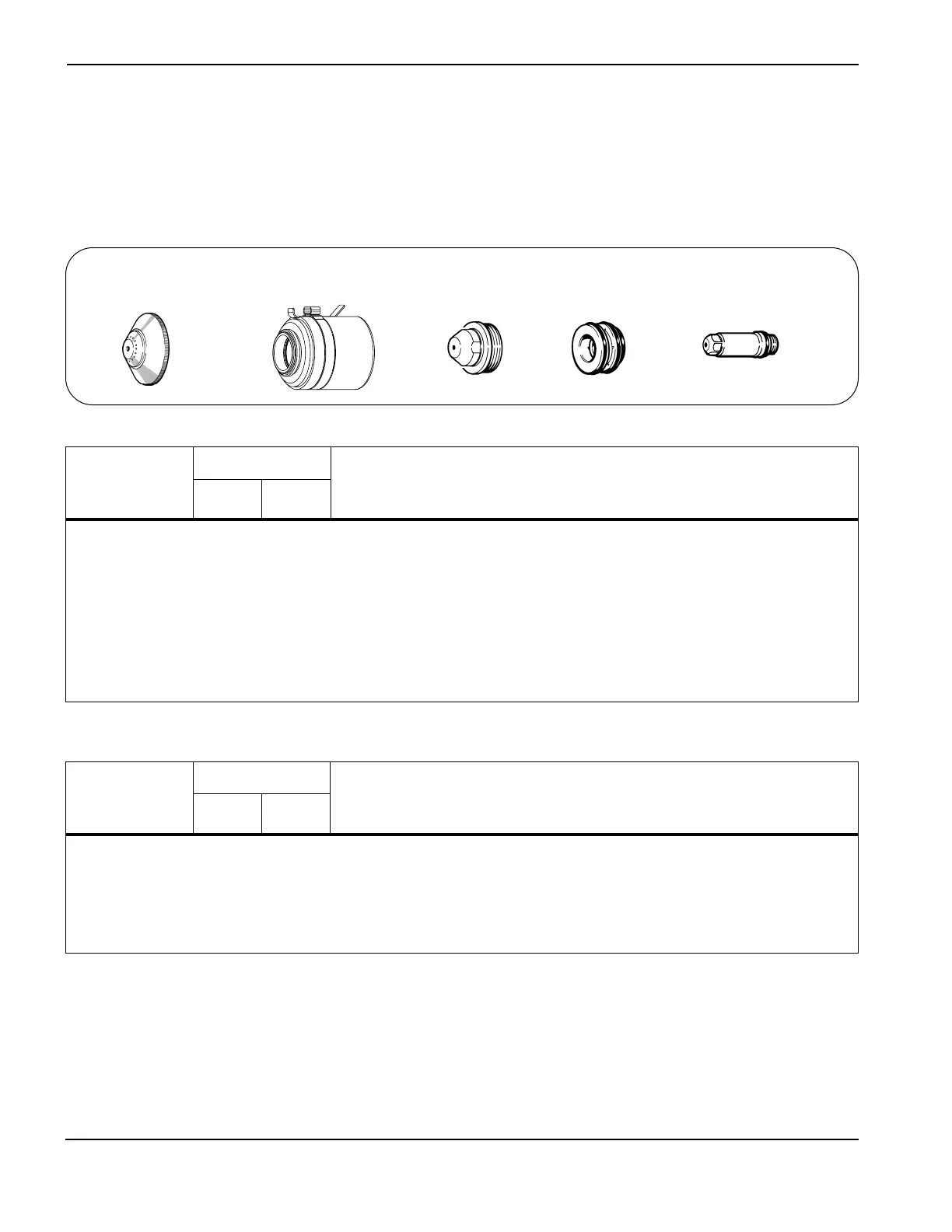

020424
Shield
120837
Retaining cap
020608
Nozzle
020607
Swirl ring
020415
Electrode
