Hypertherm Powermax45 XP Field Service Bulletin

Machine Interface Receptacle with Voltage Divider Board
Powermax45 XP Field Service Bulletin 809940 9
Install the machine interface receptacle with voltage divider PCB

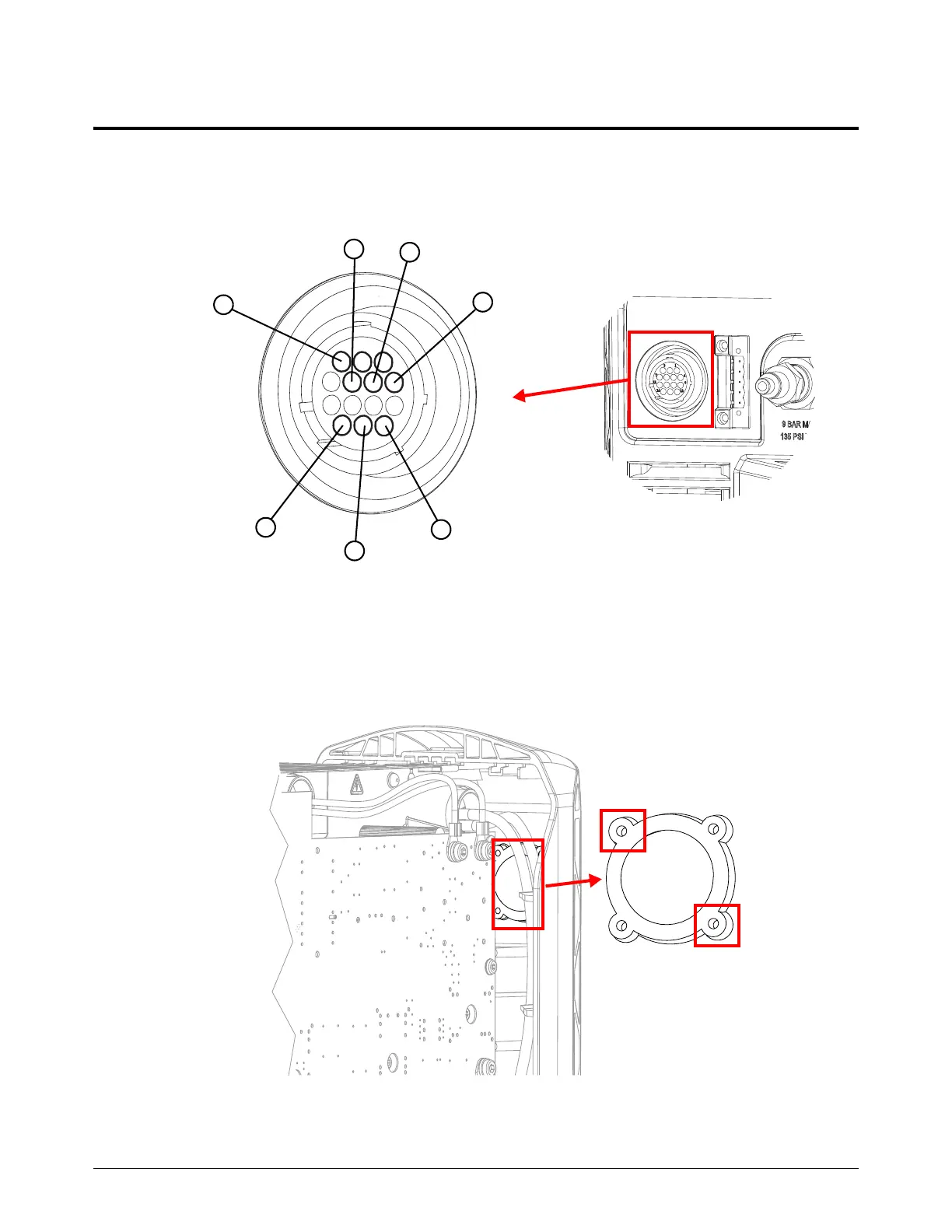

1. Put the machine interface receptacle in the opening in the rear panel. Make sure that the green
and yellow ground wire is at the bottom of the opening.

Pin 1 and Pin 2 are wired but not used.
2. Put 2 screws in opposite corners of the machine interface receptacle. Tighten the screws to
1.1 N·m (10 in·lb).
Plasma
start
3
Arc transfer
14
13
12
Arc transfer
6
5
4
Arc voltage (+) Arc voltage (-)
Plasma
start
Ground

Hypertherm Powermax45 XP Specifications

General

Output Current	10-45 A
Gas Supply	Clean, dry, oil-free air or nitrogen
Torch Style	Handheld or mechanized
Input Voltage	50/60 Hz
Cutting Thickness	12 mm (1/2")
Cutting Capacity	16 mm (5/8 in)
Recommended Gas Inlet Flow Rate/Pressure	6.2 bar
