www.hysecurity.com © 2019 Power MX3630-01 Rev. J 27
UPS Backup Power Options
If you plan to use back up power options, additional site considerations are needed including conduit to house
the hydraulic hoses and electrical wiring. You need a 2-inch (5 cm) diameter conduit for hydraulic hoses and a
¾-inch (19 mm) conduit for electrical wiring. Mounting locations such as pad mount or wall mount also need to
be determined. See site planning overview in the installation instructions.
Supplemental manuals, available online, describe the installation overview, wiring and conduit considerations.

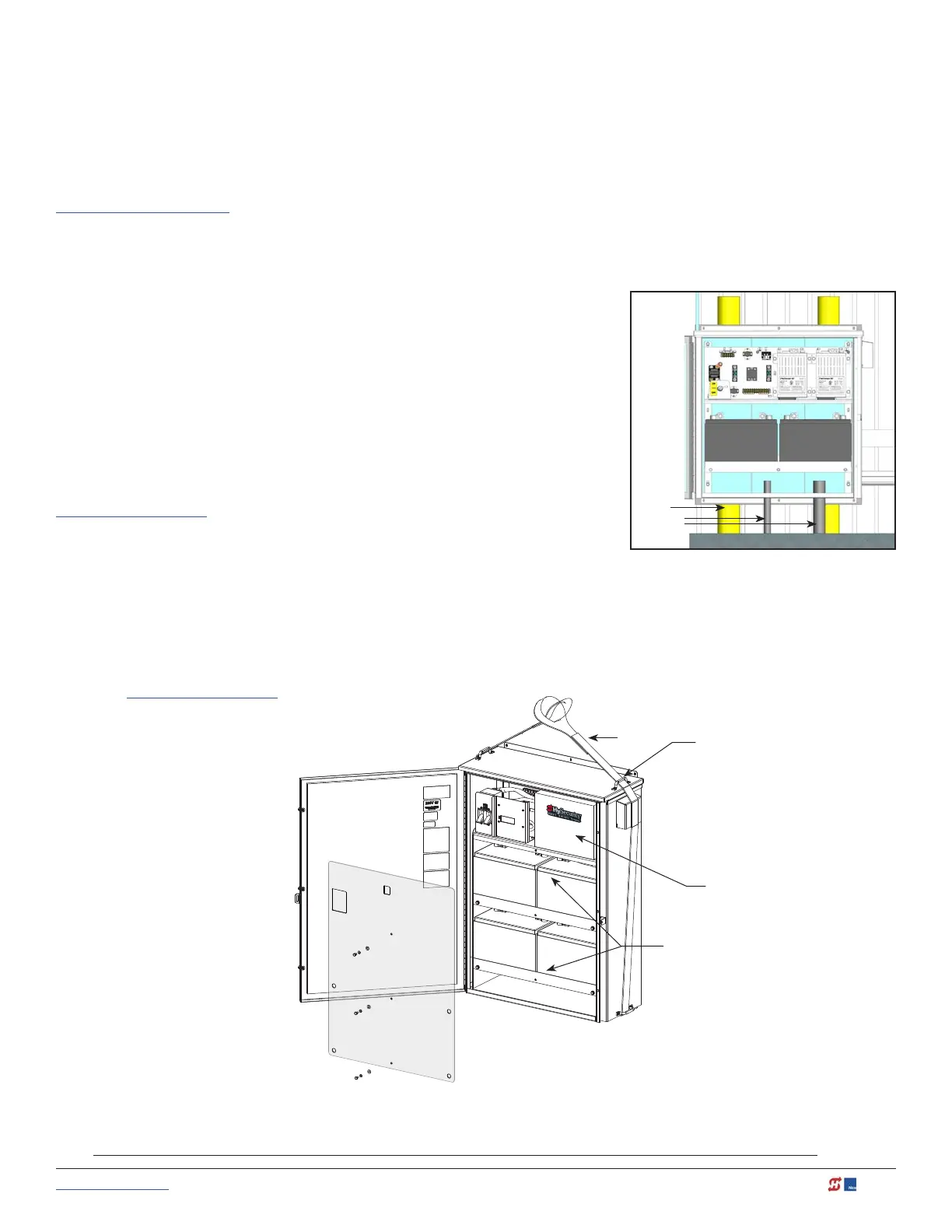

DC Power Supply (UPS) Connections
If you have a gate operator with a DC Power Supply unit, you will need to
connect the primary AC input power to the DC Power Supply.
Additional ¾-inch (19 mm) conduit is needed for electrical wiring
interconnections between the gate operator and DC Power Supply
Cabinet. AC input power is connected to the electrical components in
the chassis, and additional wiring is run through conduit to the DC Power
Supply Cabinet.
System features are covered in the DC Power Supply Installation
Instructions supplement shipped with the product and available online at
www.hysecurity.com.
Posts
Conduit
AC Power Supply with HyInverter AC
Gate operators equipped with the AC Power Supply with HyInverter AC option are powered by four 12-Volt,
110Ah DC batteries which, when AC power loss occurs, maintain a true Uninterrupted Power Supply (UPS)
system. When the local AC power fails, the UPS back up system continues to move the gate. System features
are covered in the HyInverterAC Installation and Reference Manual shipped with the product and available
online at www.hysecurity.com.
Internal & external wiring not shown.
Drawing is not to scale
Four 12V, 110Ah AGM
batteries
Footman
Loops (2x)
Straps
HyInverter AC
NOTICE: The AC Power Supply with HyInverter AC option is intended for single phase, 1 hp, gate operators and
single phase, 2 hp, gate operators that use Variable Speed Drives (VFD).
