HySecurity SlideDriver 15 User Manual

66 MX3630-01 Rev. J SlideDriver/SlideDriver 50VF Series © 2019 www.hysecurity.com
Setting the Close Timer
The Close Timer assigns how many seconds will pass before the gate operator initiates closure of a fully
opened gate after all open commands and reversing sensor inputs have ceased and loops cleared. It is
recommended that every gate operator have the close timer set to a specic number of seconds (for example,
5 seconds) unless a hard-wired closing device is connected to the gate operator, such as a “hold to close”
push button station.
To adjust the time (1 to 99 seconds) it takes before
the operator initiates gate closure, take the following
steps:
1. At a gate status display, press the Menu button
twice. This accesses the User Menu and the
Close Timer display appears.
NOTE: If you want gate personnel to operate the gate
with the Hold to Close feature found in some push
button stations, then set the Hold to Close menu item to
1. When the Hold to Close menu item is active
(set to 1), the Close Timer menu item is unavailable.
2. Use the Select, and then Next or Previous
buttons to navigate and change the number
of seconds appearing on the display. Refer to
Menu Mode Navigation on page 53.
3. To exit the User Menu, press the Menu
button. The gate status appears in the display
indicating you have returned to Run Mode.
STOP BUTTON
OPEN BUTTON
CLOSE BUTTON
REMOTE OPEN AND
RADIO CONTROL
OPEN/CLOSE
1
OPEN PARTIAL
INTERLOCK OPEN
TIME CLOCK OPEN
FREE EXIT DETECTOR
DISABLE EXIT DETECTOR
DISABLE CLOSE TIMER
INSIDE OBSTRUCTION
VEHICLE DETECTOR
OUTSIDE OBSTRUCTION
VEHICLE DETECTOR
SHADOW/RESET
VEHICLE DETECTOR
SENSOR 1
SENSOR
COM
DO NOT USE
SENSOR 2
DO NOT USE
SENSOR 3
DO NOT USE
CHARGER
AC LOSS
LOCK INTERLOCK
EMERG CLOSE
FIRE DEPT OPEN
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
20
21
22
23
24

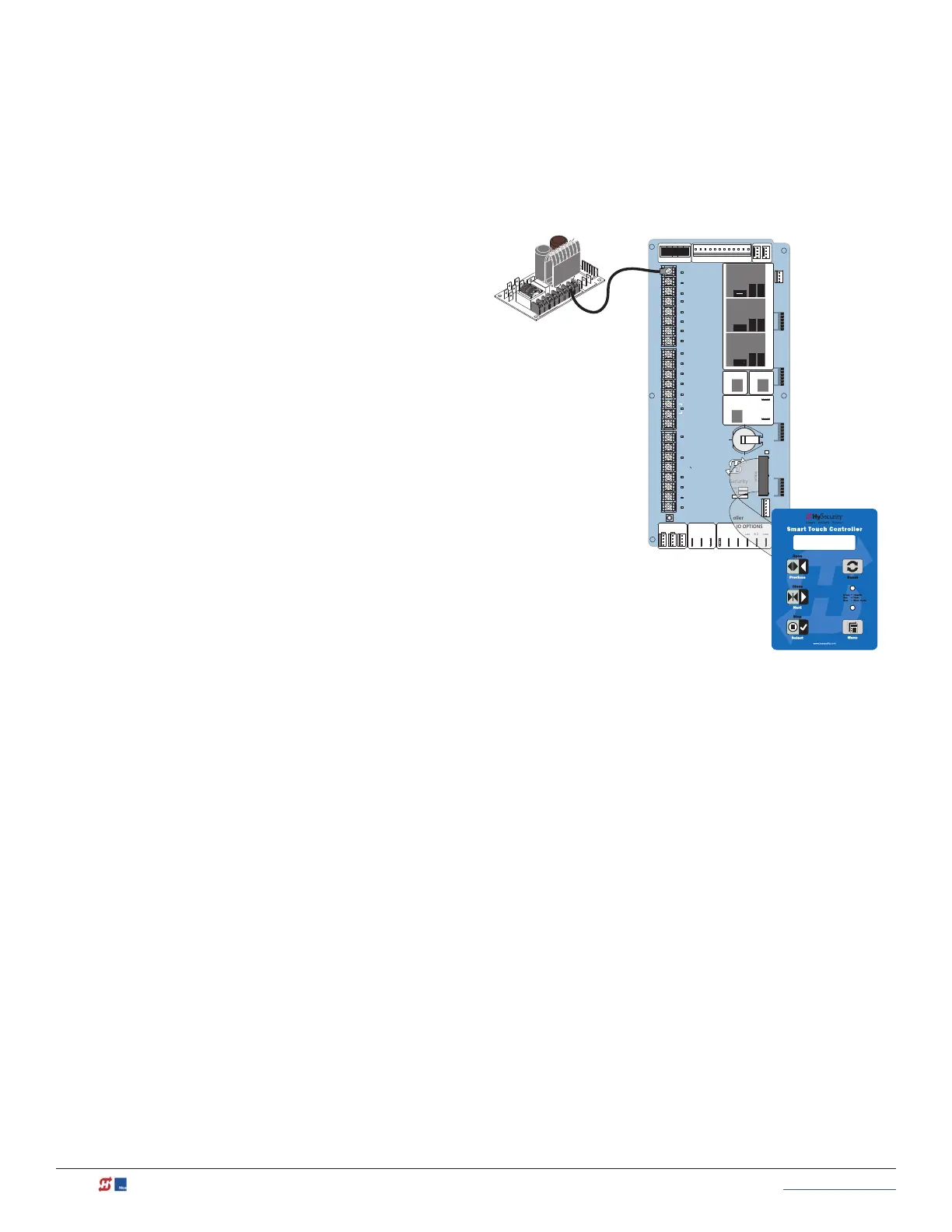

Smart Touch Controller
LIMIT DUAL GATE
RADIO OPTIONS
DRIVE
POWER
RS485
MOTOR USER 1
USER 2
USER 3
VEHICLE DETECTORVEHICLE DETECTORVEHICLE DETECTOR
STOP/BUZZER
FREE EXIT
INSIDE OBSTR
OUTSIDE OBSTR
SHADOW RESET
WIEGAND
HySecurity
COM
NO
MX000585
VERSION
S/N
RS232
DISPLAY
VEHICLE DETECTOR
COM COMA B
RPM
COMOPEN
S 1
+24V +24V
STATU S
LED
2
4
V
A
C
A
c
ce
ss
o
ry
p
ower
+
2
4
V
D
C
COMM
ON
CT 10 (ON)
CLOSE TIMER
