Disassembly and Reassembly
B9
4

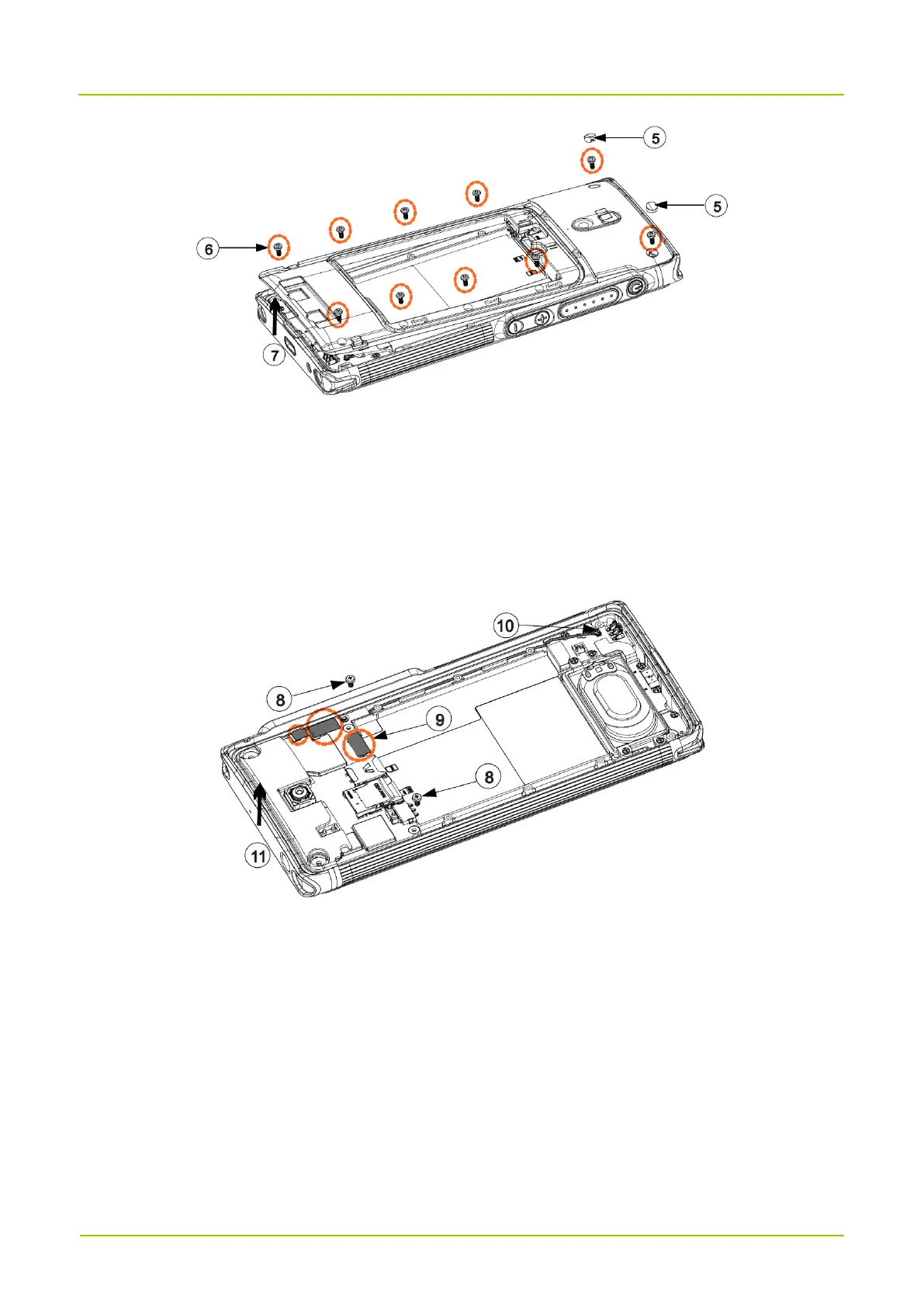

3. Disassemble the main board kit.
a. Use a Phillips screwdriver to remove the two screws on the main board
○
8 .
b. Remove the three FPC connectors (LCM FPC, key FPC, and main-deputy board FPC)
○
9 .
c. Remove the RF cable connector and RF cable
○
10 .
d. Remove the main board
○
11 .
4. Disassemble the speaker kit.
a. Remove the connector on the Type-C adapter board
○
12 .
b. Use a Phillips screwdriver to remove the four screws on the speaker bracket
○
13 .
c. Remove the speaker connector
○
14 .
d. Remove the speaker module
○
15 .
