5. Appendix
281

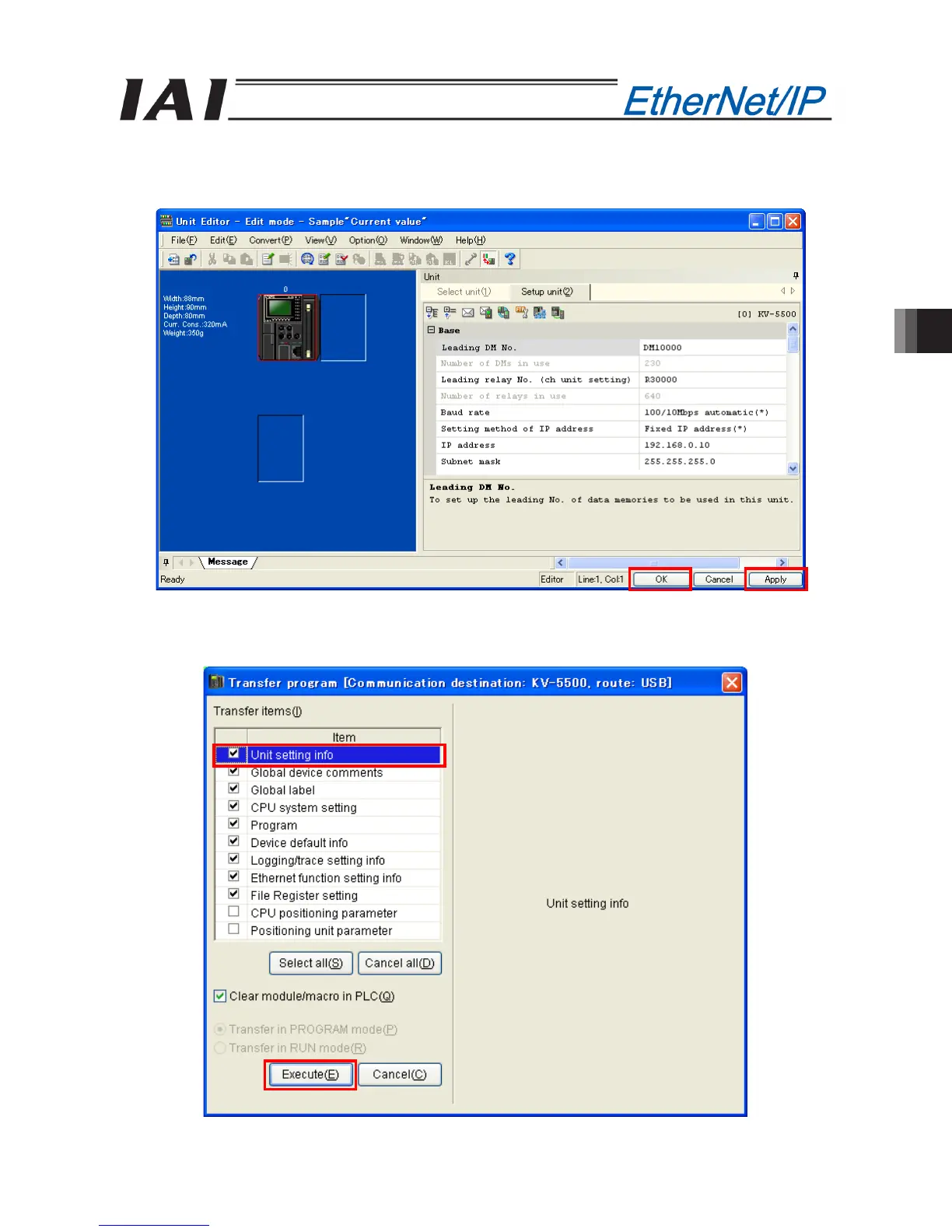

[10] Click the “Apply” button in the bottom right-hand corner of the “Unit Editor” to update the EtherNet/IP setting
information. Next, click the OK button to close the “Unit Editor.” Next, you must transfer the “Unit Settings”
to the PLC to reflect the settings you have just made.
[11] From the KV-STUDIO menu, select “Monitor/Simulator” and then select “Transfer to PLC.” Click “Execute”
after confirming that the “Unit Setting Information” check box is selected under Transfer Items.
To Next Page
