2. Wiring
Fieldbus Communication
49
RCP6
S
[2] Connection Cable
■ Connection among Gateway Unit, Hub Unit and RCP6S
In order to operate the RCP6S actuator with each fieldbus, it is necessary to connect it to the
gateway unit or the hub unit. Use RCP6S connection cable in case of connecting to either unit.
Also, use the gateway – hub connection cable to connect the hub unit to the gateway unit.
There is an extension cable prepared for both cables
In below, shows the model codes of and the figures of the cables.

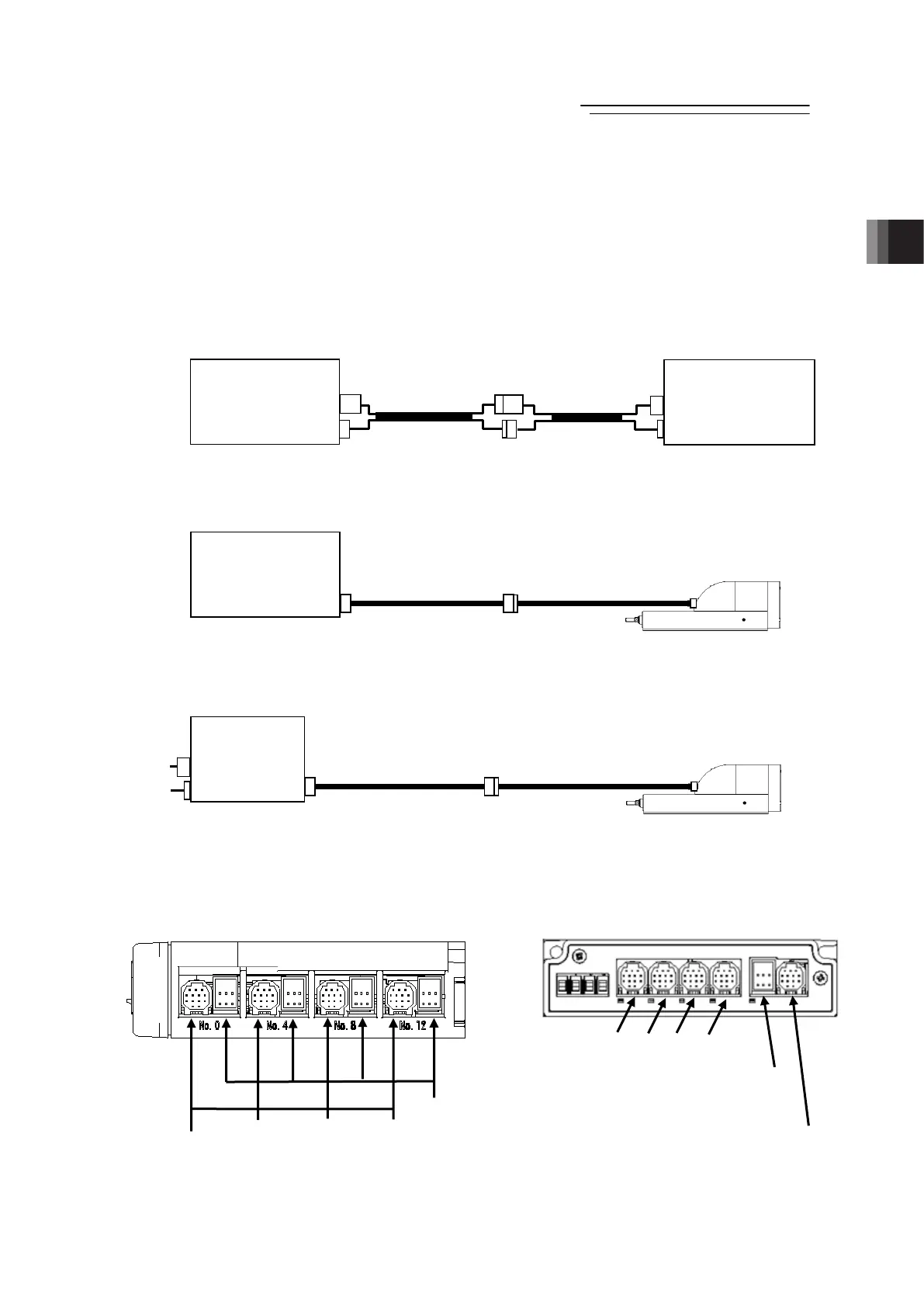

[A] Connection to RCP6S Gateway Unit and Hub Unit
* Extension Cable is utilize these holes if necessary.
[B] Connection to RCP6S Gateway Unit and RCP6S
* Extension Cable is utilize these holes if necessary.
[C] Connection to RCP6S Hub unit and RCP6S
* Extension Cable is utilize these holes if necessary.
Gateway Unit (Bottom surface) Hub Unit (Front surface)
RCP6S Connector
Connected unit: RCP6S actuator
Gateway Unit
Axis Power Supply Conecto
r
Axis Control Conector
RCP6S Actuator
Hub Unit
Hub Power Supply Conector
Hub Control Conector
Gateway Unit
Axis Power Supply Conecto
r
Axis Control Conector
1) GW-hub
Connection
Cable
2) Extension
Cable
RCP6S Actuator
4) Extension
Cable
3) RCP6S
Connection Cable
4) Extension
Cable
3) RCP6S
Connection Cable
Hub Power
Supply Connector
Connected unit: Gateway unit
Axis Power Supply
Connector
Connected unit: Hub unit
Axis Control Connector
Connected unit: Hub unit (Hub unit used)
Connected unit: RCP6S actuator (Hub unit not used)
Hub Control Connector
Connected unit: Gateway unit
Hub Unit
RCP6S
Connector
ME0349-4B
