IAI RCON-LC - External Dimensions

Chapter  pecications for unit
2.2 Extension unit (PIO/SIO/SCON extension unit, PIO unit)
ME0416-1A 2-22
2.2.7 External dimensions
[PIO/SIO/SCON extension unit] RCON-EXT-NP/PN-*
[PIO unit] RCON-NP/PN-*
The appearance dimensions for PIO/SIO/SCON Extension Unit and PIO Unit are the same as
those for SCON Extension Unit.
Item Specifications
External dimensions W22.6mm × H115mm × D95
Mass
Approx. 110g (PIO/SIO/SCON extension unit)
Approx. 105g (PIO unit)

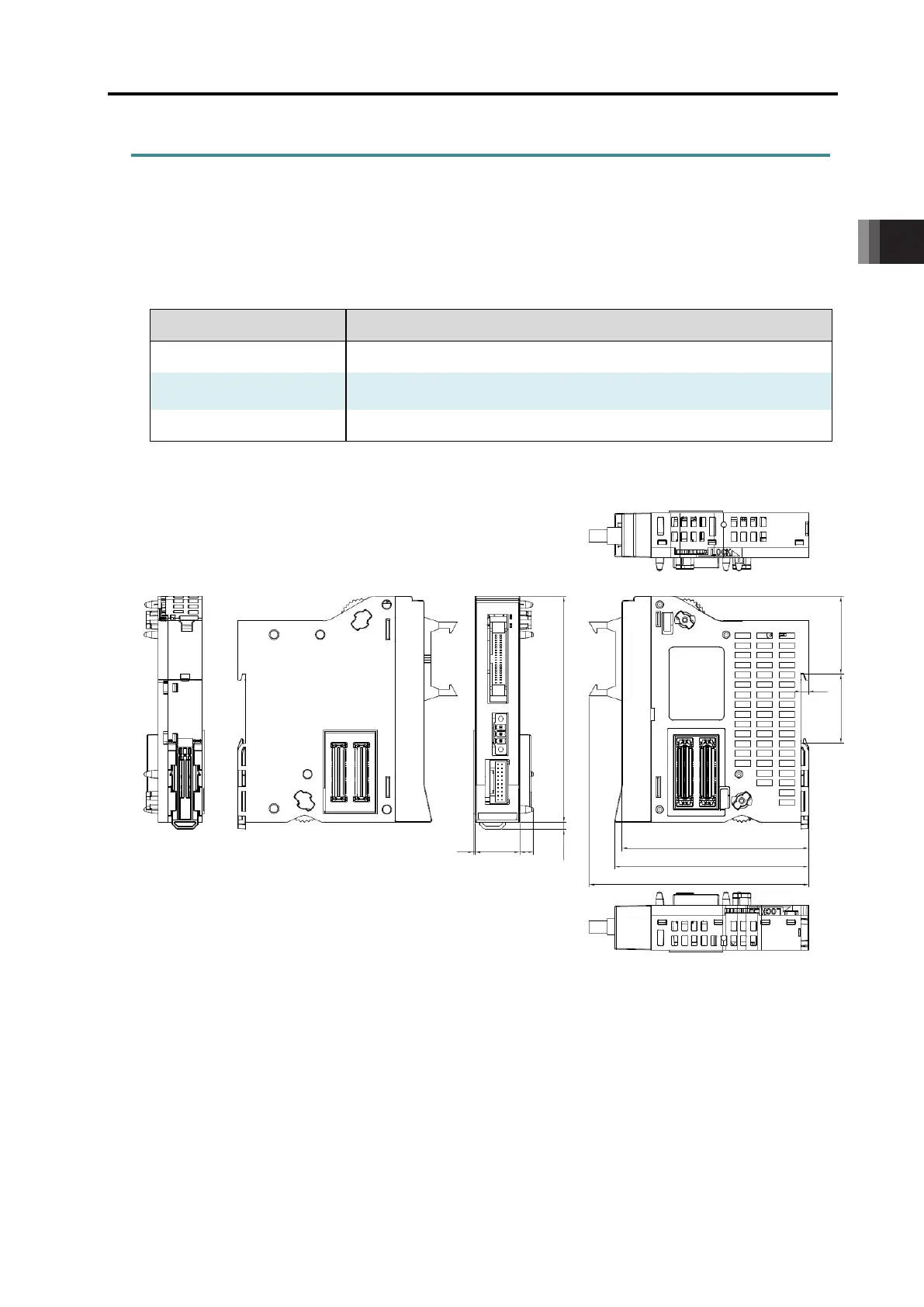

External view See figure below
1
22.6
3.5
7
115
98.8
95
4
35.2
39.6
111.7
