Chapter 3 Installation, iring, Conguration
3.2 Wiring
3-7 ME0416-1A

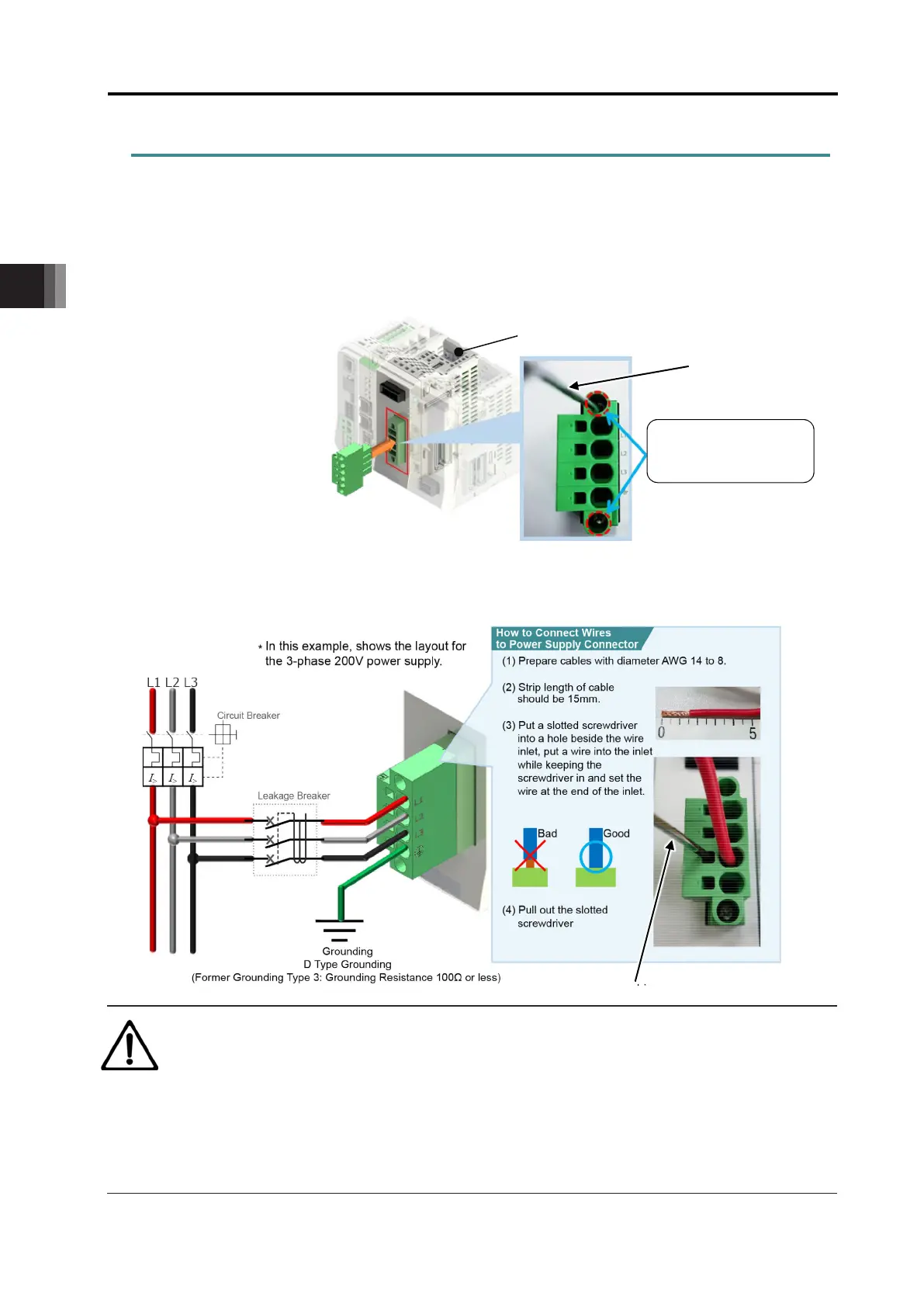

3.2.2 200V Power Supply Wiring to RCON-LC System
Join the power supply connector and connect wires to each terminal in order to supply motor
power to the 200V driver unit. See the figure below and the following wiring diagram and have
the processes in
1 to 2.
Insert the power supply connector to the 200V power supply unit (RCON-PS2).
Connect wires to each terminal. See the example of connection below to have the wiring
process.
Caution
The leakage current may vary depending on the connected motor capacity, cable length
and other ambient environment. In case of leakage protection, measure the leakage
current at the position to install a leakage breaker.
A leakage breaker should be selected under a clear purpose such as protection from fire
or protection for personnel. Select a leakage breaker applicable for higher harmonics
(inverter).
Tighten up with slotted
screwdriver
Connector Model Code :
SPC5/4-STF-7.62
-PS2
crewdriver
To Next Page
