Chapter 3 Installation, iring, Conguration
3.2 Wiring
3-13 ME0416-1A

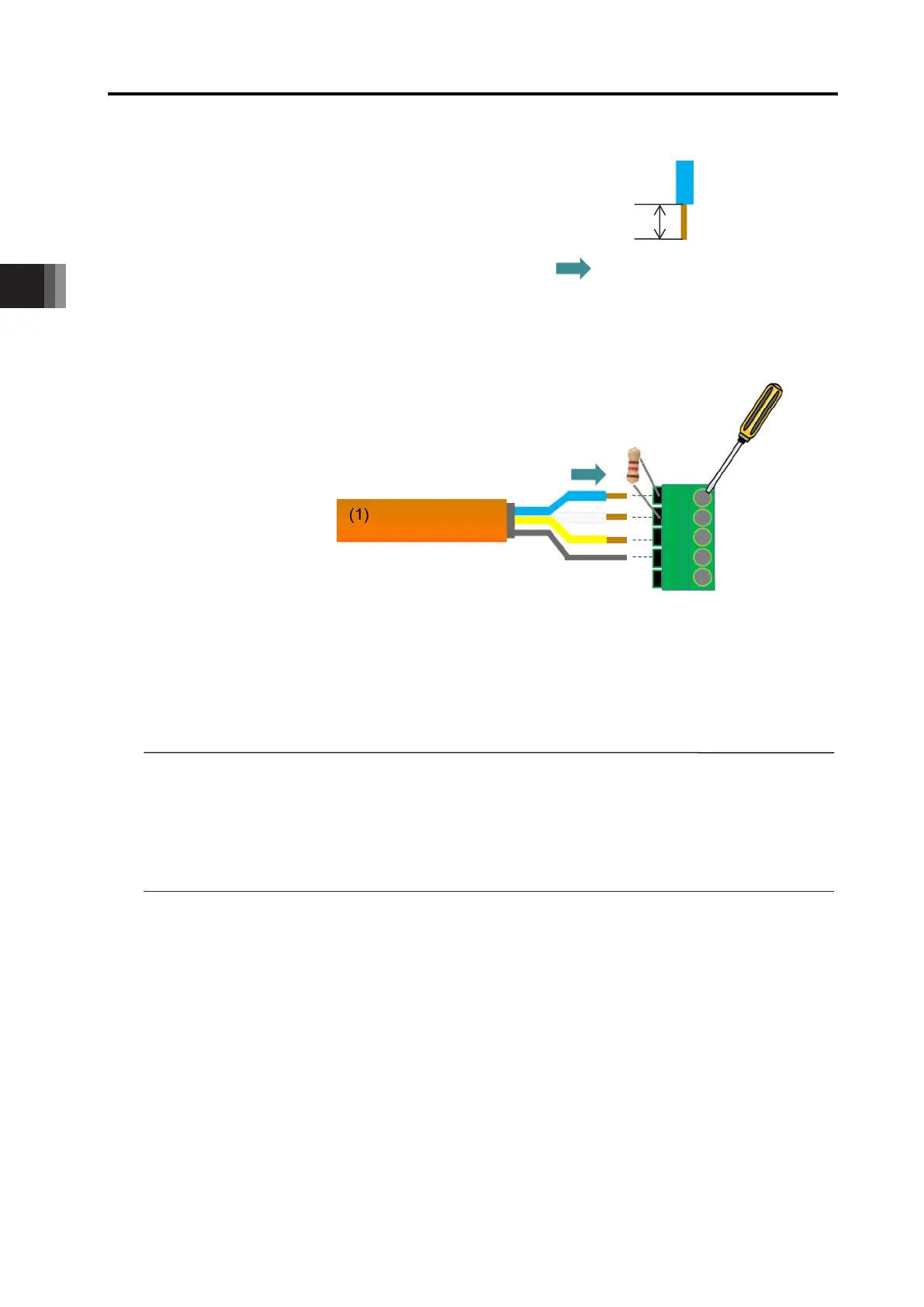

[CC-Link dedicated cable and cable connector wiring method]
(1) Prepare a CC-Link dedicated cable.
(2) Strip 7mm of insulation from each wire end.
(3) Insert the stripped wiring in the direction of the arrow in the figure below to the back of
the connector and tighten with a flathead screwdriver.
(4) (★ in "Connection image" above)
Attach the controller attached terminal resistor* between the connectors DA and DB at the
network terminal end only.
* The terminal resistor of the CC-Link master unit is
to be prepared by the customer.
(5) Other CC-Link dedicated cables are wired in the same manner as in (1) to (4).
Point !
The terminal resistor to be used may differ depending on the CC-Link dedicated cable
type.
Cable FANC-SBH (CC-Link dedicated high-performance cable): Terminal resistor: 130
Cable FANC-SB (CC-Link dedicated cable): Terminal resistor: 110
7mm
"DA" signal line
"DB" signal line
"DG" signal ground
"SLD" shield
Flathead
CC-Link cable connector
(MSTB2.5/5-STF-5.08AU)
CC-Link
dedicated cable
To Next Page
