Chapter 3 Installation, iring, Conguration
3.3 Configuration
ME0416-1A 3-16

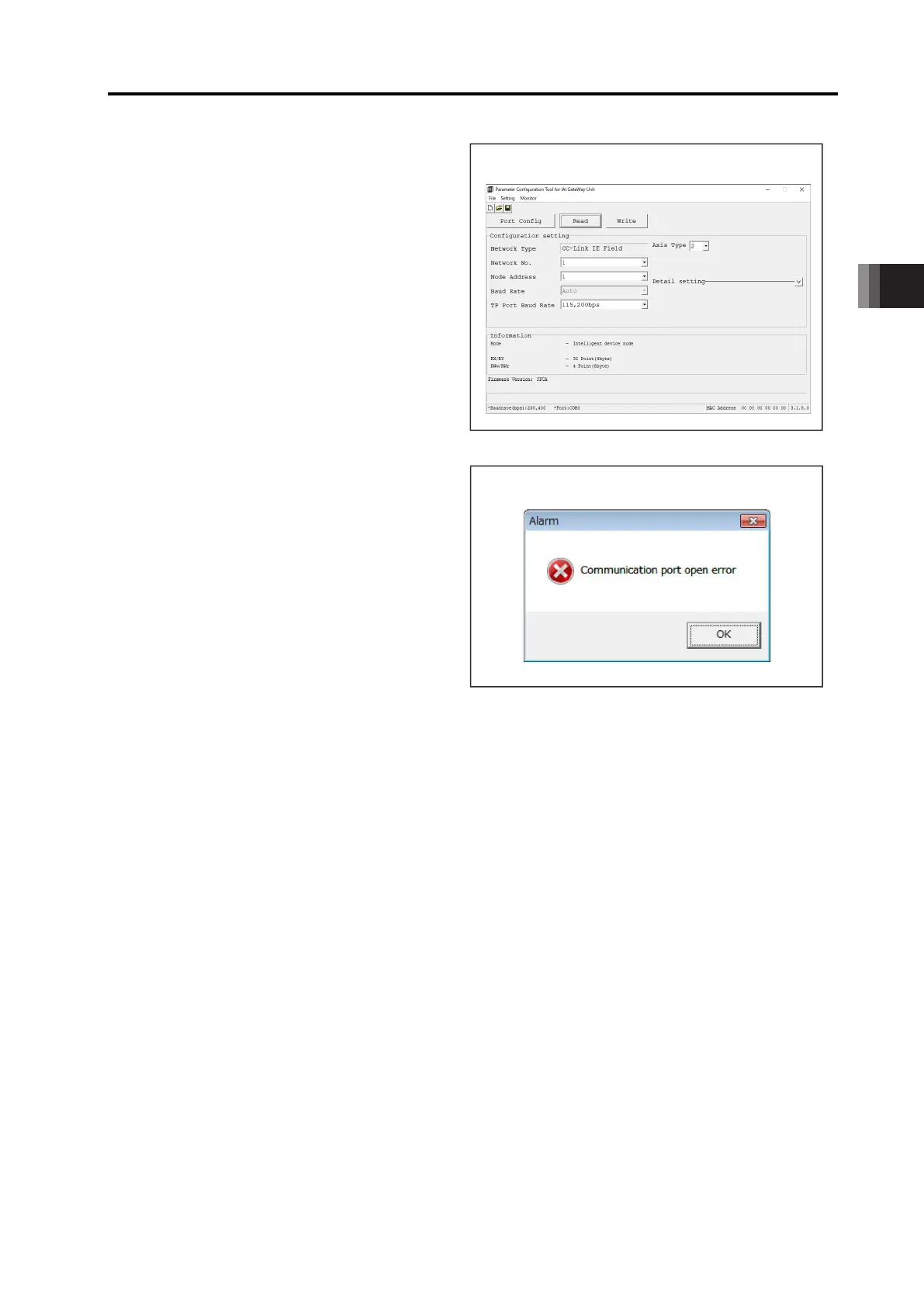

(4) As shown in the figure on the right,
if the parameters in the gateway
unit are displayed on the
"Parameter configuration tool" main
screen, communication has been
established.
(5) If "Communication port open error"
screen is displayed when importing
parameters, communication
connection has failed.
[Causes of communication connection failure]
Mismatched communication
port
Disconnected communication cable
Connection problem of
communication cable connector
Gateway unit side, PC side malfunction
PC software double startup
may be possible causes.
"Parameter configuration tool" main screen
"Communication port open error" screen
To Next Page
