5. Transporting and Handling
5.1 Handling the Unassembled Actuator
5.1.1 Handling the Packed Unit
Unless otherwise specified, each single-axis actuator is packed and shipped individually. When
transporting the packed actuator, exercise due caution to avoid dropping the box or hitting it against an
object, structure, etc.
• Heavy shipping boxes should be carried by two or more persons.
• If the shipping box is left standing, it should be in a horizontal position.
• Do not climb on top of the shipping box.
• Do not place heavy objects on top of the shipping box.
5.1.2 Handling the Actuator After It is Unpacked
The table below lists the weights of this actuator.
Stroke Weight
50 mm 33 kg
100 mm 34 kg
150 mm 35 kg
200 mm 36 kg
When transporting or installing the actuator, always work in a group of two or more to securely support the
actuator body, and exercise due caution to prevent injury.
• When carrying the actuator, exercise care not to hit it against an object, structure, etc. Pay particular
attention to the motor unit and pulley case.
• Do not exert an excessive force on any part of the actuator.
• Do not pull any of the cables.
Supplement) Refer to 4, “Names of the Parts” for the name of each actuator part.

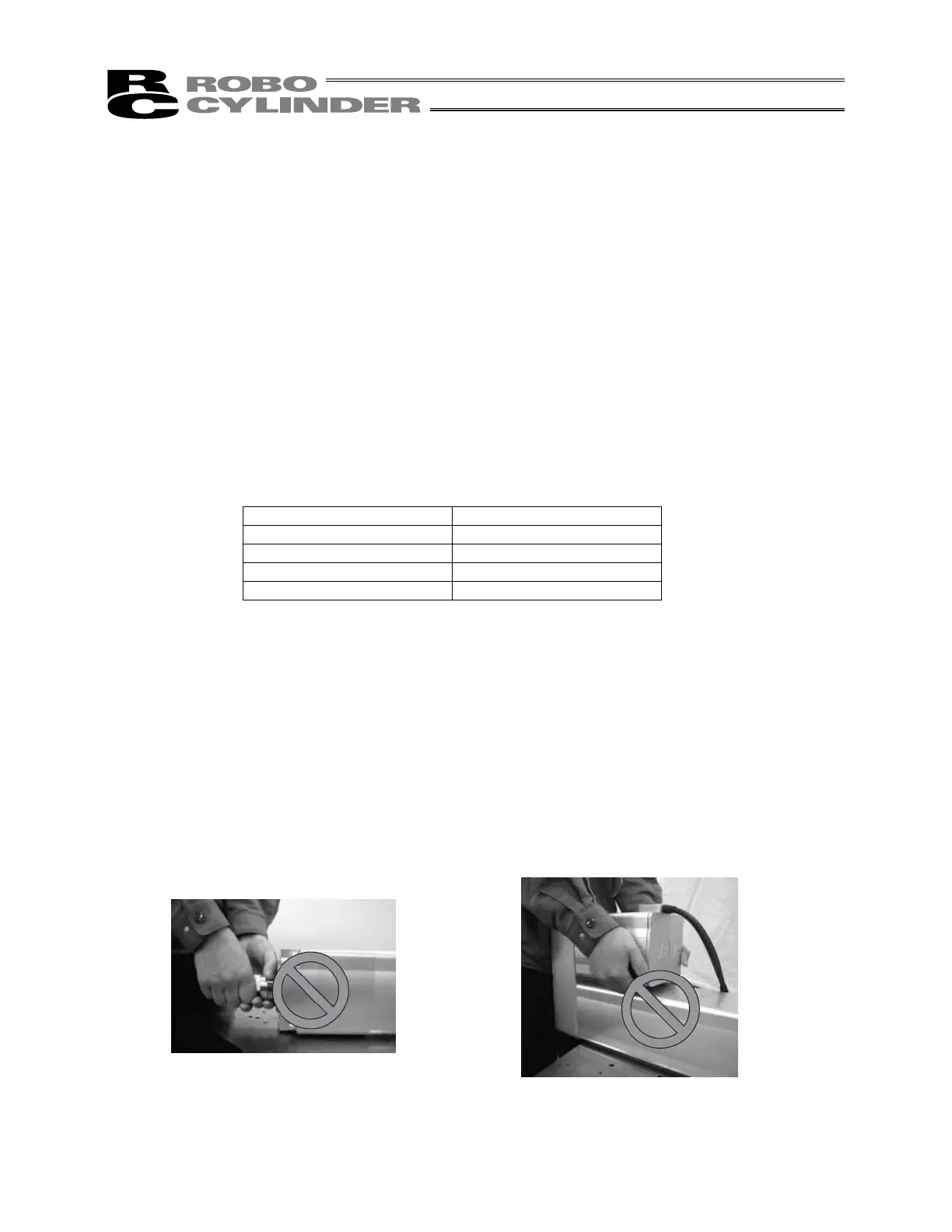

z Prohibited handling practices
Do not hold the rod when
transporting the actuator.
Do not hold the motor cover
when transporting the actuator.
To Next Page
