7. Installation

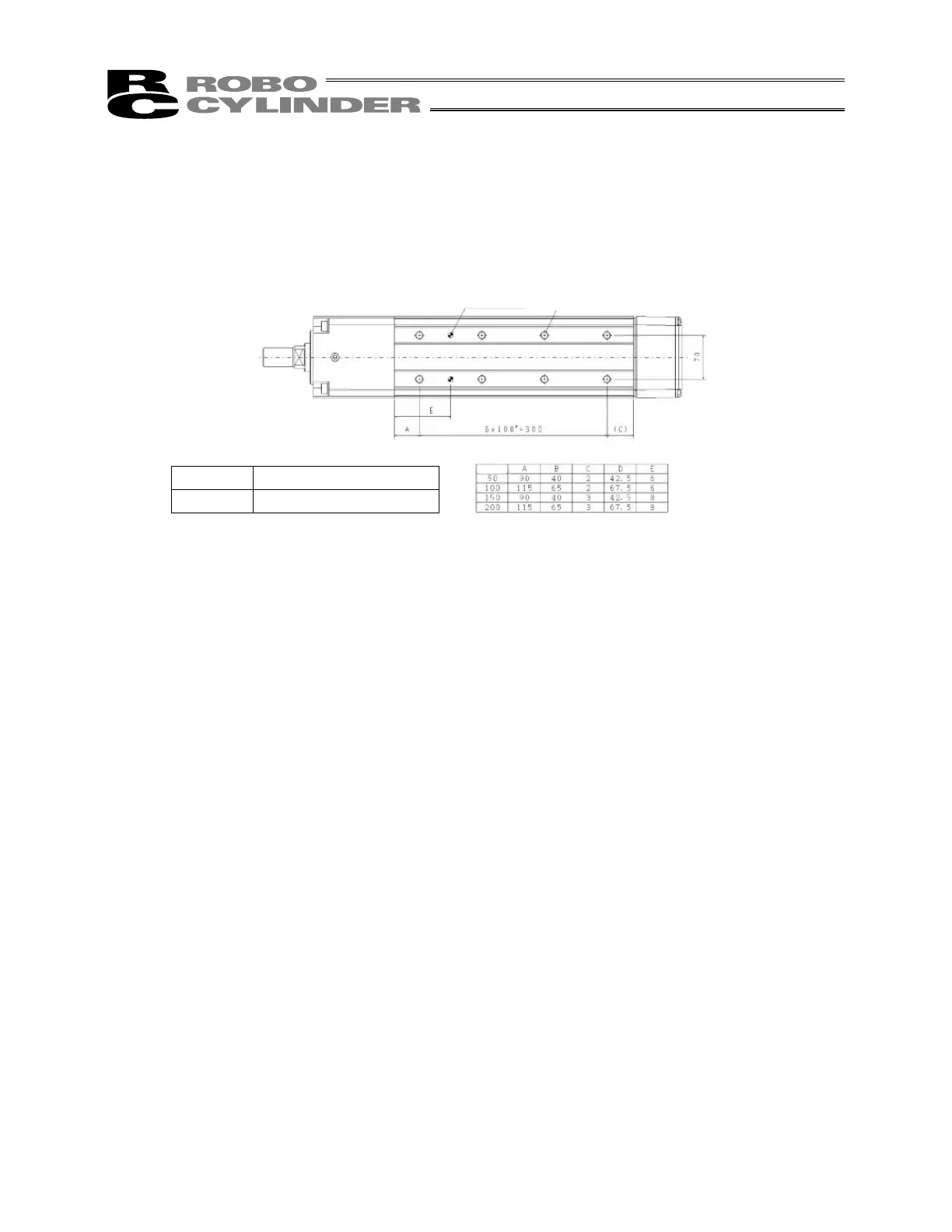

7.1 Installing the Main Body
(1) Using the tapped holes in the back of the base
Tapped holes are provided in the back of the base for mounting. You can use these tapped holes to install
the actuator. The maximum thread length of base mounting screws is specified above. Make sure the bolt
ends do not project through the holes.
There are also reamed positioning holes, which can be used if necessary.
Reamed hole
2-∅8H7, depth 10
D-M12, depth 18
Tap size Maximum thread length
M12 18 mm
Stroke
