(1) Wiring and starting the external brake connection box
[1] An example of connection with a SCON controller is explained.
Connect the cables according to the example.
In this example, the connectors for actuator 1 and controller 1 are used. It is also possible to use the
connectors for actuator 2 and controller 2.
[2] Connect a +24-V power supply to the 24-V power-supply connector on the external brake connection
box and input +24-V power.
[3] Turn on the power ON switch. The external brake connection box will be activated.

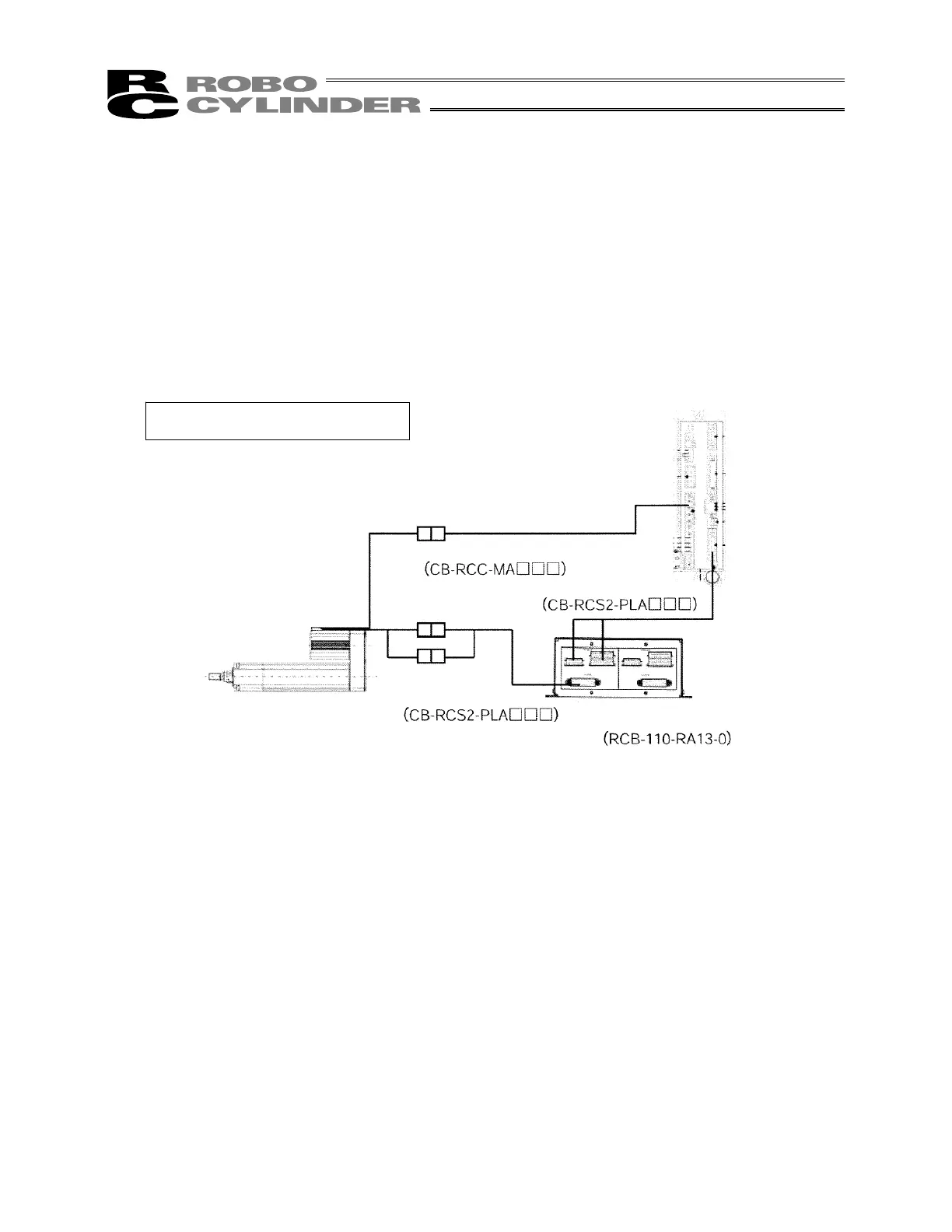

Connection diagram with controller
SCON: 400 W or above
Actuator
Motor cable
Encoder cable
Encoder cable
External brake connection box
To Next Page
