IBM 7212 102 User Manual

Bay B Bay B, on the right front of the 7212 Storage Enclosure (see Figure 1 on
page 1), can accommodate any one of the four storage devices or a bay
blank.
The rear of the 7212 Storage Enclosure has the following components:
SCSI Address Switches
The Bay A 2 and Bay B 1 SCSI address switches are used to identify
the installed storage devices to the host system.
Note: The SCSI address switches are supplied as part of the device feature
kits since the various supported devices each have unique
requirements for the address switches. Therefore if no drive is
installed in a device bay, then no SCSI address switch is installed for
that bay.
Audio
Jack Connectors
If a DVD-ROM or DVD-RAM drive is installed in Bay B, the audio jack
connectors 3 can be used to attach the drive to a stereo amplifier.
Note:
The audio jack connectors are supplied as part of the device feature
kits, since the various supported devices each have unique
requirements for the audio jack connectors. The audio jack
connectors are supplied only with the DVD-ROM Drive and the
DVD-RAM Drive feature kits. Audio jack connectors can only be
used for a DVD-ROM drive or DVD-RAM drive installed in device
bay B (see Figure 1 on page 1). If a DVD-ROM drive or DVD-RAM
drive is not installed in device bay B, no audio jack connectors are
installed in the 7212 Storage Enclosure.
Cooling Fans
The 7212 Storage Enclosure utilizes two internal cooling fans (4 and 6)
to regulate the internal temperature of the enclosure. Air exits the 7212
Storage Enclosure at the two cooling fan locations.
Note:
To ensure proper operation, place the 7212 Storage Enclosure so that
the cooling fan exits at the rear of the enclosure and the air inlet
holes at the front of the enclosure have sufficient clearance to ensure
airflow.
+
3
+
3
+
5
+
5
RBBTV542-0
6
7
8
9

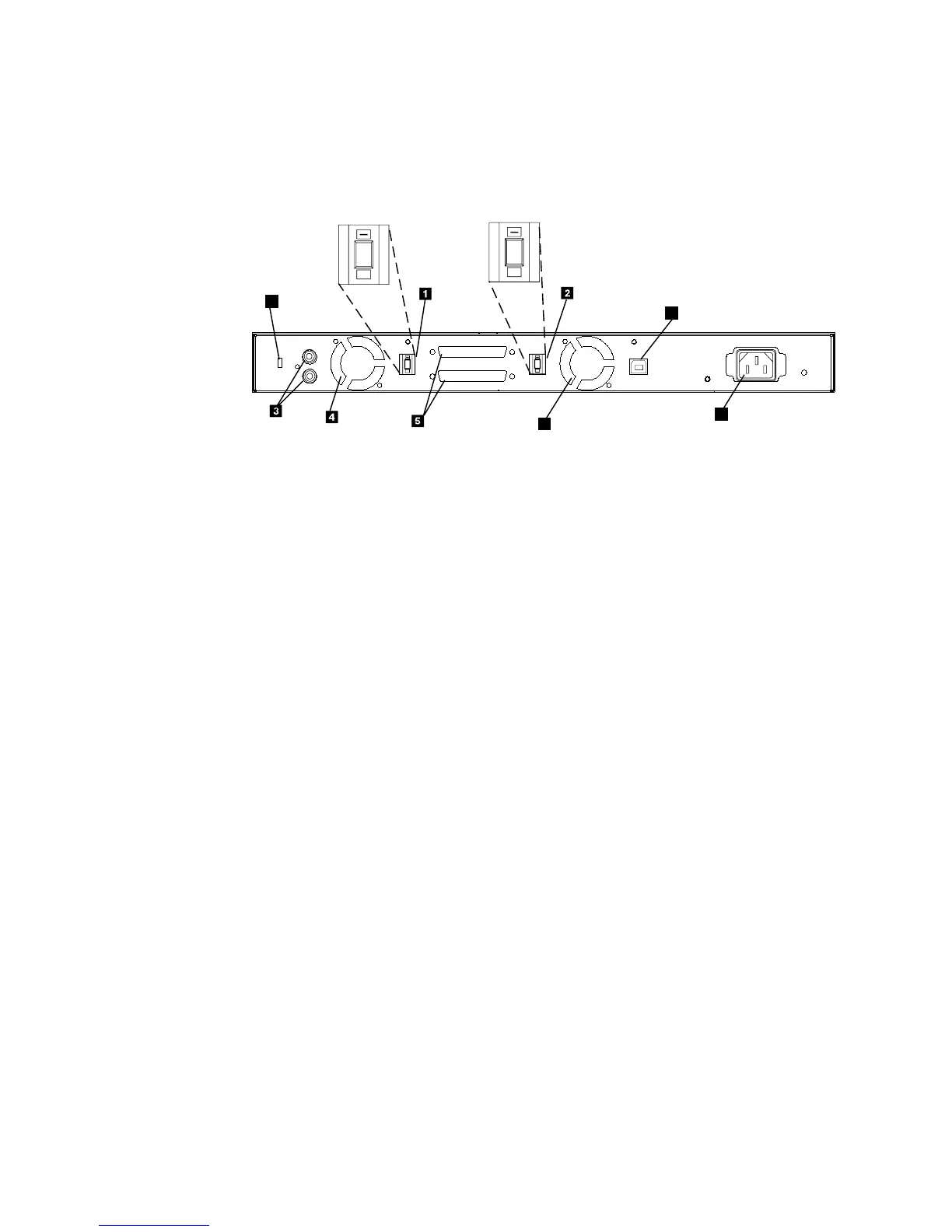

Figure 2. Rear view of the 7210 DVD-RAM Drive
2 7212 Storage Device Enclosure Service Guide
