Removing
and
Replacing
the
Status
Interface
Card
Use
the
following
steps
to
remove
the
status
interface
card:
1.
Perform
the
cover
removal
procedure.
Refer
to
“Removing
and
Replacing
the
Cover”
on
page
28.
2.
Disconnect
the
fan
cables,
power
supply
cable,
and
LED
cable
from
the
status
interface
card.
Remove
the
four
screws
1
that
secure
the
card
to
the
bottom
of
the
7212
Storage
Enclosure
chassis.
3.
Lift
the
card
up
and
out
of
the
enclosure.
To
replace
the
status
interface
card,
reverse
this
procedure.
RBBTW514-0

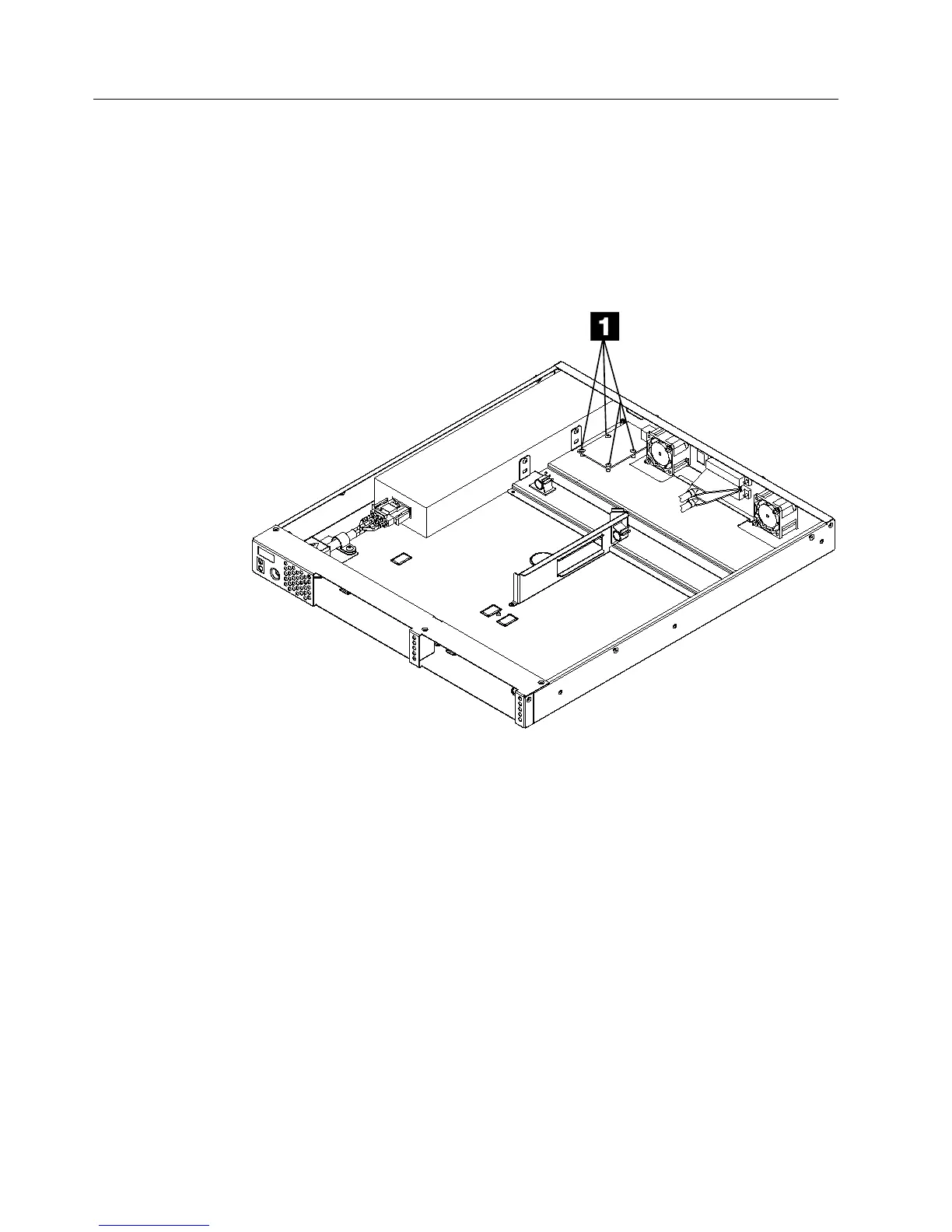

Figure
18.
Removing
the
Status
Interface
Card
38
7212
Storage
Device
Enclosure
Service
Guide
