Removing and Replacing the LED Status Light Cable
Use the following steps to remove the LED status light:
1. Perform the cover removal procedure. Refer to “Removing and Replacing the
Cover” on page 28.
2. Perform the power switch assembly removal procedure. Refer to “Removing
and Replacing the Power Switch Assembly” on page 36.
3. The status LED cables are mounted to the power switch bracket. Push the
round LED lights forward and down and guide them carefully through the
hole in the bottom of the switch bracket to free the cable.
4. Disconnect the LED cable from the status interface card.
To replace the status interface cable assembly, reverse this procedure.
Note: Ensure the green LED is positioned above the yellow LED in the bracket.
RBBTW510-0

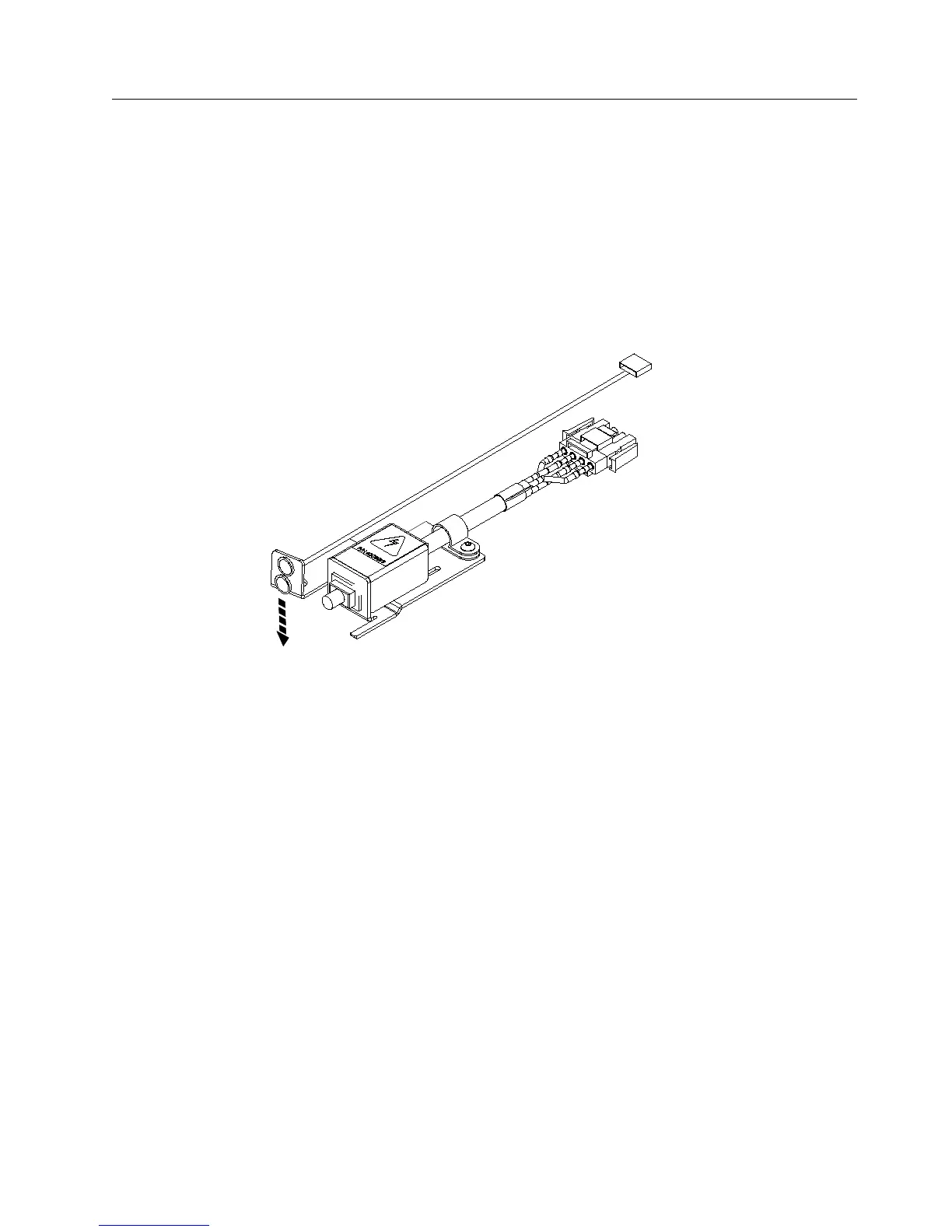

Figure 17. Removing the Status Interface Cable Assembly
Chapter 3. Removal and Replacement 37
