Removing
and
Replacing
the
Cooling
Fans
To
remove
the
cooling
fan:
1.
Perform
the
cover
removal
procedure.
Refer
to
“Removing
and
Replacing
the
Cover”
on
page
28.
2.
Disconnect
the
appropriate
fan
cable
1
from
the
status
interface
card.
3.
Remove
the
two
screws,
lockwashers,
and
nuts
(2
or
3,
as
appropriate)
that
secure
the
cooling
fan
to
the
rear
of
the
7212
Storage
Enclosure.
4.
Lift
the
cooling
fan
out
of
the
7212
Storage
Enclosure.
To
replace
the
cooling
fan,
reverse
this
procedure.
Make
sure
that
the
cooling
fan
is
oriented
so
that
air
blows
out
of
the
7212
Storage
Enclosure.

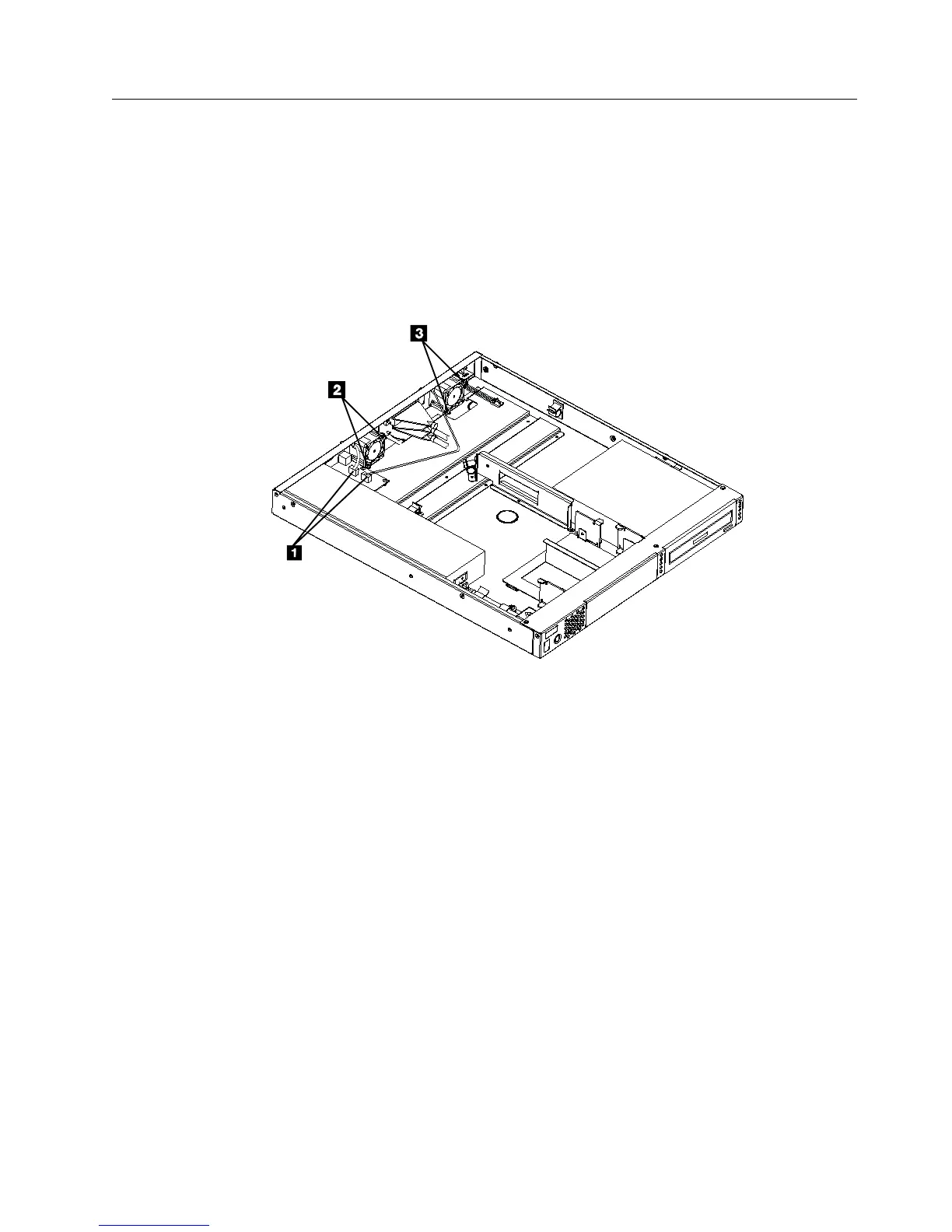

RBBTW511-0
Figure
15.
Removing
the
Cooling
Fans
Chapter
3.
Removal
and
Replacement
35
