Securing
the
Internal
SCSI
Cables
After
installing
the
cables,
the
cable
clamps
should
be
installed.
The
two
self-adhesive
connector
clamps
(see
1
in
Figure
24
on
page
43)
and
the
three
cable
clamps
(see
2
in
Figure
24
on
page
43)
included
with
the
assembly
are
used
to
secure
the
cable
assembly
to
the
enclosure.
This
prevents
the
cables
from
moving
or
interfering
with
the
device
performance.
RBBTV552-0

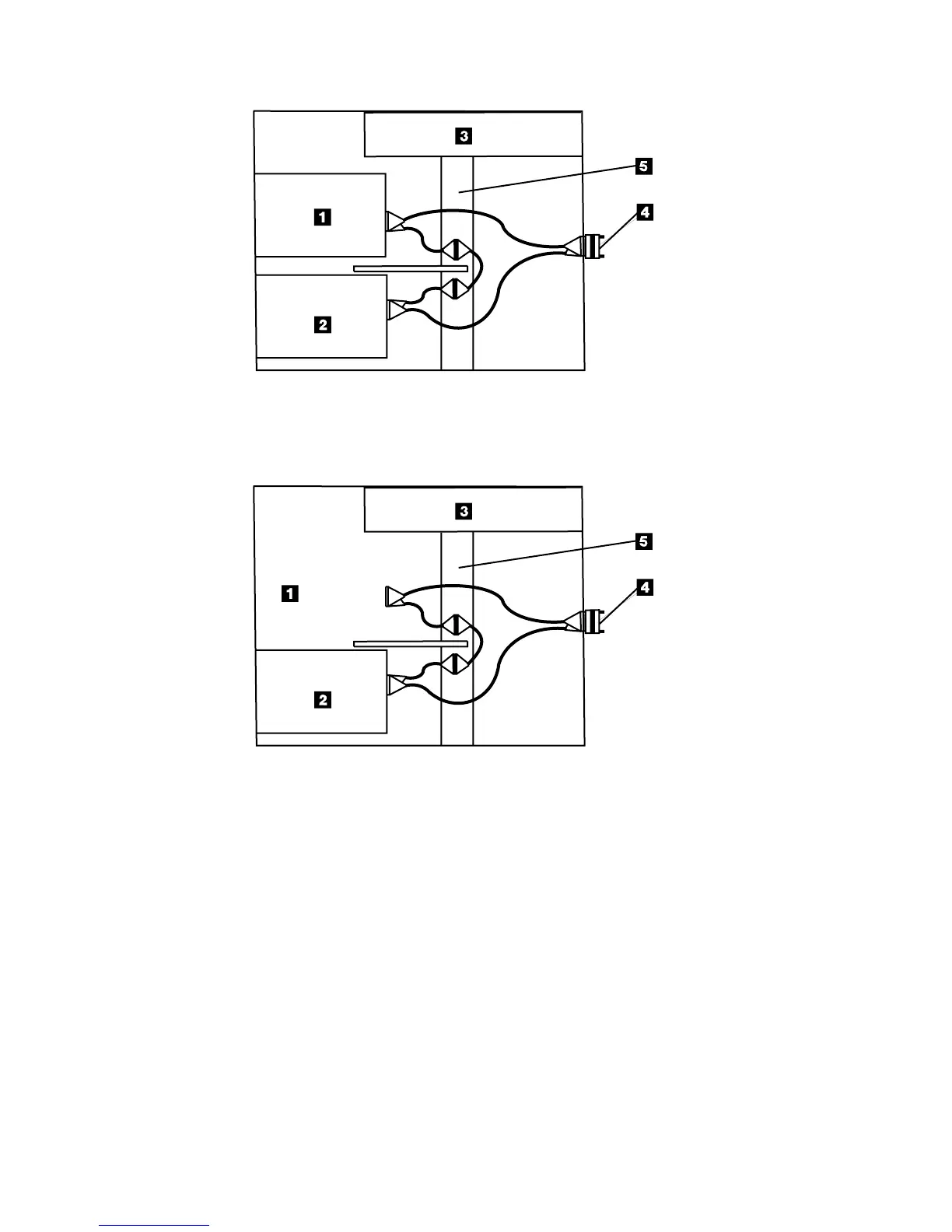

Figure
22.
Example
of
a
Single
SCSI
bus
Cable
connection
with
Two
Installed
Devices
RBBTV556-0
Figure
23.
Example
of
a
Single
SCSI
bus
Cable
connection
with
One
Installed
Device
42
7212
Storage
Device
Enclosure
Service
Guide
