Mount the two connector clamps on the raised, support structure on the bottom of
the enclosure (see Figure 25.) Mount the three cable guide clamps in the
approximate places indicated in Figure 25 so that the SCSI cables can be easily
channeled through the clamp openings.
Secure the internally installed terminators or the SCSI cable bridge connectors in
the rectangular clamps secured to the chassis support bar. Lift the flat clamp cover
(see 3 in Figure 24) off the clamp assembly, place the terminator or connector in
the clamp cradle (see 4 in Figure 24), and then press the clamp cover in place,
securing the SCSI cable.
RBBTV559-0

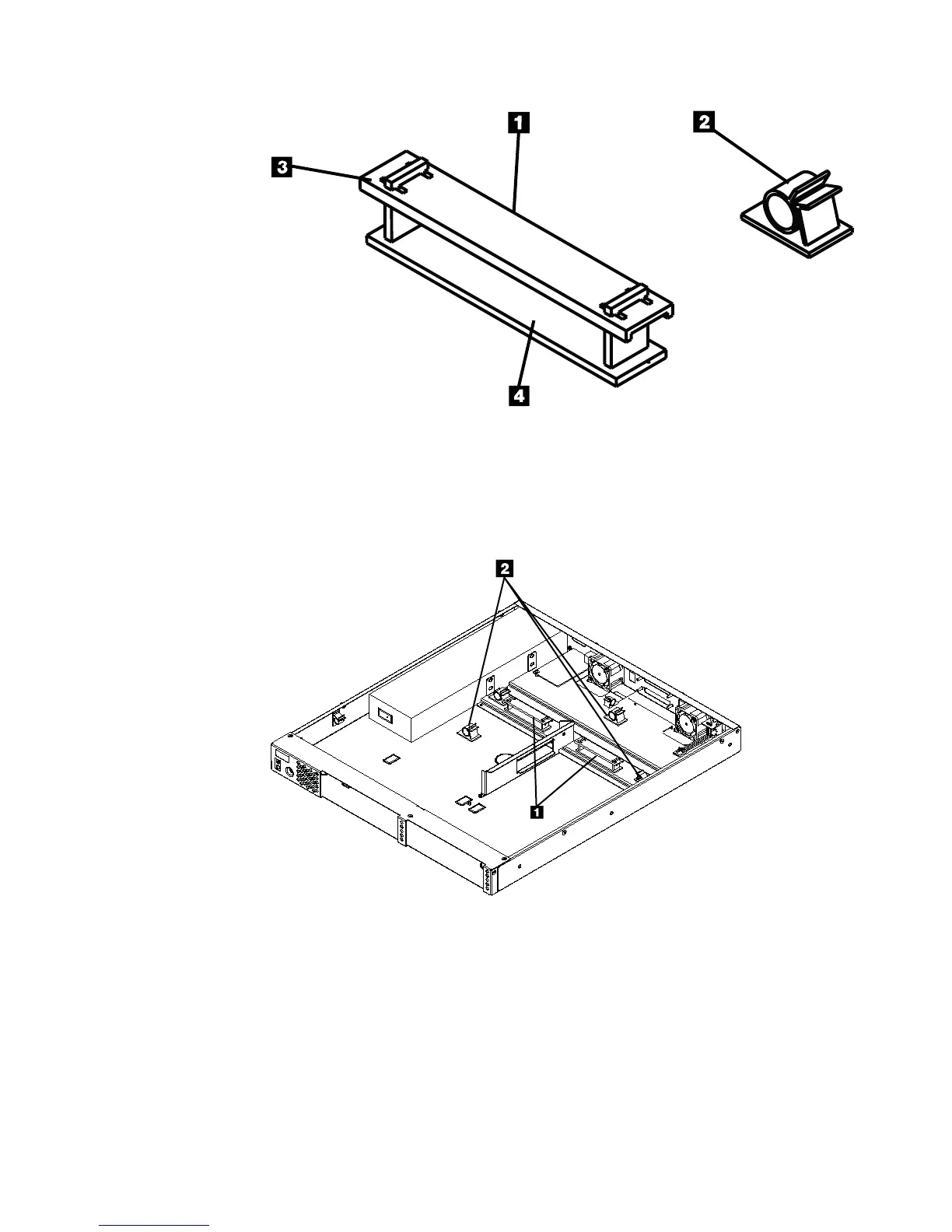

Figure 24. The SCSI Cable Clamps
RBBTV553-0
Figure 25. Placing the Internal SCSI Cable Clamps
Chapter 3. Removal and Replacement 43
