5.
Lift
the
two
device
mounting
brackets
(see
1
in
Figure
10)
upward
and
out
of
the
7212
Storage
Enclosure.
Set
the
two
device
mounting
brackets
and
two
mounting
screws
aside
for
use
in
securing
a
new
device
into
the
7212
Storage
Enclosure.
6.
Slide
the
device
out
of
the
7212
Storage
Enclosure.

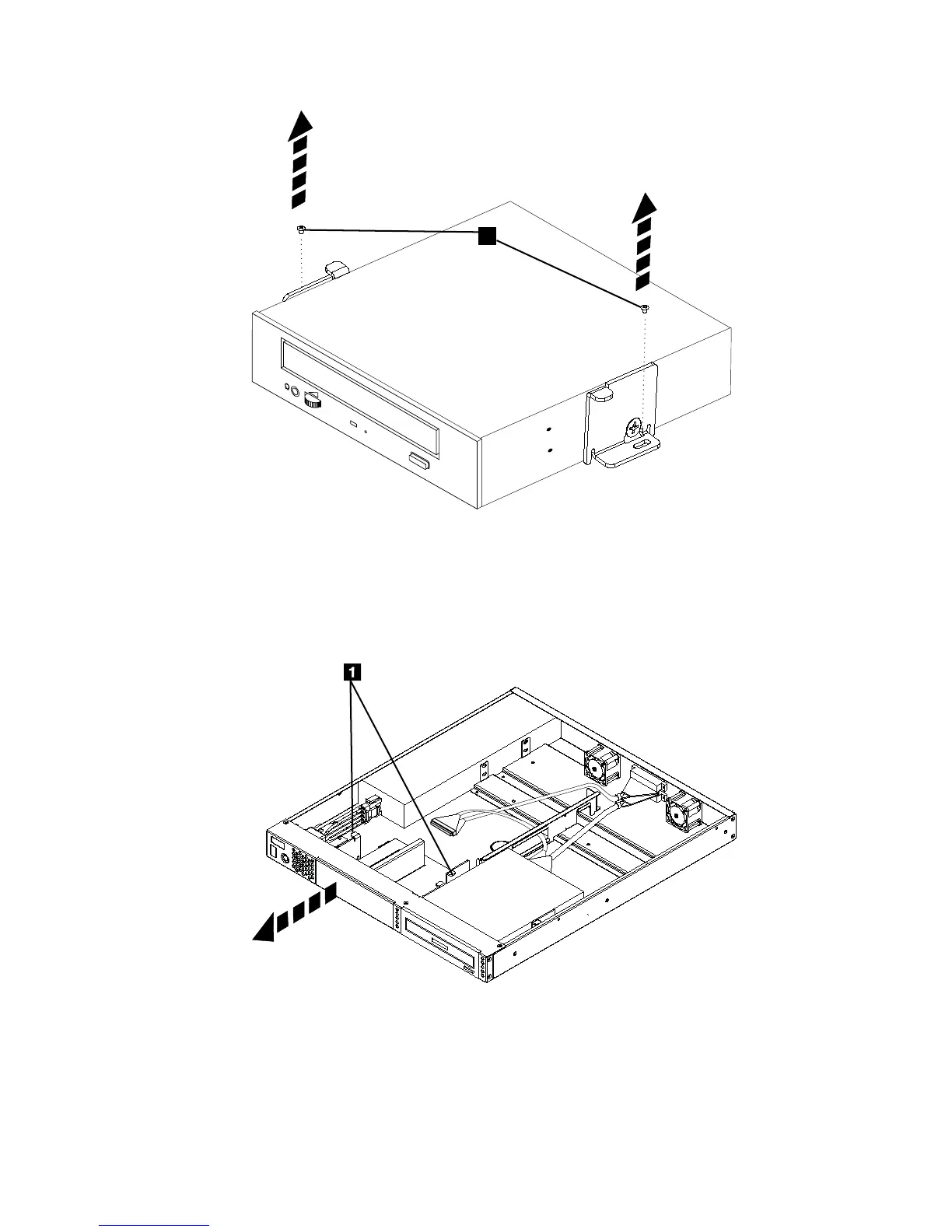

RBBTV546-0
1
Figure
9.
Removing
the
Mounting
Clip
Screws
RBBTV550-0
Figure
10.
Removing
the
Mounting
Clips
from
a
Device
or
Blank
Panel
30
7212
Storage
Device
Enclosure
Service
Guide
