6.
Grasp
the
finger
tab
of
a
device
mounting
bracket
and
place
one
of
the
M3
pan
head
screws
2
into
the
slot
of
the
mounting
bracket
(see
Figure
13).
While
holding
the
pan
head
screw
in
place
with
a
screwdriver,
carefully
lower
the
mounting
bracket
down
into
the
7212
Storage
Enclosure
so
that
mounting
bracket
engages
one
of
the
flat
head
screws
1
on
the
side
of
the
device.
Screw
the
pan
head
screw
into
the
bottom
of
the
7212
Storage
Enclosure.
Repeat
the
process
for
the
second
bracket.
Two
brackets
are
required.
RBBTV531-0

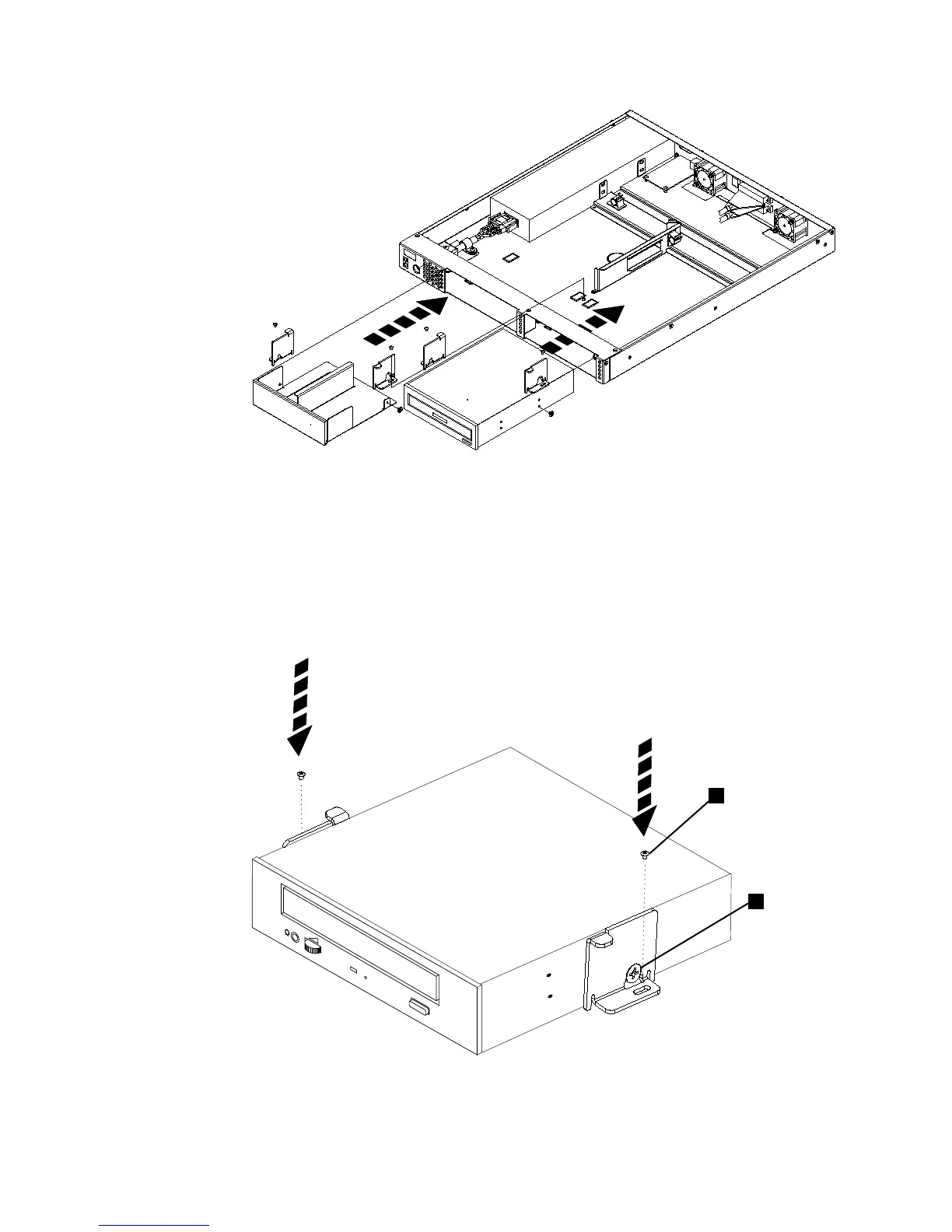

Figure
12.
Installing
the
Devices
in
the
Enclosure
RBBTV543-0
1
2
Figure
13.
Installing
the
Mounting
Bracket
32
7212
Storage
Device
Enclosure
Service
Guide
