The following procedure describes how to manually remove a data cartridge from
the tape drive. If this procedure is performed, replace the drive, discard the used
media, and use new media.
1. Remove the drive from the 7212 Storage Enclosure (see “Removing a Storage
Device from the Enclosure” on page 29).
2. Remove the mounting rails by removing the four screws (1 in Figure 28) near
the lower edge of the drive (two on each side). Access the screws through holes
in the side of each rail.
3. Remove the front bezel (the bezel snaps on) by doing the following:
a. Use a small screwdriver to depress one of the bezel tabs 2.
b. Pull the bezel down from the top.
c. Lift the bezel off the bottom locating tabs.
d. Remove the bezel from the unit.
RBBTW507-0

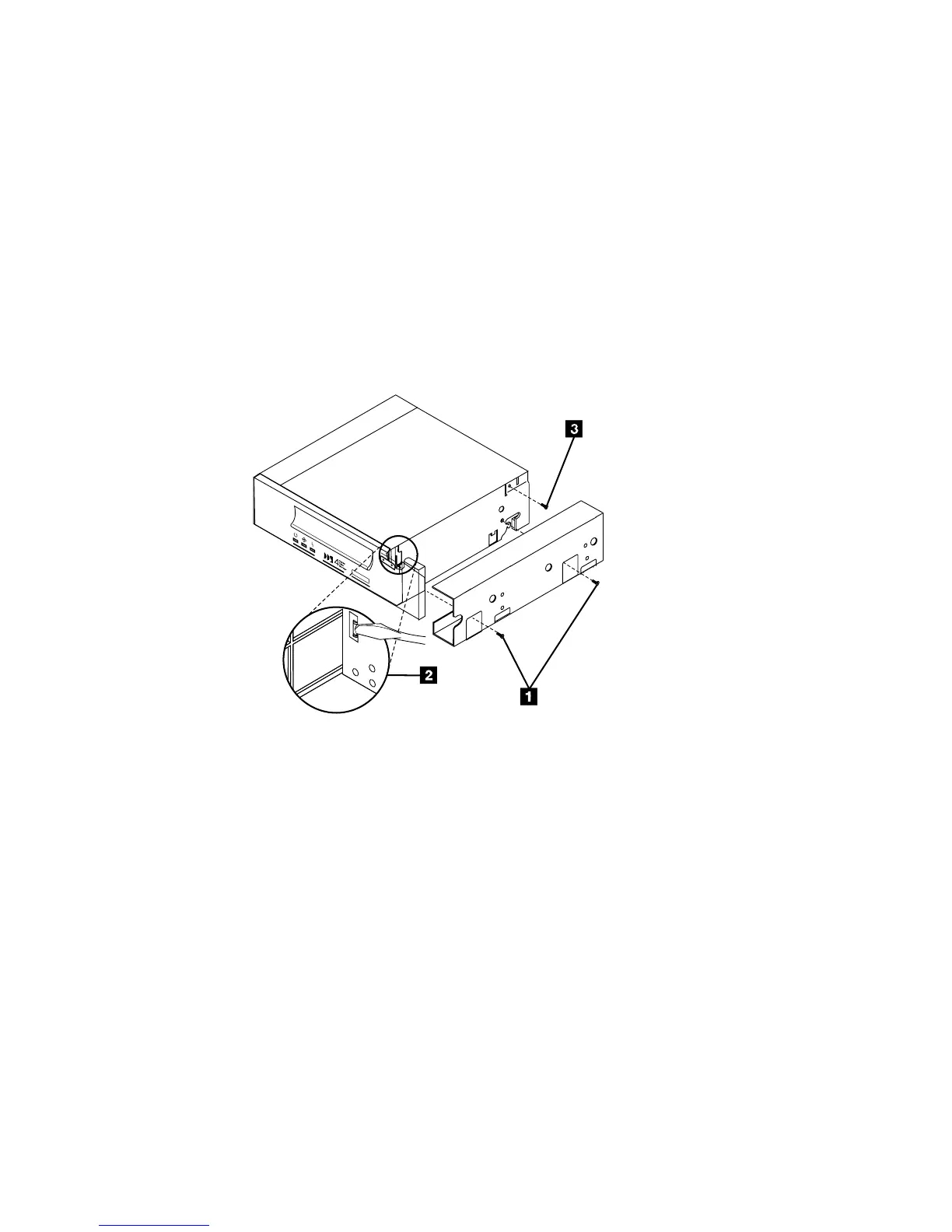

Figure 28. Removing the Mounting Rails from the Drive
48 7212 Storage Device Enclosure Service Guide
