3. If the tape drive is in the Locked position, the bridge C is positioned to
prevent the tape cartridge from being removed. Open the tape unit door.
4. Locate the metal axle B inside the tape unit. Look towards the lower right
corner.
5. Insert a pointed object (for example, a pen or screwdriver) into the tape unit
and push the axle inward.
6. Push the bridge C to the right. The tape unit is now in Standby position.
7. Locate the hook shaped metal rod A inside the tape unit in the upper left
corner.
8. Insert a pointed object (for example, a pen or screwdriver) into the tape unit
and push the metal rod downward.
9. Pull the metal rod forward until the cartridge ejects. The cartridge D is
pushed out the tape unit door and can be removed.
Note: Service personnel should record the fact that the tape cartridge had to be
manually removed.
RBBU9510-0

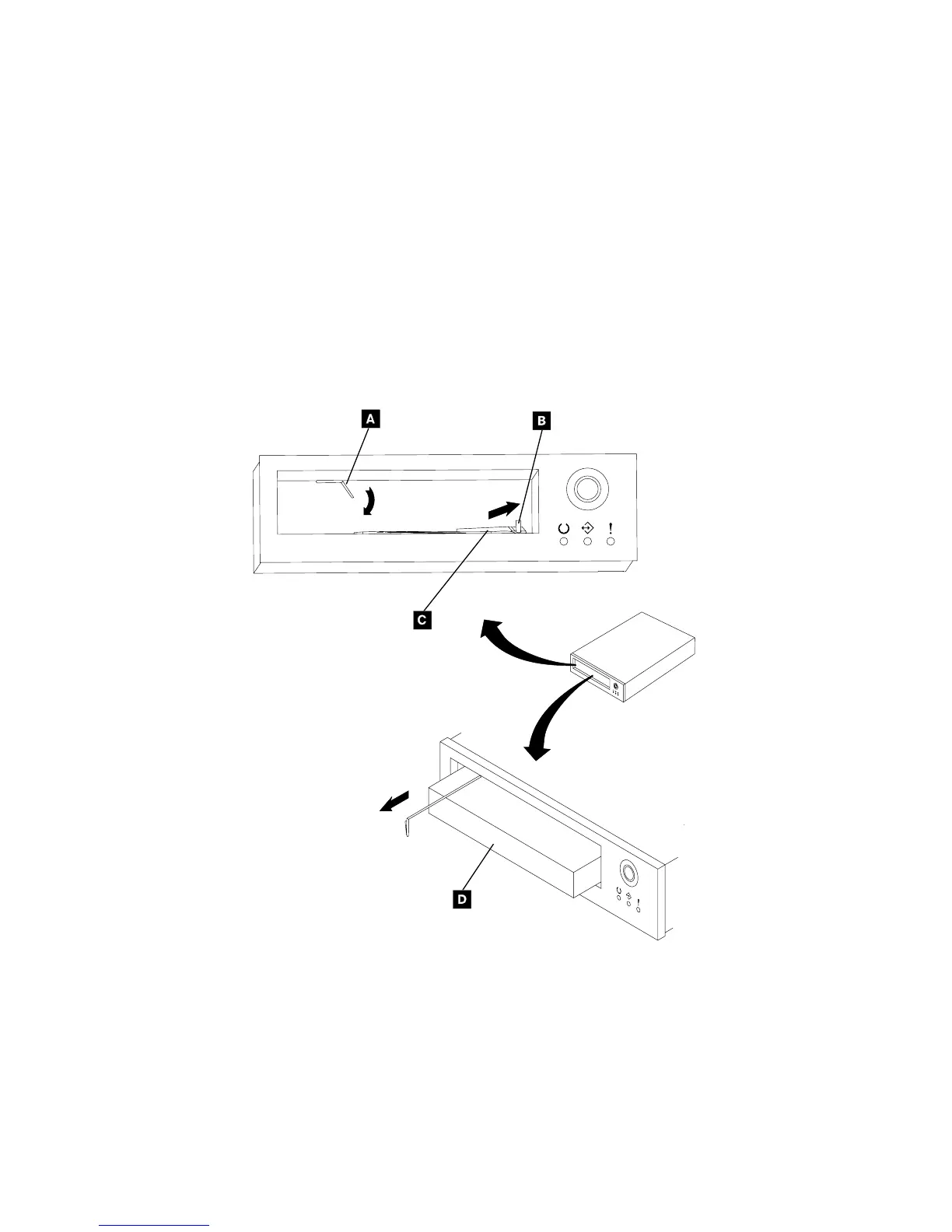

Figure 34. Manually Removing a Tape Cartridge
60 7212 Storage Device Enclosure Service Guide
