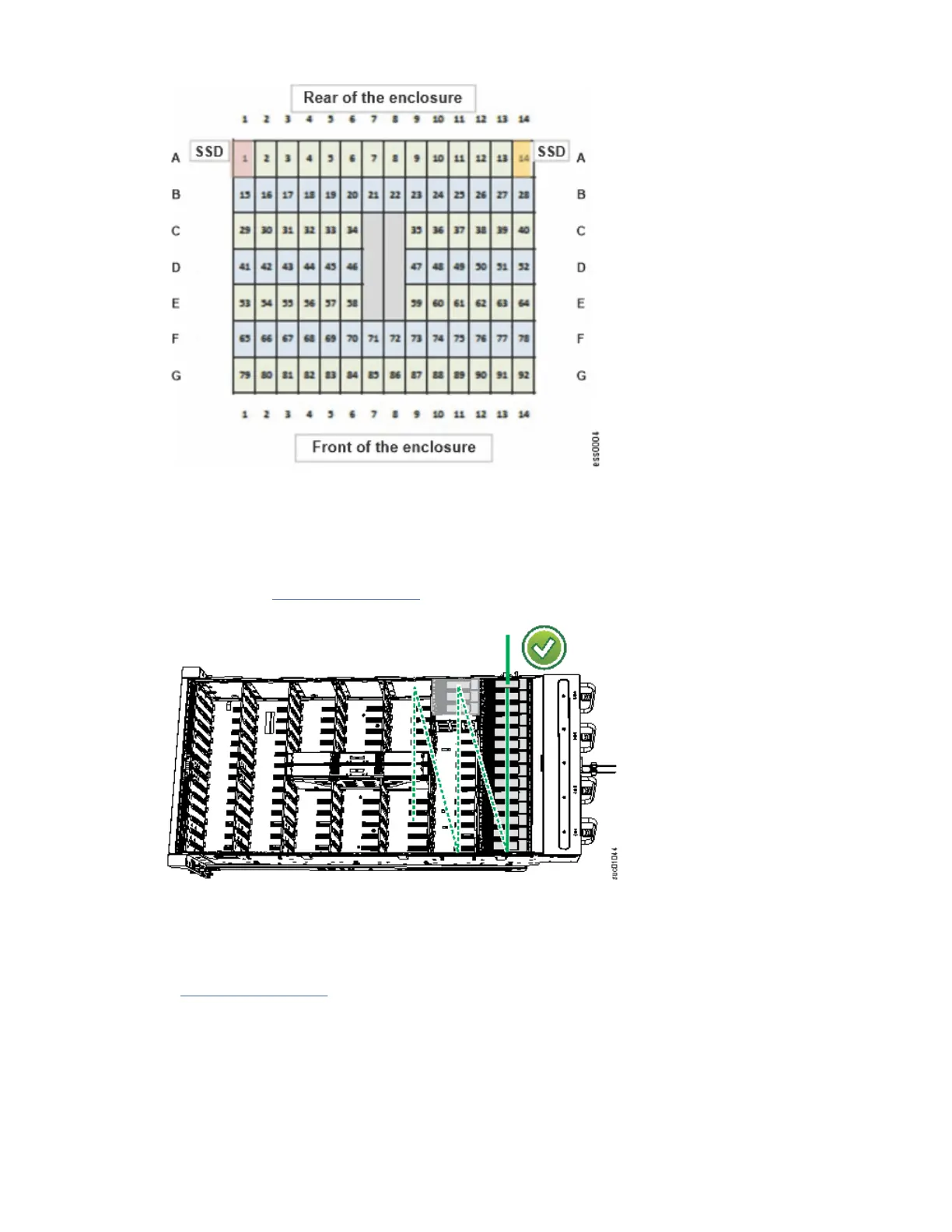

Figure 31. Drive locations in a Model 092 expansion enclosure
The drive slots must be populated sequentially, starting from the back-left corner position (slot 1,
grid A1). Sequentially install the drive in the slots from left to right and back row to front. Always
complete a full row before you install drives in the next row.
For example, in Figure 32 on page 51, the drives are installed correctly. Drives are installed in slots
1 -14 of row A and the installation continues in slot 15 in row B.
Figure 32. Correct drive installation
In the rst Model 092 expansion enclosure slots, 1 and 14 contain SSDs for the LogTip backup. For
more information about the LogTip backup, see IBM Spectrum Scale RAID guide.
In Figure 33 on page 52, the drives are not installed correctly. Slot 1 (A1) does not contain a drive.
In addition, drives are installed in row B even though row A contains empty drive slots.
Chapter 5. Installing Model 092 expansion enclosure
