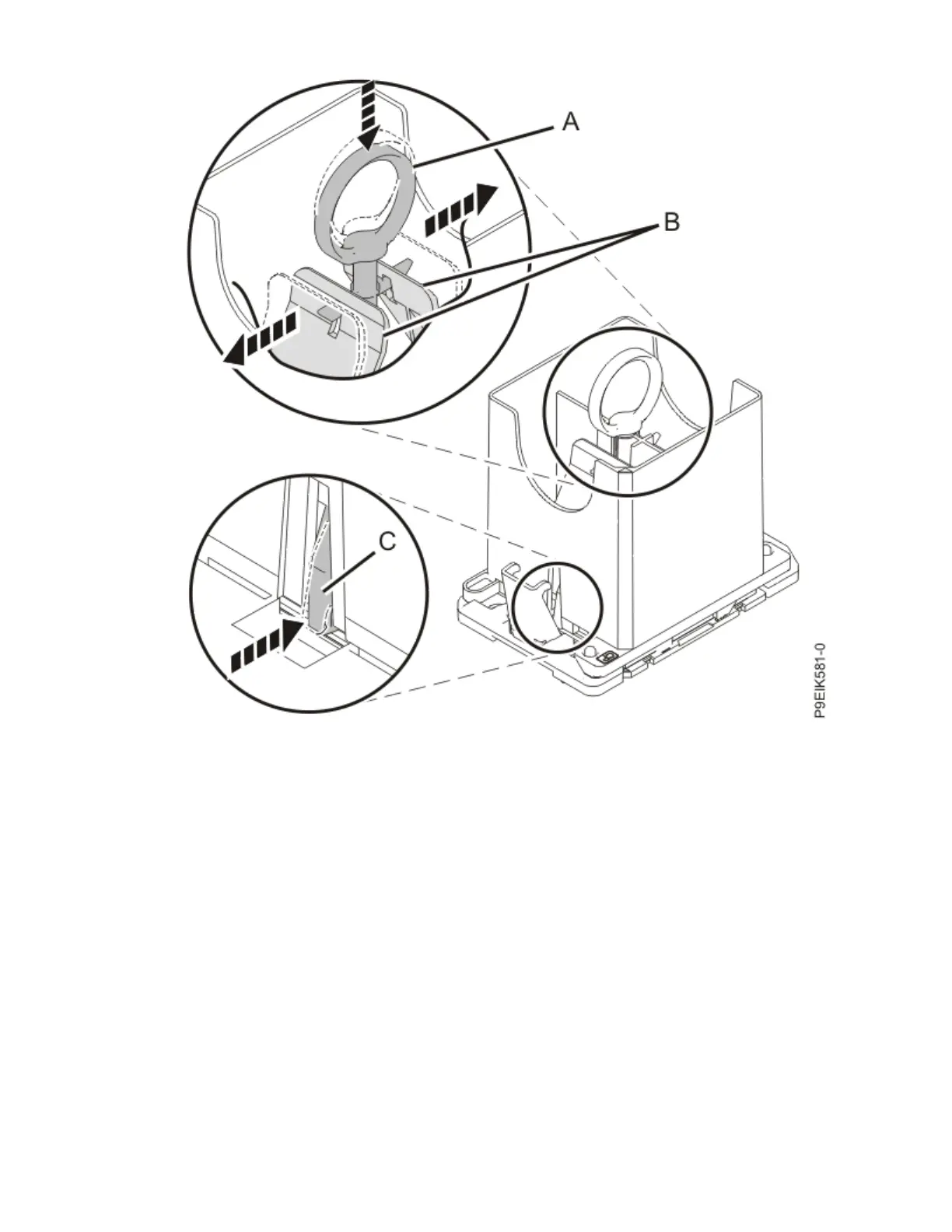

Figure 79. Locking the system processor module into the tool
11. Holding the outside of the tool, lift the tool and the system processor module from the old system
backplane socket to transfer it to the new system backplane socket.
12. Remove the dust covers from the system processor module sockets on the new system backplane.
13. Install the system processor module:
a) If dust or debris is present on the system processor socket, use the supplied air pump to clean the
socket. Blow small bursts of air from the center toward the sides of the socket, as shown in the
following gure.
Removing and replacing parts in the 9183-22X
