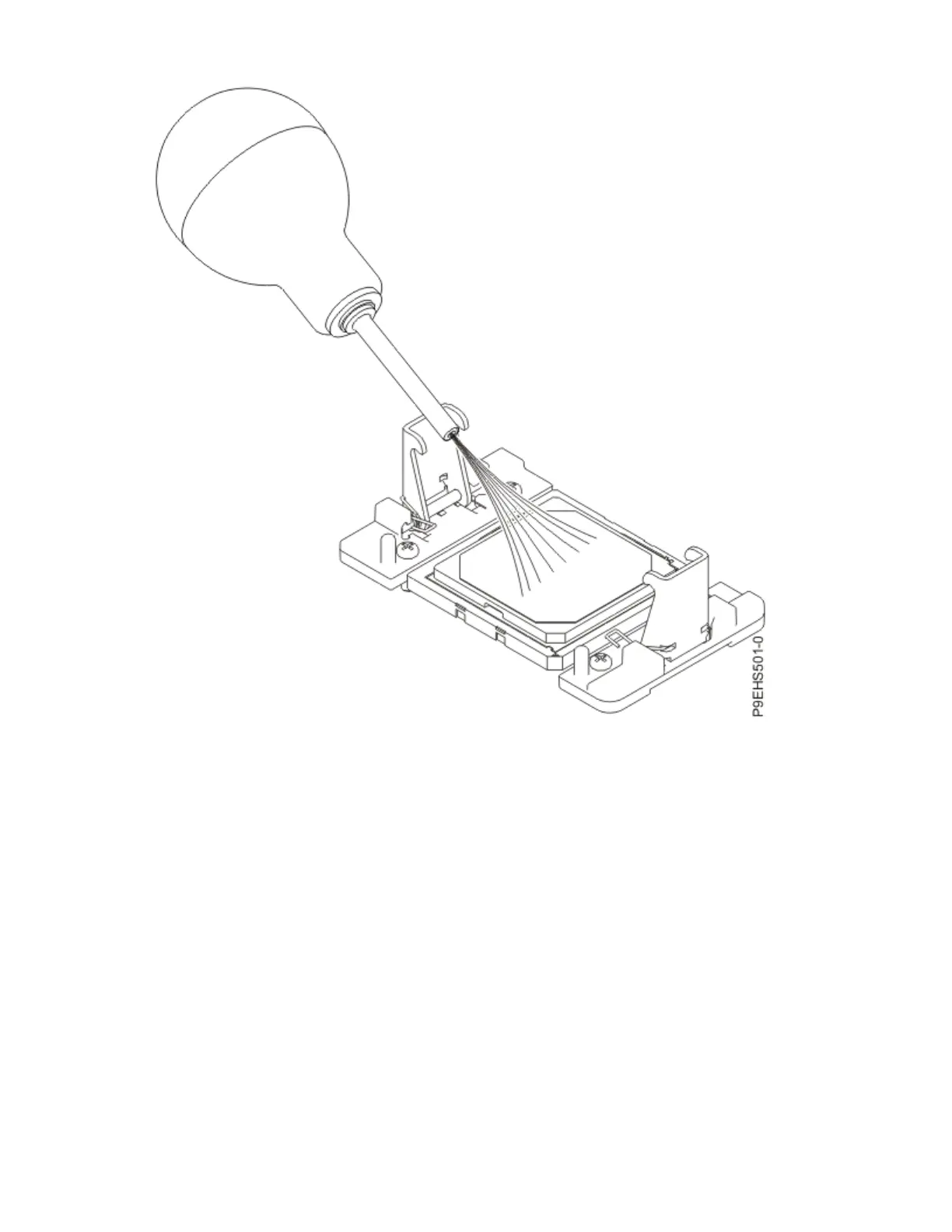

Figure 96. Removing dust and debris from the system processor module area
7. Prepare the system processor module for removal.
a) Open the latches that hold the system processor module in the supplied removal tool (A). Push
down on the ring (B) while pressing in on the tabs (C).
See the following gure.
Removing and replacing parts in the 9183-22X
109
