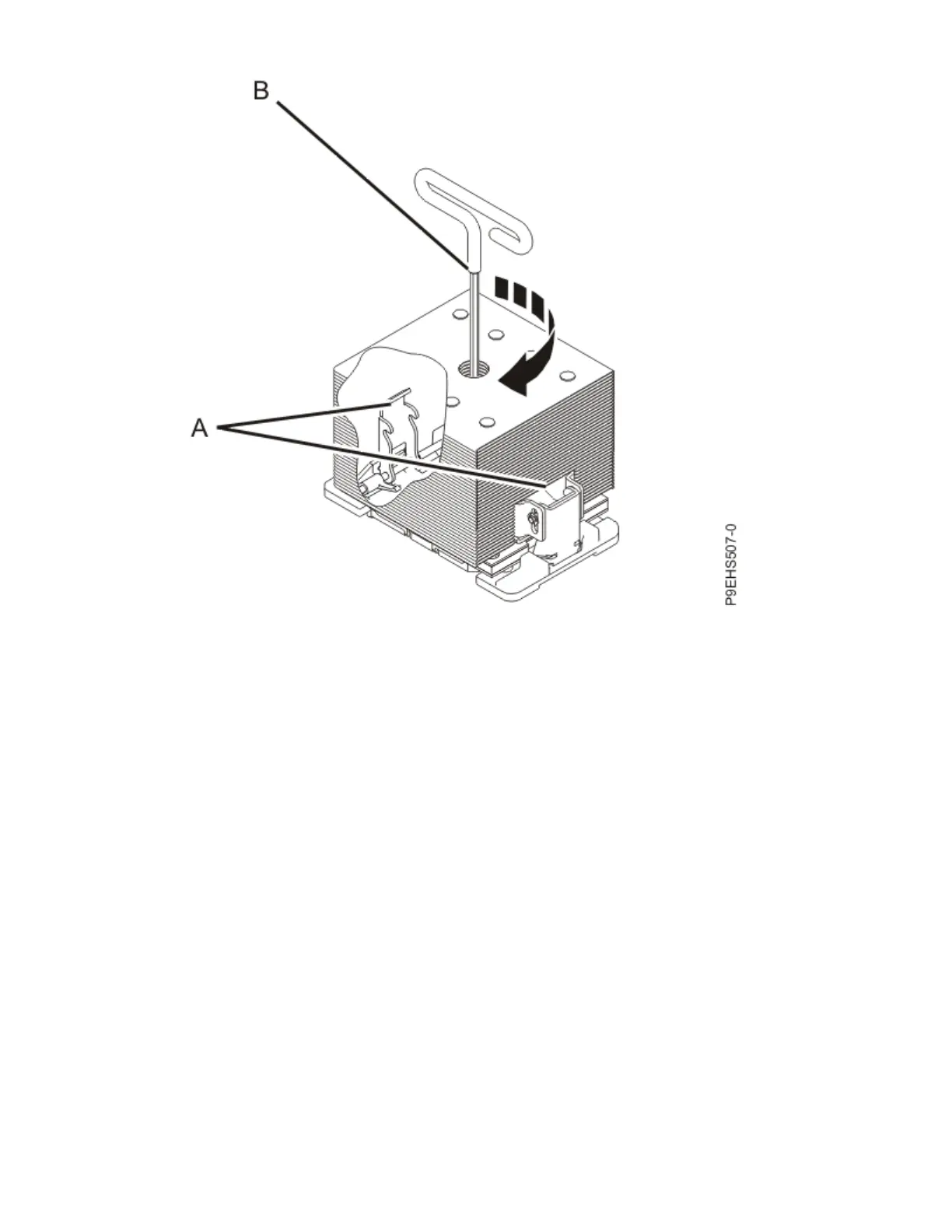

Figure 113. Tightening the center load screw on the heat sink
11. Replace the air baffle (A) straight down into the chassis as shown in the following gure.
Ensure that the pins inside the system side walls align properly with the slots in the cover (B).
