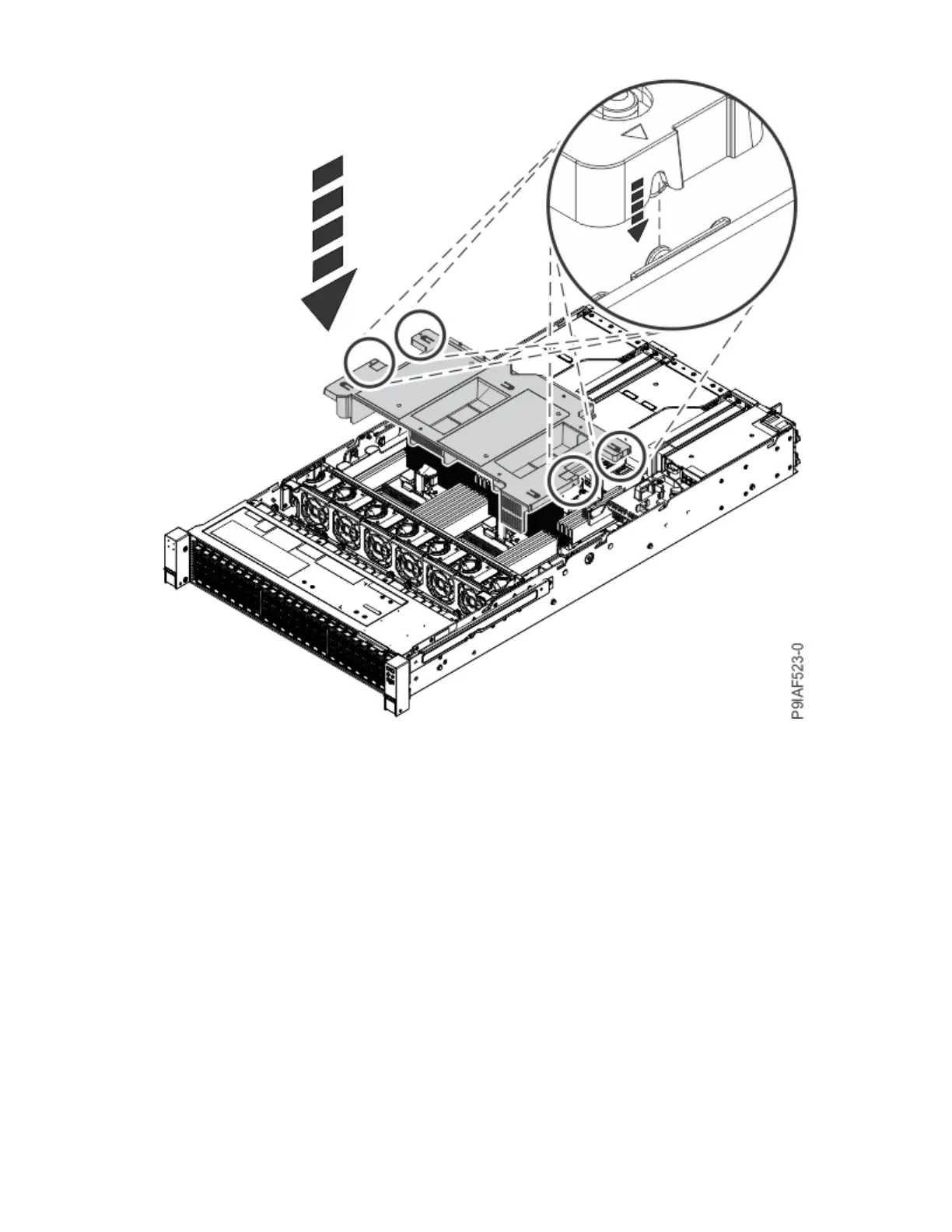

Figure 114. Replacing the air baffle
12. Lightly grip the system processor module that you replaced by the edges. Lift it off the packaging
cover. Align the beveled corner of the module (A) to the corner of the packaging with triangle (B) and
place it in the packaging, as shown in the following gure. Close the packaging cover.
