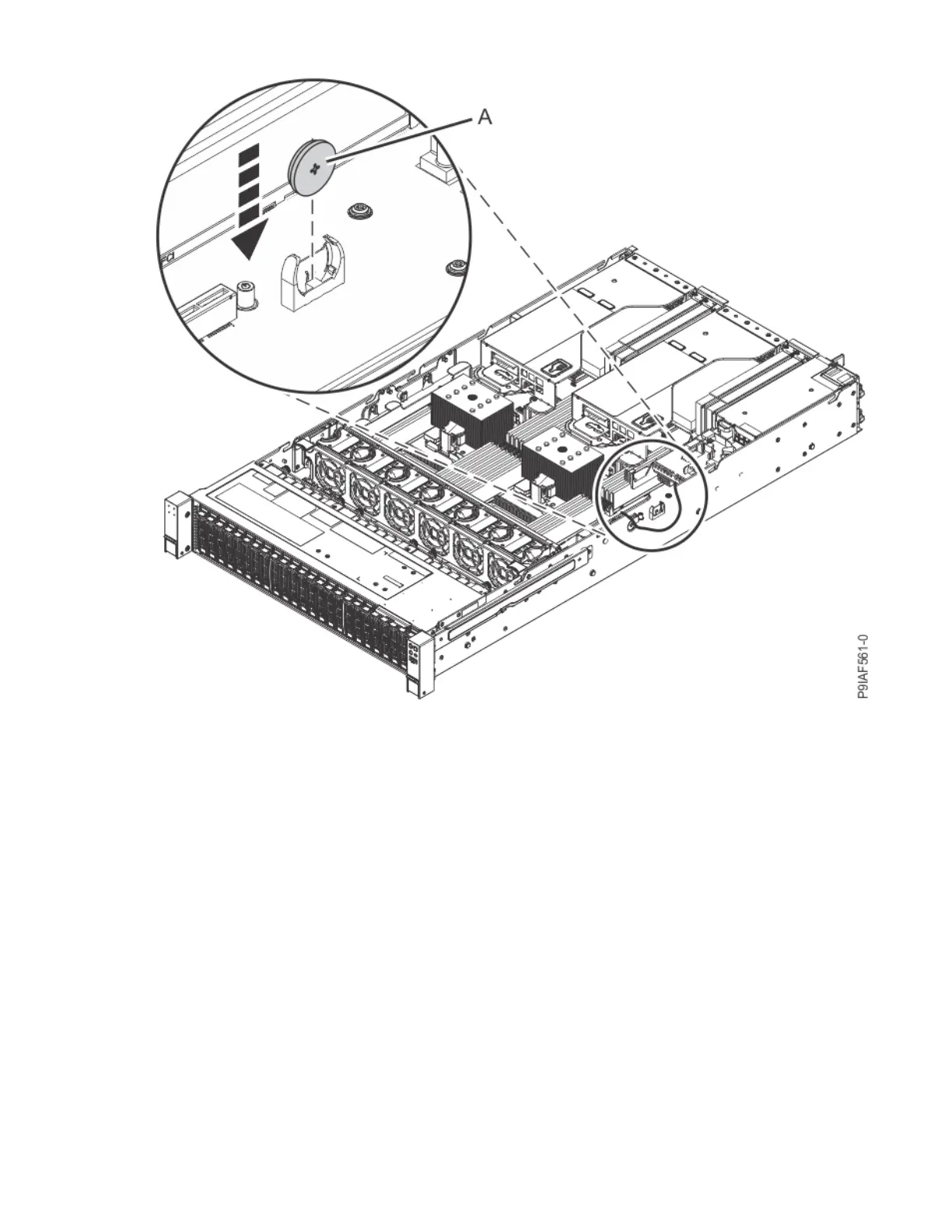

Figure 118. Replacing the time-of-day battery on the system backplane
5. Replace the air baffle (A) straight down into the chassis as shown in the following gure.
Ensure that the pins inside the system side walls align properly with the slots in the cover (B).
Removing and replacing parts in the 9183-22X
131
