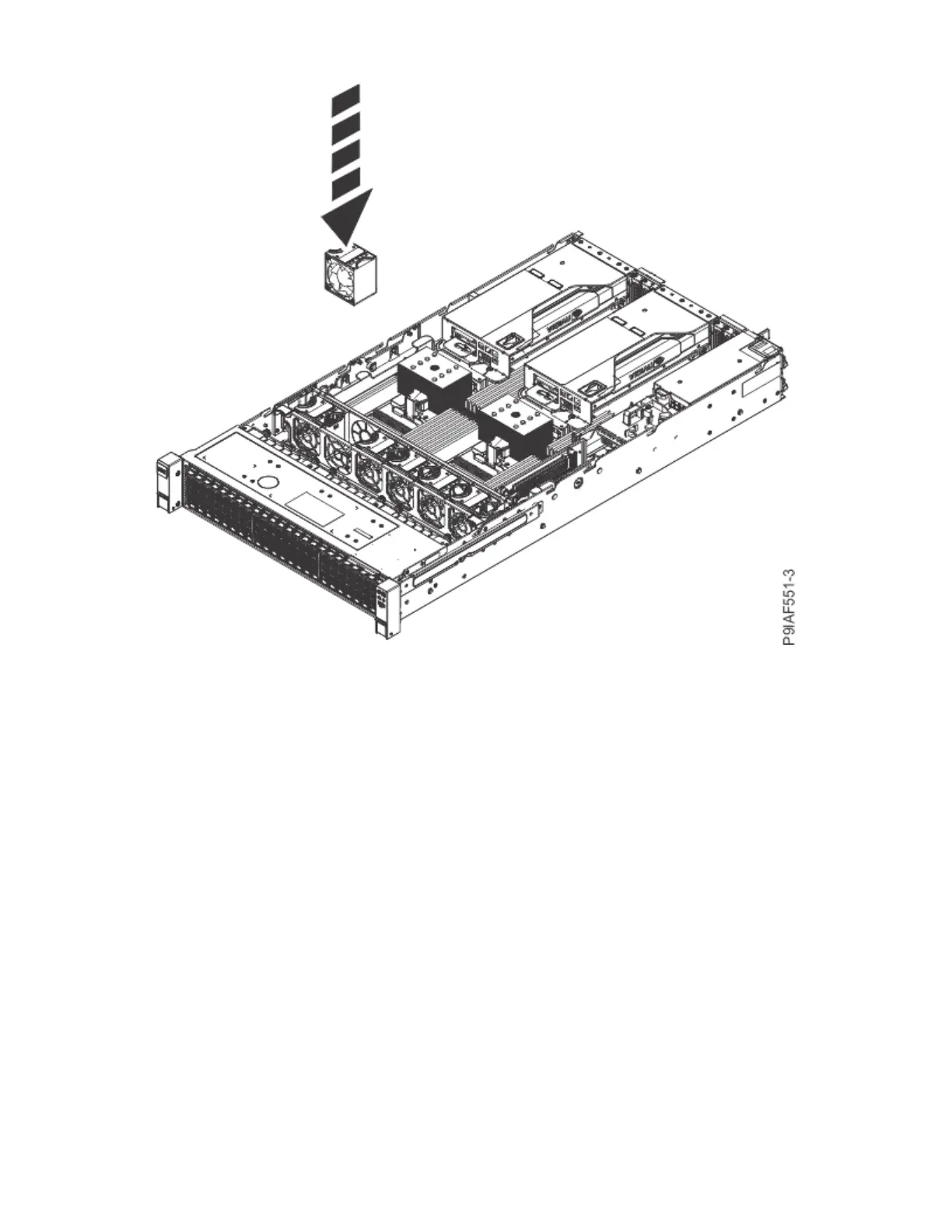

Figure 12. Replacing the fan
7. Replace the service access cover. Place the cover (A) on the system unit such that the alignment pins
on the cover are aligned to the slots on the chassis. Slide the cover to the front of the system until the
blue release latches (B) lock in to place.
