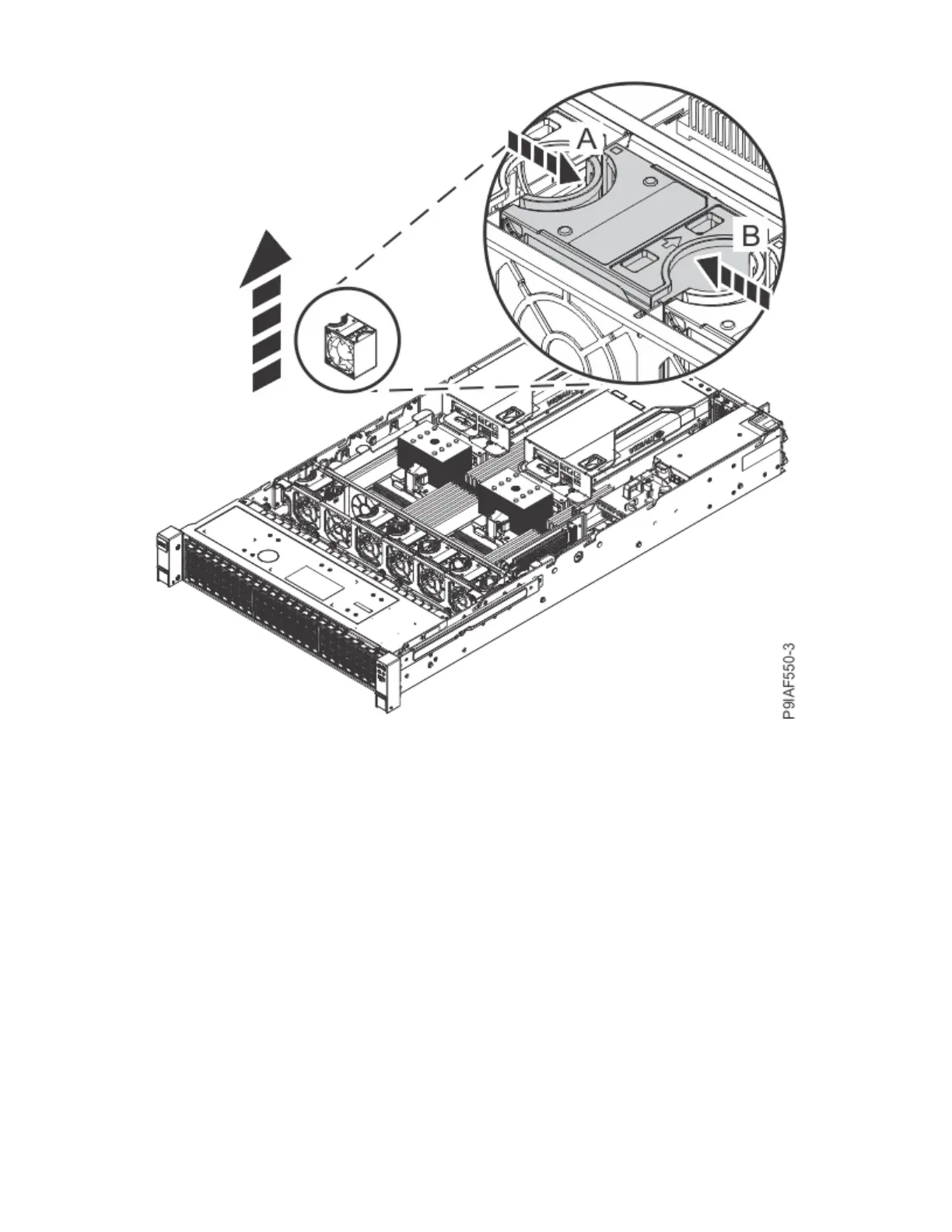

Figure 11. Removing a fan
6. To replace a fan, lower the fan into the system and align the fan with the slots in the fan cage assembly
as shown in the following gure. Press the fan down until it snaps into place.
Removing and replacing parts in the 9183-22X
17
