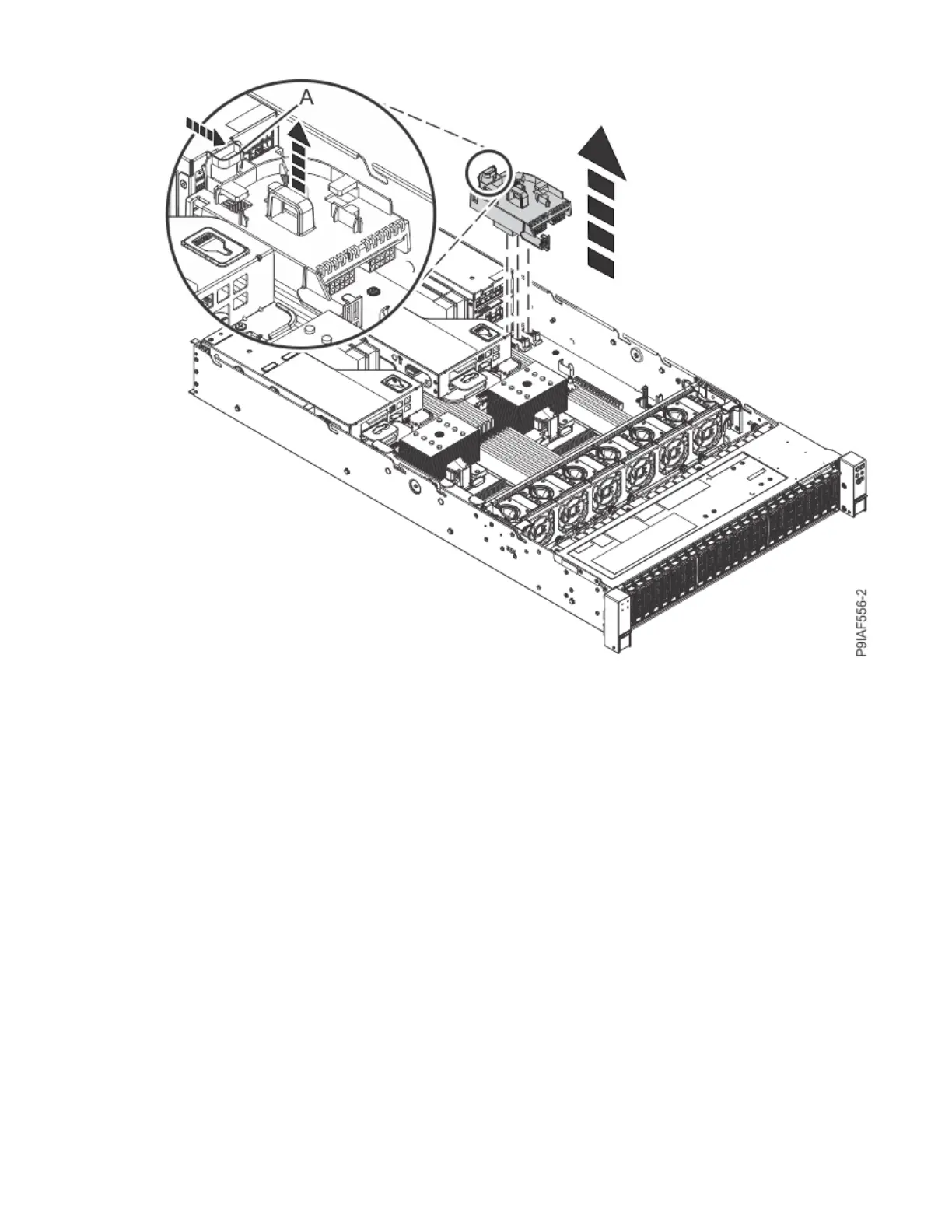

Figure 22. Removing the power distribution board
7. Remove the failed memory module from the slot.
a) Unlock the memory module by pushing the locking tabs away from the memory module, in the
direction shown in the following gure.
The lever action of opening the tabs pushes the memory module out of the slot.
Removing and replacing parts in the 9183-22X
29
