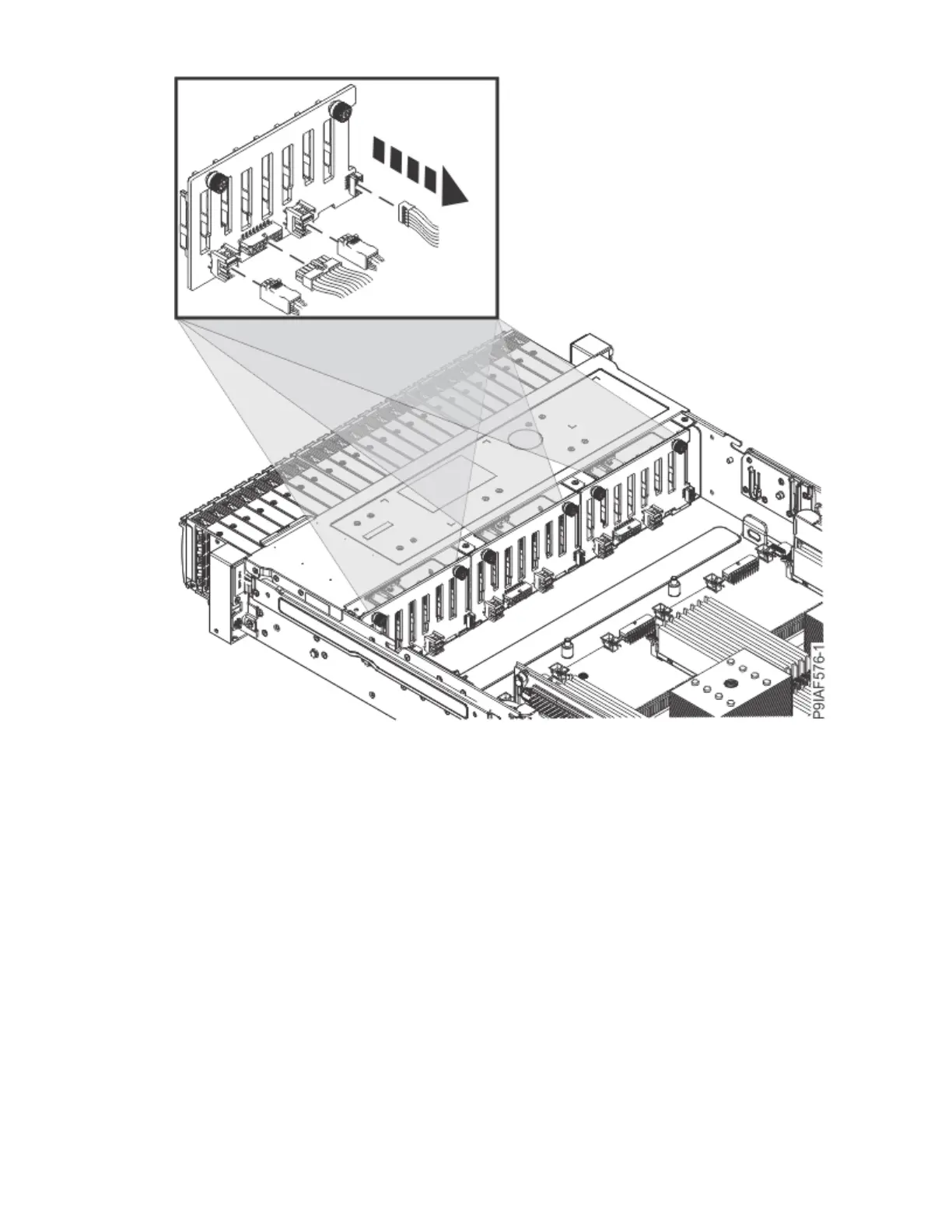

Figure 45. Disconnecting the cables from the drive backplane
4. To remove the PCIe riser from the system, complete the following steps:
a) Label the PCIe riser.
b) Remove the drive cables from the drive cable holders along the sides of the system.
c) Lift the PCIe riser up, out of the system as shown in the following gure.
Removing and replacing parts in the 9183-22X
53
