Introduction
4

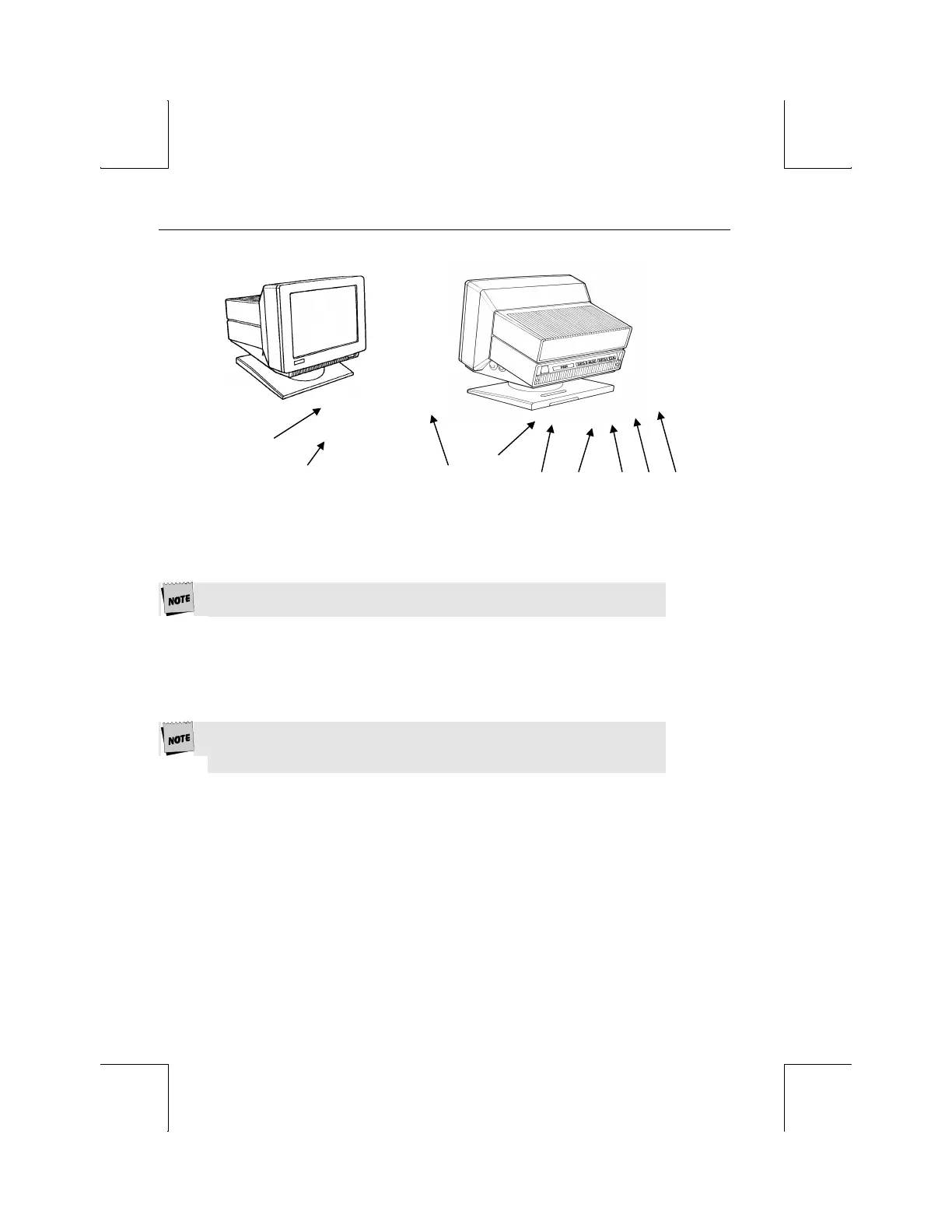

Physical Features
1. Keyboard Connector – Push in the keyboard connector here.
2. Tilt and Swivel Base – Use the tilt and swivel arrangement to adjust the viewing
angle. Grasp the lower corners of the terminal and push up or down, or twist
left or right.
3. Power Switch – “0” is off; “1” is on.
Leave the terminal’s power switch in the off position “0” until
power, keyboard, and communication connections are made.
4. Contrast Dial – Adjust the contrast between characters of different intensities by
rotating the dial.
5. Brightness Dial – Adjust the overall screen brightness by rotating the dial.
6. Power Connection – Plug the female end of the power cord into this connector and
the male end of the cord into a properly grounded receptacle.
The Canadian Standards Association (CSA) recommends that the
power outlet be near the terminal and easily accessible at all
times.
7. Parallel Printer Port – Connect the cable from the IBM* or Centronics* compatible
parallel printer to this port. See the “Installation” chapter for options.
8. Host/Printer Port 2 – Connect the cable from a second host (dual-host mode) or
serial printer here. See the “Installation” chapter for options.
9. Host/Printer Port 1 – Connect the cable from the first host or serial printer here. See
the “Installation” chapter for options.
1
2 3
4
5 6 7 8 9
