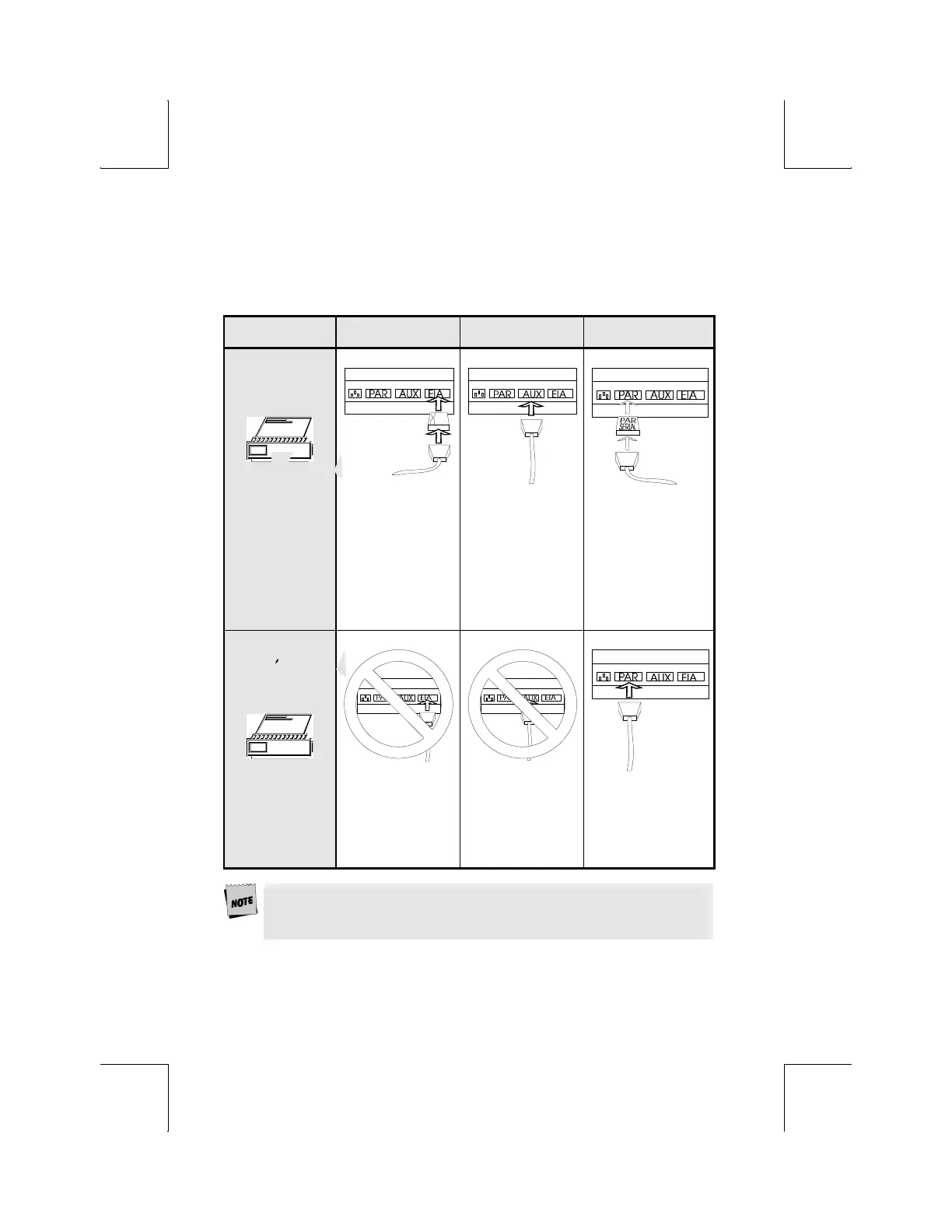

SES1-EIA (DTE) SES2-AUX (DCE) PAR
DTE Serial
Printer**
Connection E:
Connect a null
modem adapter
between the serial
printer cable and
the EIA port.
Connection F:
Connect the serial
printer cable
directly to the AUX
port.
Connection G:
This is an option if
you connect a
parallel-to-serial
converter between
the serial printer
cable and the PAR
port.
Parallel Printer
(Centronics//
IBM)
Not applicable.
Not applicable.
Connection H:
Connect the parallel
printer cable to the
PAR port.
** Most serial printers are configured as DTE devices. The
above connections assume RS-232 configuration for the EIA
port.
