198 IBM NeXtScale System Planning and Implementation Guide
SNMP tab
The FPC module allows the SNMP configuration to send as SNMP traps the
events that happen, as shown in Figure 7-33. The specific event types that are
sent are selected at the Platform Event Filter (PEF) tab. The Global Alerting
Enable option in the PEF tab must be selected so that the SNMP traps are
enabled.

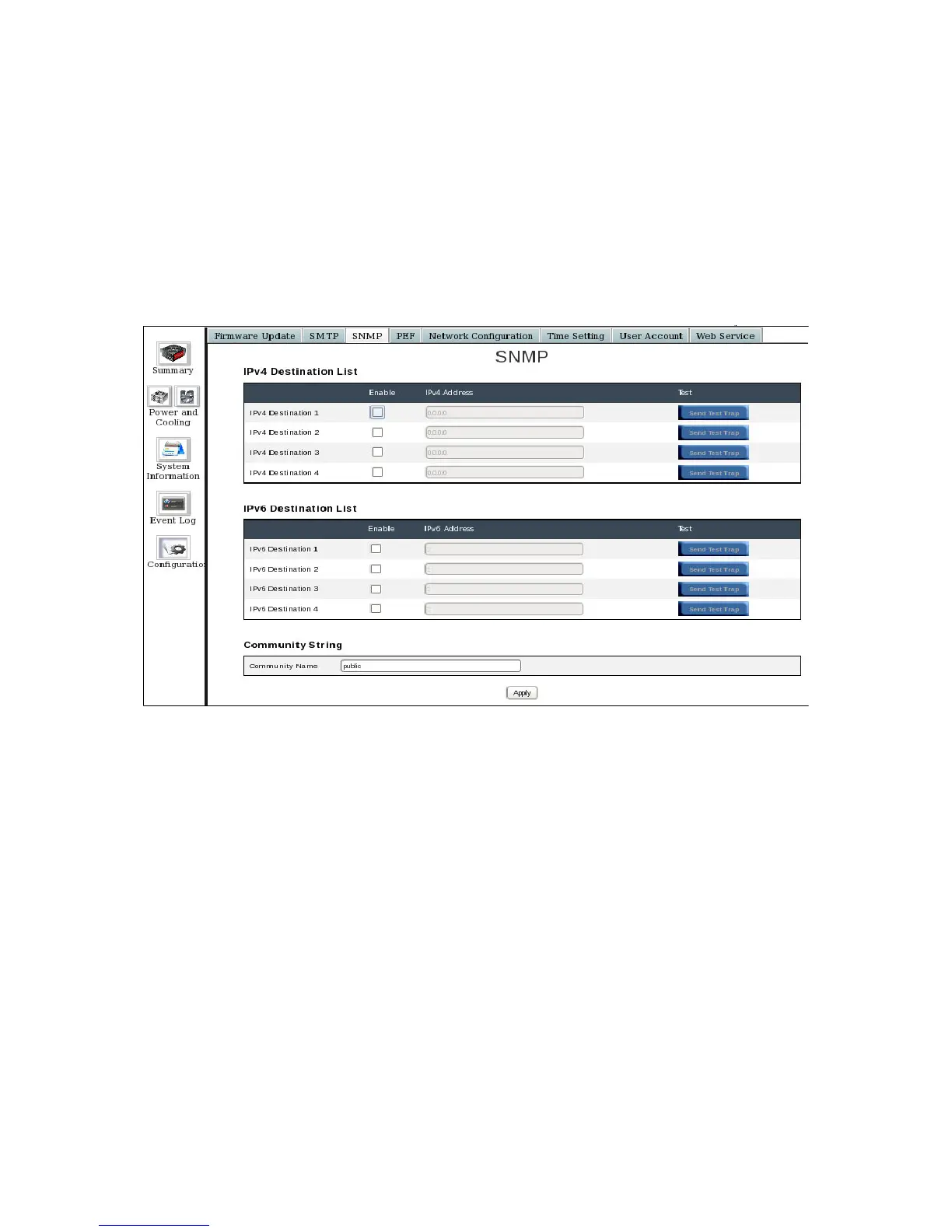

Figure 7-33 SNMP configuration tab
