Chapter 7. Hardware management 199
Platform Filter Events tab
In the PEF tab, you can configure the type of events that are sent as SNMP traps,
as shown in Figure 7-34. You also can enable or disable SNMP and SMTP
alerting by selecting the Global Alerting Enable option.

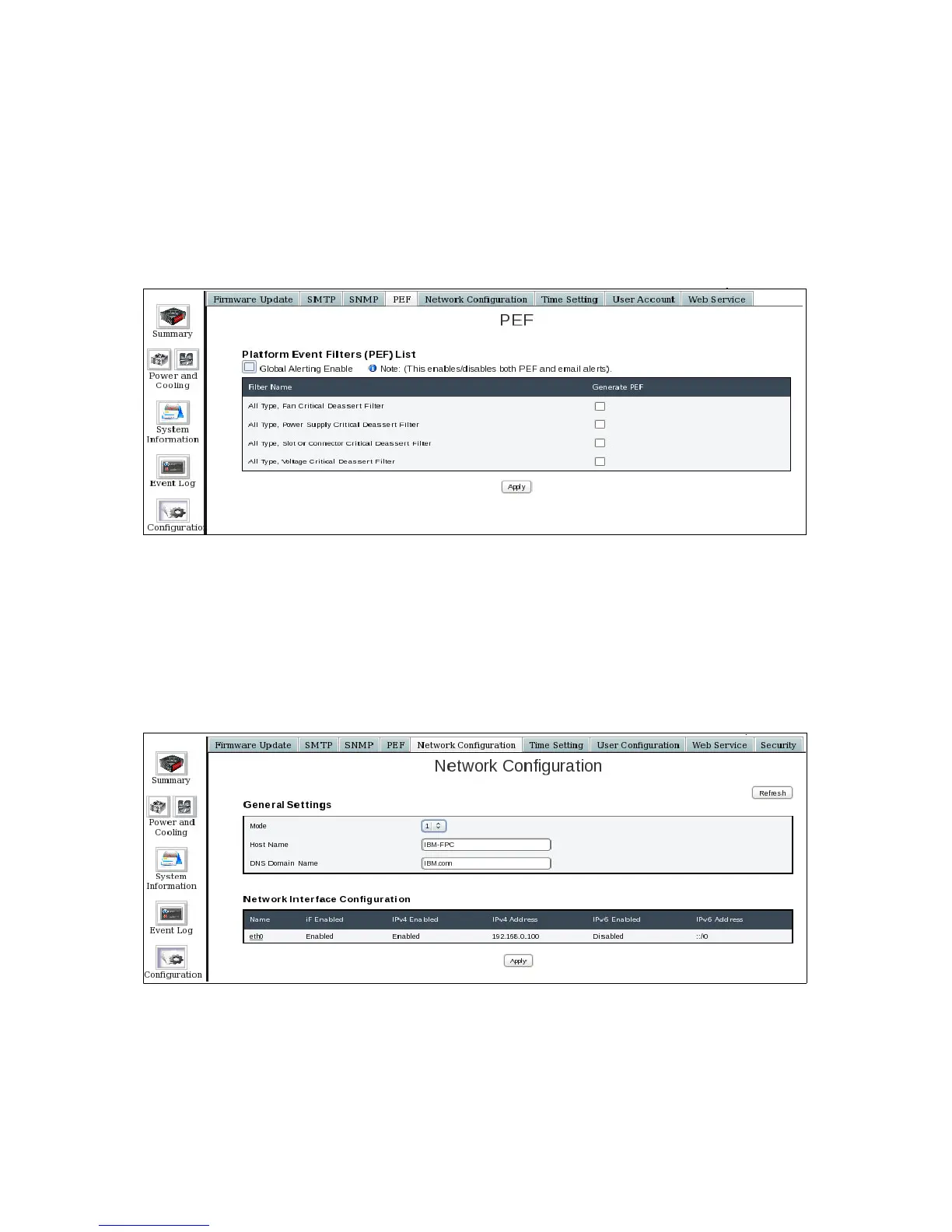

Figure 7-34 Platform Event Filters window
Network Configuration tab
In the Network Configuration tab, users can configure the network setting for the
FPC module, as shown in Figure 7-35. Hostname, static IP address, DHCP and
VLAN configuration can be set.
To access the specific network configuration settings windows, double-click the
current network interface configuration.
Figure 7-35 Network configuration window.
