Table 17. Rear controller LEDs, controls, and connectors
LED Normal Status Problem Status
Service Action Allowed (OK to
Remove)
Off On
Service Action Required
(Fault)
Off On
Cache Active
On - Data is in cache
Off - Caching is turned off. No
data in cache
Not applicable
Diagnostic On - Seven-segment LEDs
indicate diagnostic code
Off - Seven-segment LEDs
indicate enclosure ID
Not applicable
Heartbeat Flashing Off
Host Channel Speed - L1 See Table 18 on page 109.
Host Channel Speed - L2 See Table 18 on page 109.
Ethernet Link Speed On - 1 Gbps
Off - 100 Mbps
Not applicable
Note: The iSCSI ports have the same LEDs as the management Ethernet ports. As
with the Ethernet port LEDs, the iSCSI port LEDs represent link speed and
link activity.
Heartbeat
LED
Diagnostic
LED
Cache
active
LED
Service
action
required
LED
Service
action
allowed
LED
Host channel
speed - L1 LED
Drive channel
port bypass LED
Drive channel
speed LED
Ethernet link
activity LED
Ethernet link
speed LED
Host channel
speed - L2 LED

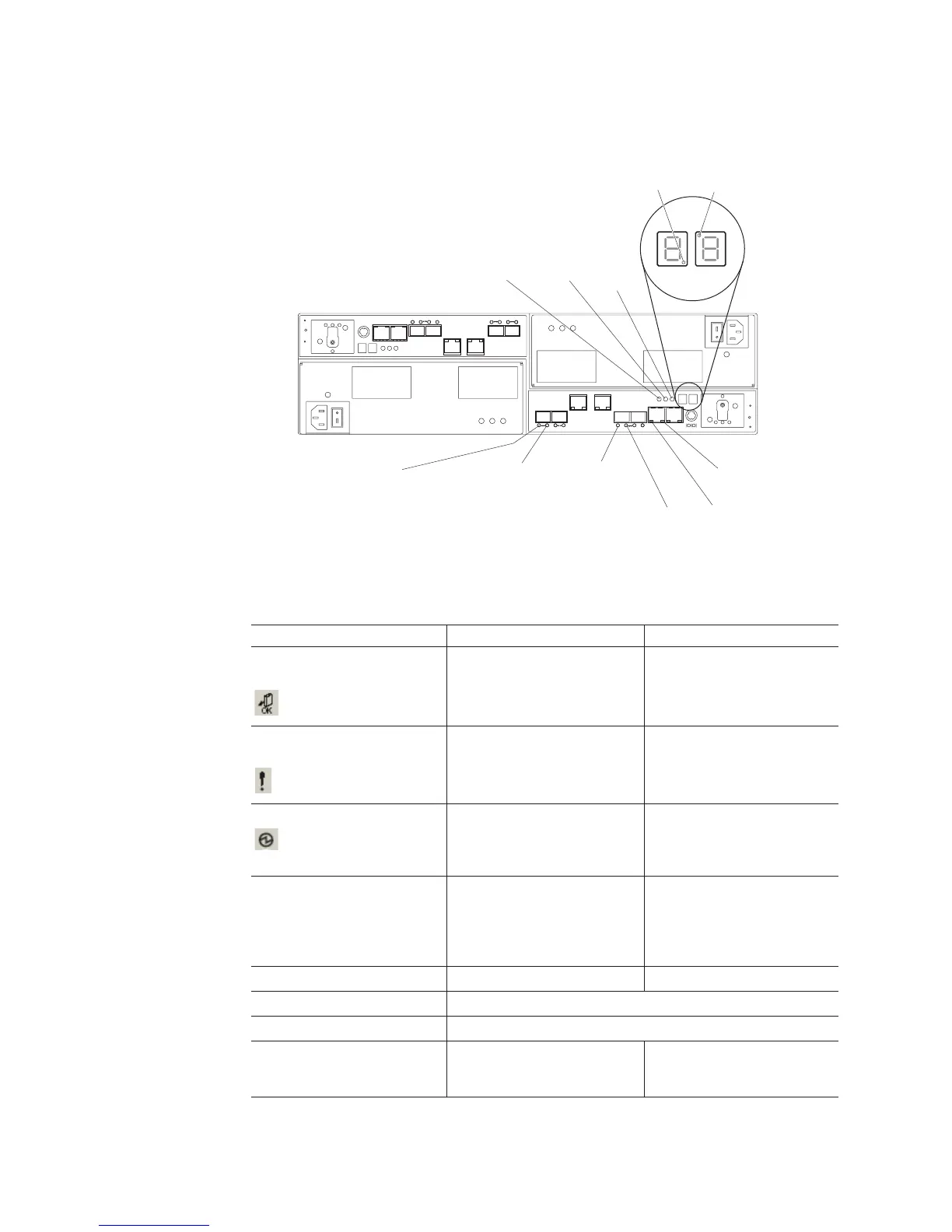

Figure 71. LEDs, controls, and connectors of controllers with two standard Fibre Channel
host expansion channels and two optional iSCSI host expansion channels
108 IBM System Storage DS5020 Storage Subsystem: Installation, User’s, and Maintenance Guide
