Setting up IP addresses for DS5020 storage controllers
After you install DS Storage Manager (as described in the DS Storage Manager
Installation and Support Guide for your host operating system), complete one of the
following procedures to set up IP addresses:
v “Steps for setting up the DHCP/BOOTP server and network”
v “Steps for assigning static TCP/IP addresses to the DS5020 controllers” on page
13
Steps for setting up the DHCP/BOOTP server and network: To complete this
procedure, you must have the following components:
v A DHCP or BOOTP server
v A network management station (NMS) for Simple Network Management Protocol
(SNMP) traps
v A host that is connected to a storage subsystem through a Fibre Channel I/O
path
v A management station that is connected by an Ethernet cable to the storage
subsystem controllers
Controller B
Controller A
Fibre Channel
host channels
Ethernet
ports
Serial
port
Enclosure ID
Dual-ported
drive channel
Enclosure ID
Ethernet
ports
Serial
port
Dual-ported
drive channel
Fibre Channel
host channels

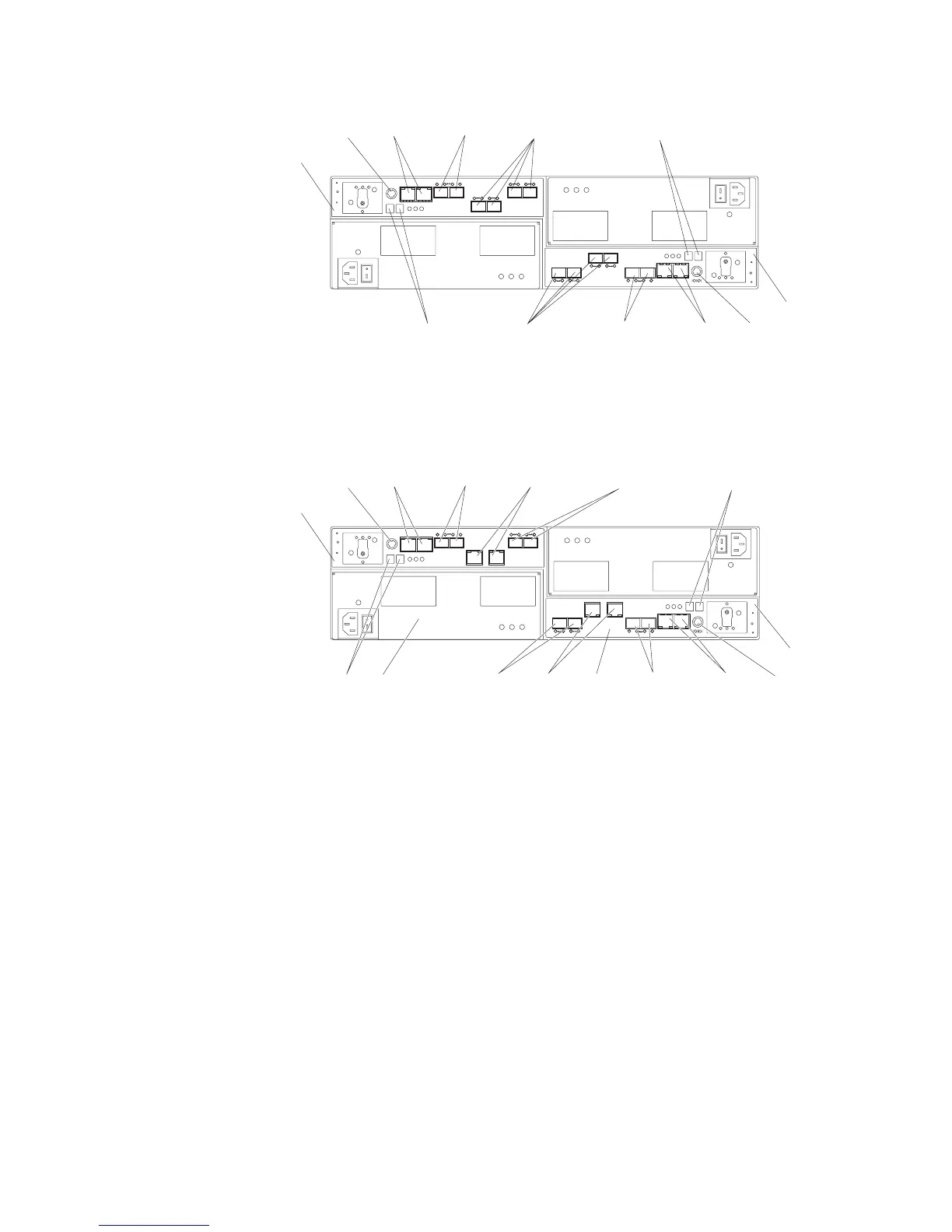

Figure 3. Back view; controllers with two standard and two optional Fibre Channel host
expansion channels
Controller B
Controller A
Fibre Channel
host channels
Ethernet
ports
Serial
port
Enclosure ID
Dual-ported
drive channel
Enclosure ID
Ethernet
ports
Serial
port
Dual-ported
drive
channel
iSCSI
host
channels
Power-fan
canister
Controller
canister
Fibre Channel
host channels
iSCSI
host
channels
Figure 4. Back view; controllers with two standard Fibre Channel host expansion channels
and two optional iSCSI host expansion channels
12 IBM System Storage DS5020 Storage Subsystem: Installation, User’s, and Maintenance Guide
