Weight
The total weight of the storage subsystem depends on the number of components
installed. Table 3 lists the maximum, empty, and shipping weights for the storage
subsystem in different configurations. Table 4 lists the weight of each component.
Table 3. DS5020 weights
Unit
Weight
Maximum
1
Empty
2
Shipping
DS5020 40 kg (88 lb) 16.4 kg (36.1 lb) 52.2 kg (115.0 lb)
1
Chassis with all CRUs and 16 drives.
2
Chassis without CRUs and drives but with front cage frame and midplane.
Table 4. DS5020 component weights
Unit Weight
Drive 0.75 kg (1.65 lb)
Power supply and fan unit 3.60 kg (7.95 lb)
Controller (including cache battery backup
unit)
2.8 kg (6.1 lb)
Battery unit 0.9 kg (2 lb)
Shipping dimensions
Table 5 lists shipping carton dimensions. The height shown includes the height of
the pallet.
Table 5. DS5020 shipping carton dimensions
Height Width Depth
45.7 cm (18.0 in.) 62.6 cm (24.5 in.) 80.7 cm (31.75 in.)
44.70 cm (17.60 in.)
12.95 cm (5.1 in.)
57.15 cm (22.5 in.)
48.26 cm (19.00 in.)

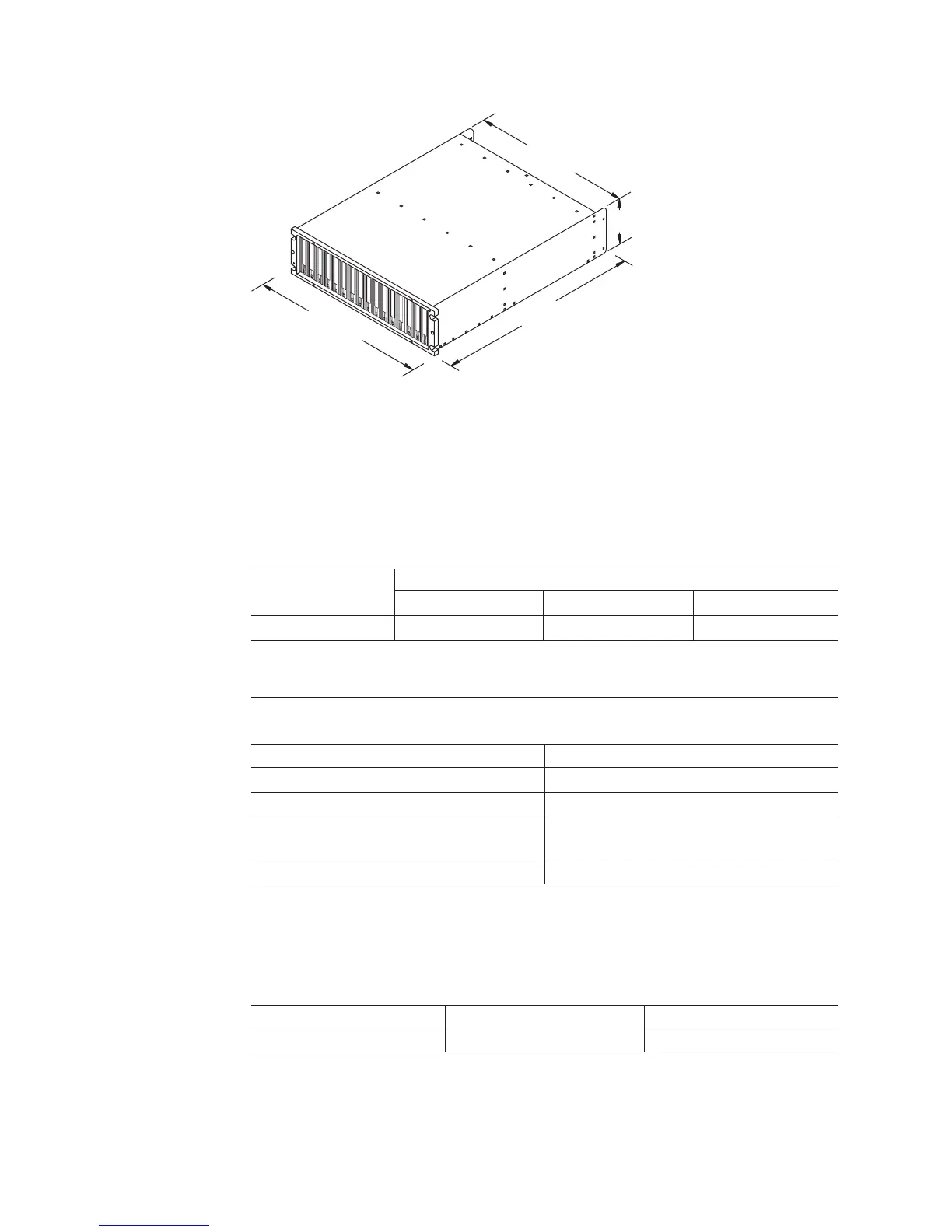

Figure 9. DS5020 dimensions
22 IBM System Storage DS5020 Storage Subsystem: Installation, User’s, and Maintenance Guide
